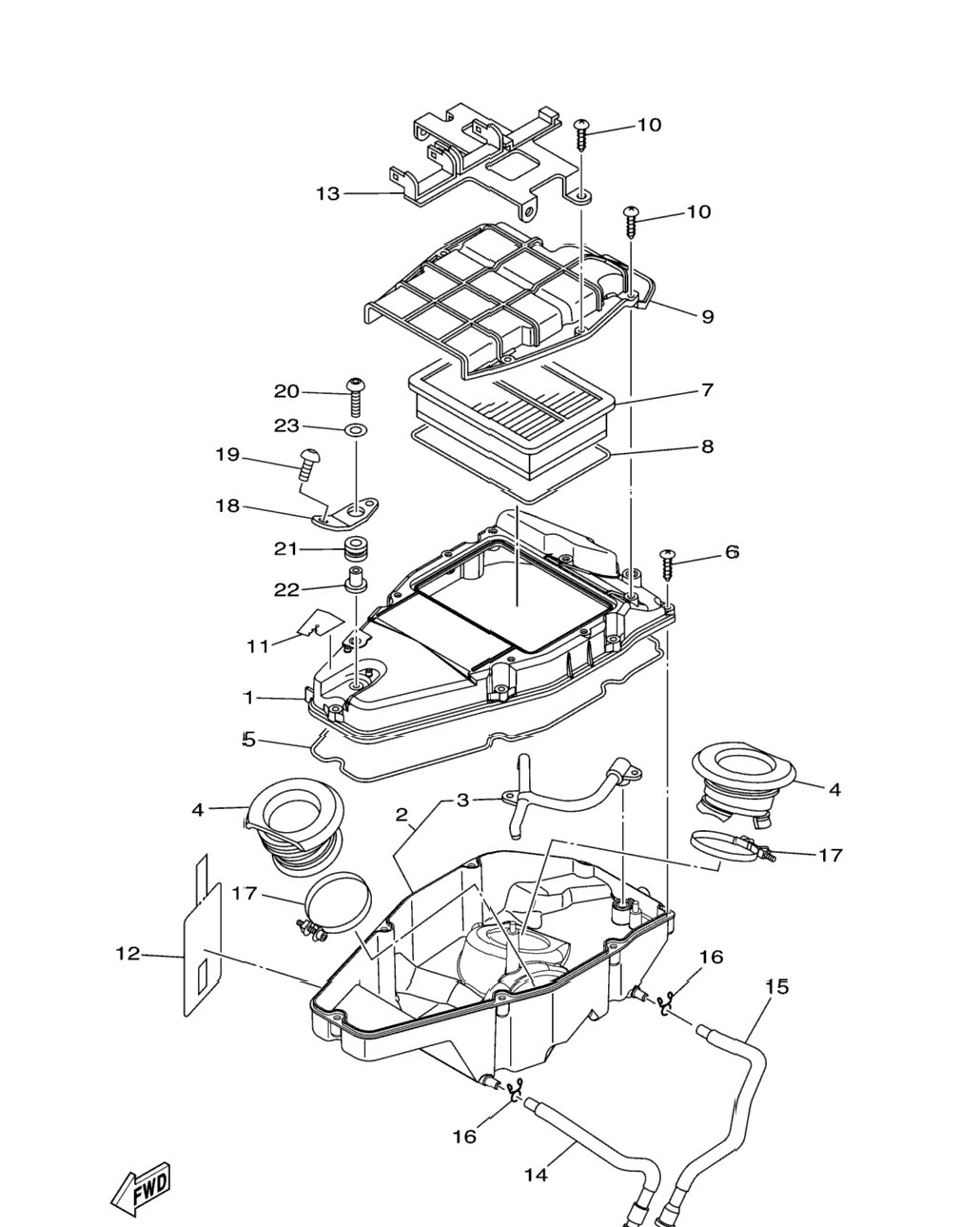

| 1 | 1D7-14431-00-00 | Silencer, Intake 1 | 1 шт. | — | |
|
| 2 | 5C7-W1443-00-00 | Cap, Cleaner Case Sub Assy 1 | 1 шт. | — | |
|
| 3 | 1D7-14419-00-00 | . .Pipe | 1 шт. | — | |
|
| 4 | 1D7-14453-00-00 | Joint, Air Cleaner 1 | 2 шт. | — | |
|
| 5 | 1D7-14457-00-00 | Seal | 1 шт. | — | |
|
| 6 | 97707-50030-00 | Screw, Tapping | 7 шт. | — | |
|
| 7 | 1D7-14461-00-00 | Element, Air Cleaner 2 | 0 шт. | — | |
|
| 8 | 1D7-14452-00-00 | Seal | 1 шт. | — | |
|
| 9 | 1D7-14412-00-00 | Cap, Cleaner Case 1 | 1 шт. | — | |
|
| 10 | 97707-50020-00 | Screw, Tapping | 7 шт. | — | |
|
| 11 | 1D7-14425-00-00 | Damper 1 | 1 шт. | — | |
|
| 12 | 1D7-14417-00-00 | Cover 1 | 1 шт. | — | |
|
| 13 | 5C7-83955-00-00 | Bracket 1 | 1 шт. | — | |
|
| 14 | 5C7-1443E-00-00 | Pipe, Drain | 1 шт. | — | |
|
| 15 | 5C7-1443G-00-00 | Pipe, Drain 2 | 1 шт. | — | |
|
| 16 | 90467-09103-00 | .Clip | 2 шт. | — | |
|
| 17 | 90450-56005-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 18 | 5C7-14414-00-00 | Stay 2 | 1 шт. | — | |
|
| 19 | 92012-08016-00 | Bolt, Button Head | 1 шт. | — | |
|
| 20 | 92012-06025-00 | Bolt, Button Head | 1 шт. | — | |
|
| 21 | 90480-14023-00 | Grommet | 1 шт. | — | |
|
| 22 | 90387-07391-00 | .Collar | 1 шт. | — | |
|
| 23 | 90201-064R0-00 | Washer, Plate | 1 шт. | — | |
|
