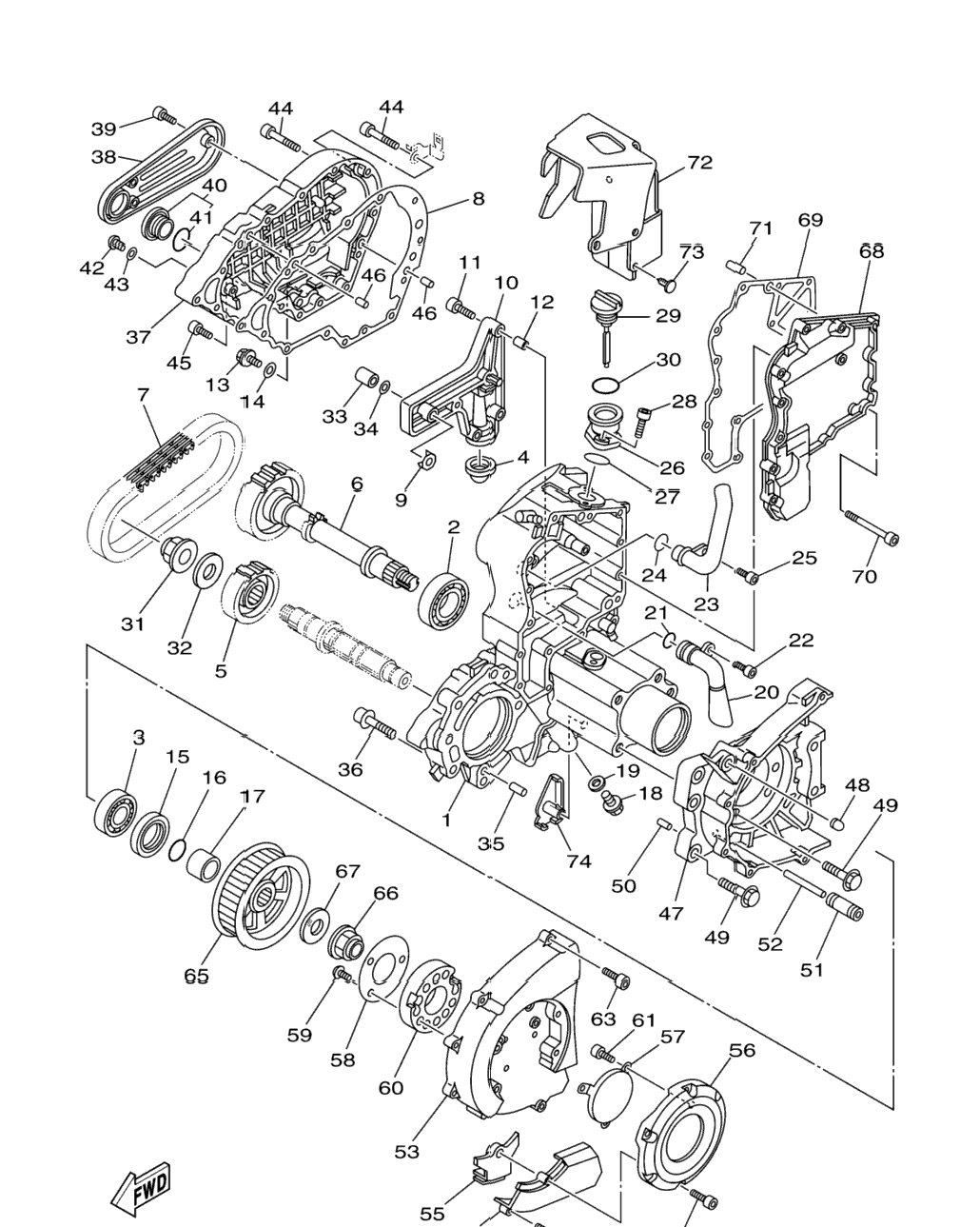

| 1 | 1D7-17541-00-00 | Case, Transfer 1 | 1 шт. | — | |
|
| 2 | 93306-20801-00 | Bearing | 1 шт. | — | |
|
| 3 | 93306-28204-00 | Bearing | 1 шт. | — | |
|
| 4 | 4WM-13286-00-00 | Cleaner | 1 шт. | — | |
|
| 5 | 1D7-17682-00-00 | Sprocket, Chain Drive | 1 шт. | — | |
|
| 6 | 1D7-1755A-00-00 | Middle Driven Shaft Assy | 1 шт. | — | |
|
| 7 | 4WM-16139-00-00 | Chain, Primary | 1 шт. | — | |
|
| 8 | 1D7-17929-00-00 | Gasket 1 | 1 шт. | — | |
|
| 9 | 1D7-17931-00-00 | Gasket 2 | 1 шт. | — | |
|
| 10 | 1D7-13100-00-00 | Oil Pump Assy | 1 шт. | — | |
|
| 11 | 91314-06035-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 12 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 13 | 90149-08031-00 | Screw | 1 шт. | — | |
|
| 14 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 15 | 93102-42008-00 | Oil Seal | 1 шт. | — | |
|
| 16 | 93210-32001-00 | O-Ring | 1 шт. | — | |
|
| 17 | 90387-32005-00 | Collar | 1 шт. | — | |
|
| 18 | 90340-14132-00 | .Plug, Straight Screw | 1 шт. | — | |
|
| 19 | 214-11198-01-00 | .Gasket | 1 шт. | — | |
|
| 20 | 1D7-13421-00-00 | Strainer 2 | 1 шт. | — | |
|
| 21 | 93210-21631-00 | O-Ring | 1 шт. | — | |
|
| 22 | 90110-06161-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 23 | 1D7-13582-00-00 | Pipe | 1 шт. | — | |
|
| 24 | 93210-21631-00 | O-Ring | 1 шт. | — | |
|
| 25 | 90110-06161-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 26 | 1D7-13132-00-00 | Joint | 1 шт. | — | |
|
| 27 | 93210-40351-00 | O-Ring | 1 шт. | — | |
|
| 28 | 90110-06179-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 29 | 5PX-15362-10-00 | Plug, Oil Level | 1 шт. | — | |
|
| 30 | 93210-35512-00 | O-Ring | 1 шт. | — | |
|
| 31 | 90179-22016-00 | Nut | 1 шт. | — | |
|
| 32 | 90208-22004-00 | .Washer, Conical Spring | 1 шт. | — | |
|
| 33 | 90179-10013-00 | Nut | 1 шт. | — | |
|
| 34 | 90430-10004-00 | Gasket | 1 шт. | — | |
|
| 35 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 36 | 90110-10013-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 37 | 1D7-15779-10-00 | Cover | 1 шт. | — | |
|
| 38 | 1D7-17821-10-00 | Cover, Housing | 1 шт. | — | |
|
| 39 | 90110-05013-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 40 | 90340-20005-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 41 | 1D7-176F4-09-00 | . .O-Ring | 1 шт. | — | |
|
| 42 | 92014-06010-00 | Bolt, Button Head | 1 шт. | — | |
|
| 43 | 90430-06016-00 | Gasket | 1 шт. | — | |
|
| 44 | 91314-06050-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 45 | 91314-06030-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 46 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 47 | 1D7-17613-00-00 | Stay | 1 шт. | — | |
|
| 48 | 5PX-17654-00-00 | Spacer 1 | 1 шт. | — | |
|
| 49 | 95814-12050-00 | Bolt, Flange | 8 шт. | — | |
|
| 50 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 51 | 4WM-17653-00-00 | Slider | 2 шт. | — | |
|
| 52 | 93606-76002-00 | Pin, Dowel | 2 шт. | — | |
|
| 53 | 1D7-17076-10-00 | Cover | 1 шт. | — | |
|
| 54 | 1D7-17662-10-00 | Plate, Stay | 1 шт. | — | |
|
| 55 | 1D7-15486-00-00 | Grommet | 1 шт. | — | |
|
| 56 | 1D7-17665-10-00 | Plate 1 | 1 шт. | — | |
|
| 57 | 1D7-17675-10-00 | Plate 2 | 1 шт. | — | |
|
| 58 | 1D7-17672-00-00 | Plate, Stay | 1 шт. | — | |
|
| 59 | 90149-06082-00 | Screw | 3 шт. | — | |
|
| 60 | 1D7-17655-00-00 | Damper, Slider | 1 шт. | — | |
|
| 61 | 91314-05010-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 62 | 91314-06025-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 63 | 91314-06030-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 64 | 91314-06050-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 65 | 1D7-17651-00-00 | Pulley, Belt | 1 шт. | — | |
|
| 66 | 90179-22016-00 | Nut | 1 шт. | — | |
|
| 67 | 90208-22004-00 | .Washer, Conical Spring | 1 шт. | — | |
|
| 68 | 1D7-17538-00-00 | Cap, Housing | 1 шт. | — | |
|
| 69 | 1D7-17933-00-00 | Gasket, 4 | 1 шт. | — | |
|
| 70 | 91312-06025-00 | Bolt, Hexagon Socket Head | 15 шт. | — | |
|
| 71 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 72 | 5C7-1763A-00-00 | Plate, Cap | 1 шт. | — | |
|
| 73 | 90269-07005-00 | Rivet | 3 шт. | — | |
|
| 74 | 5PX-17446-00-00 | Plate | 1 шт. | — | |
|
