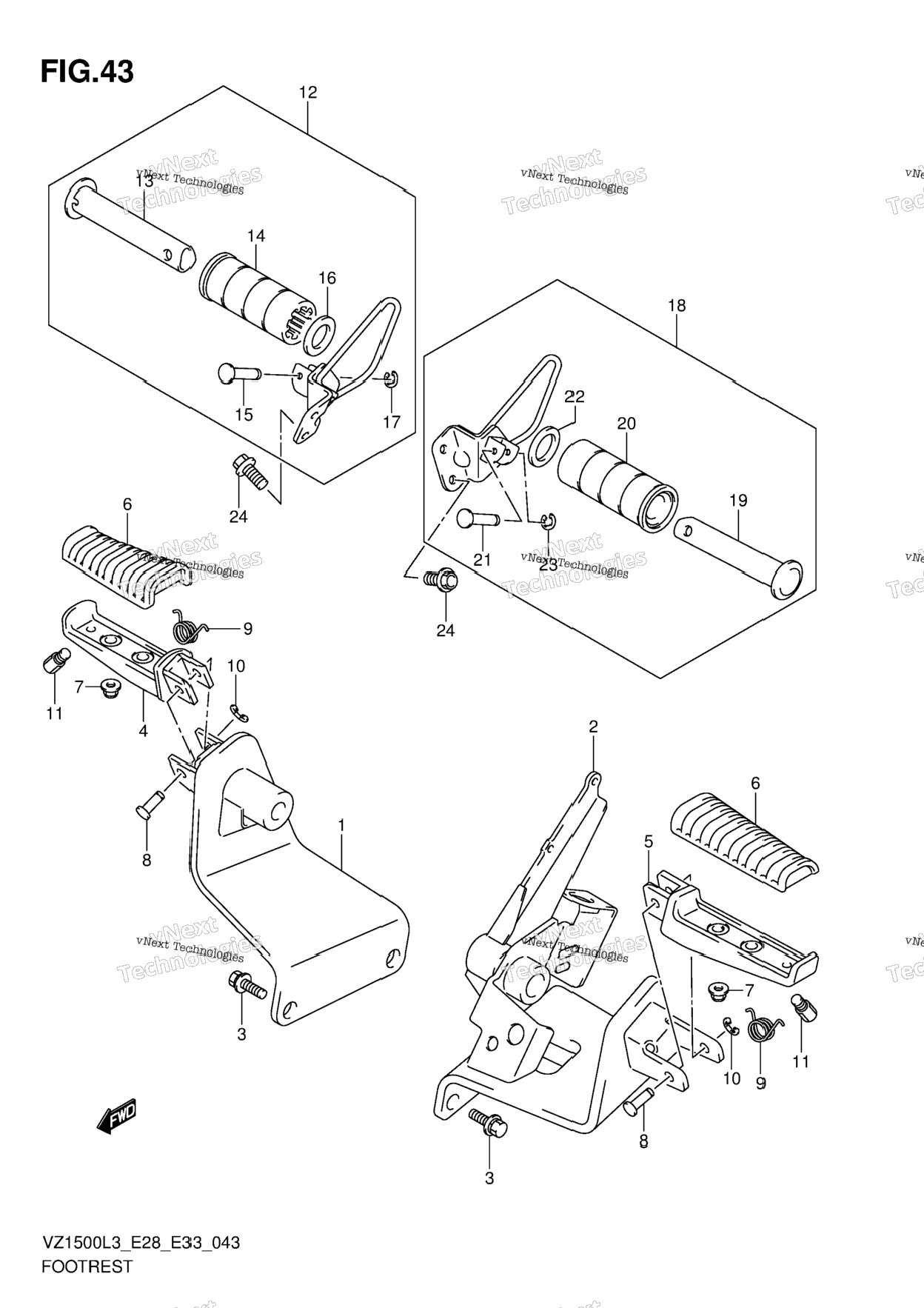

| 1 | 43510-40H00 | BRACKET, FRONT FOOTREST RH | 1 шт. | — | |
|
| 2 | 43520-40H00 | BRACKET, FRONT FOOTREST LH | 1 шт. | — | |
|
| 3 | 09103-10378 | BOLT (10X25) | 4 шт. | — | |
|
| 4 | 43531-48G00 | BAR, FRONT FOOTREST RH | 1 шт. | — | |
|
| 5 | 43541-48G00 | BAR, FRONT FOOTREST LH | 1 шт. | — | |
|
| 6 | 43550-48G00 | RUBBER | 2 шт. | — | |
|
| 7 | 08319-2106A | .NUT | 4 шт. | — | |
|
| 8 | 09208-08010 | PIN (8X33.2) | 2 шт. | — | |
|
| 9 | 09448-14047 | SPRING | 2 шт. | — | |
|
| 10 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 11 | 43576-07D01 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 12 | 43600-40H50 | FOOTREST, PILLION RH | 1 шт. | — | |
|
| 18 | 43700-40H50 | FOOTREST, PILLION LH | 0 шт. | — | |
|
| 19 | 43610-39G00 | BAR | 1 шт. | — | |
|
| 19 | 43610-39G00 | BAR | 1 шт. | — | |
|
| 20 | 43612-39G00 | RUBBER | 1 шт. | — | |
|
| 20 | 43612-39G00 | RUBBER | 1 шт. | — | |
|
| 21 | 09208-06007 | PIN | 1 шт. | — | |
|
| 21 | 09208-06007 | PIN | 1 шт. | — | |
|
| 22 | 09160-19024 | WASHER (19.5X32X2) | 1 шт. | — | |
|
| 22 | 09160-19024 | WASHER (19.5X32X2) | 1 шт. | — | |
|
| 23 | 08332-1104A | E-RING | 1 шт. | — | |
|
| 23 | 08332-1104A | E-RING | 1 шт. | — | |
|
| 24 | 09103-08412 | BOLT (8X16) | 4 шт. | — | |
|
