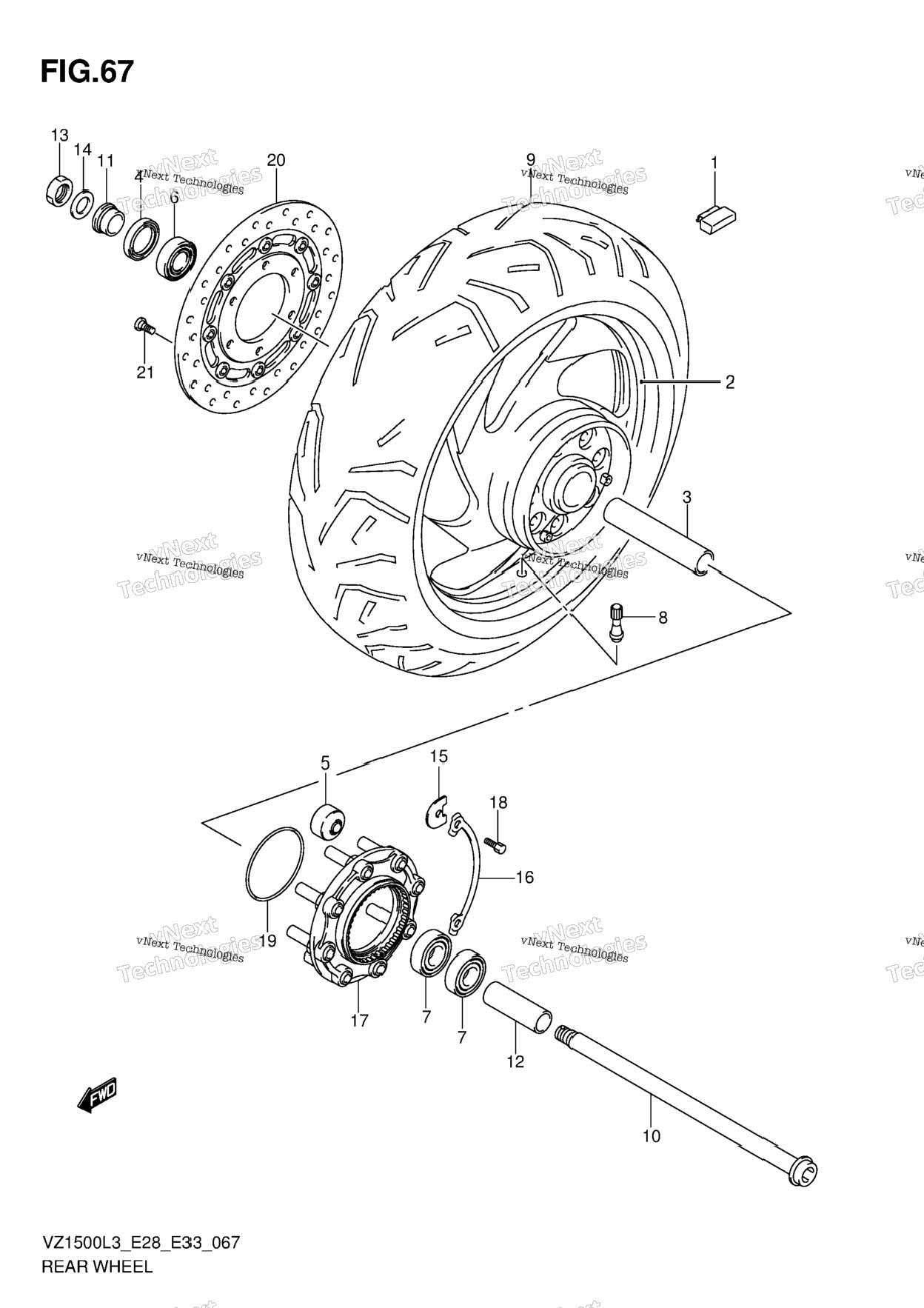

| 1 | 55411-22H00 | BALANCER,WHEEL (10G) 10G | 1 шт. | — | |
|
| 2 | 55412-22H00 | BALANCER,WHEEL (20G) 20G | 1 шт. | — | |
|
| 3 | 55413-22H00 | BALANCER,WHEEL (30G) 30G | 1 шт. | — | |
|
| 4 | 64111-40H00-20H | WHEEL, REAR (17M/CXMT6.00) (SILVER) | 1 шт. | — | |
|
| 5 | 64731-40H00 | SPACER, REAR WHEEL BEARING | 1 шт. | — | |
|
| 6 | 09285-32004 | .SEAL,OIL (32X52X7) | 1 шт. | — | |
|
| 7 | 09319-12019 | BUSH | 8 шт. | — | |
|
| 8 | 09262-25072 | BEARING (25X52X15) RH | 1 шт. | — | |
|
| 9 | 08143-62057 | BEARING LH | 2 шт. | — | |
|
| 10 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 11 | 65110-40H00 | TIRE, REAR (200/50ZR17M/C) | 0 шт. | — | |
|
| 12 | 64711-48G00 | AXLE, REAR | 1 шт. | — | |
|
| 13 | 64741-48G00 | SPACER, REAR AXLE RH | 1 шт. | — | |
|
| 14 | 64772-48G00 | SPACER, REAR AXLE LH | 1 шт. | — | |
|
| 15 | 09159-22007 | NUT | 1 шт. | — | |
|
| 16 | 09160-22081 | WASHER (22X35X2) | 1 шт. | — | |
|
| 17 | 64677-48G10 | WASHER, THRUST | 4 шт. | — | |
|
| 18 | 64679-48G00 | WASHER, REAR HUB DRIVEN | 2 шт. | — | |
|
| 19 | 64680-48G00 | JOINT ASSY, REAR HUB DR | 1 шт. | — | |
|
| 20 | 09119-06049 | BOLT (6X16) | 4 шт. | — | |
|
| 21 | 09280-80001 | O-RING (D:2.4,ID:79.8) | 1 шт. | — | |
|
| 22 | 69210-10F40 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 23 | 09106-08160 | BOLT (8X21) | 6 шт. | — | |
|
