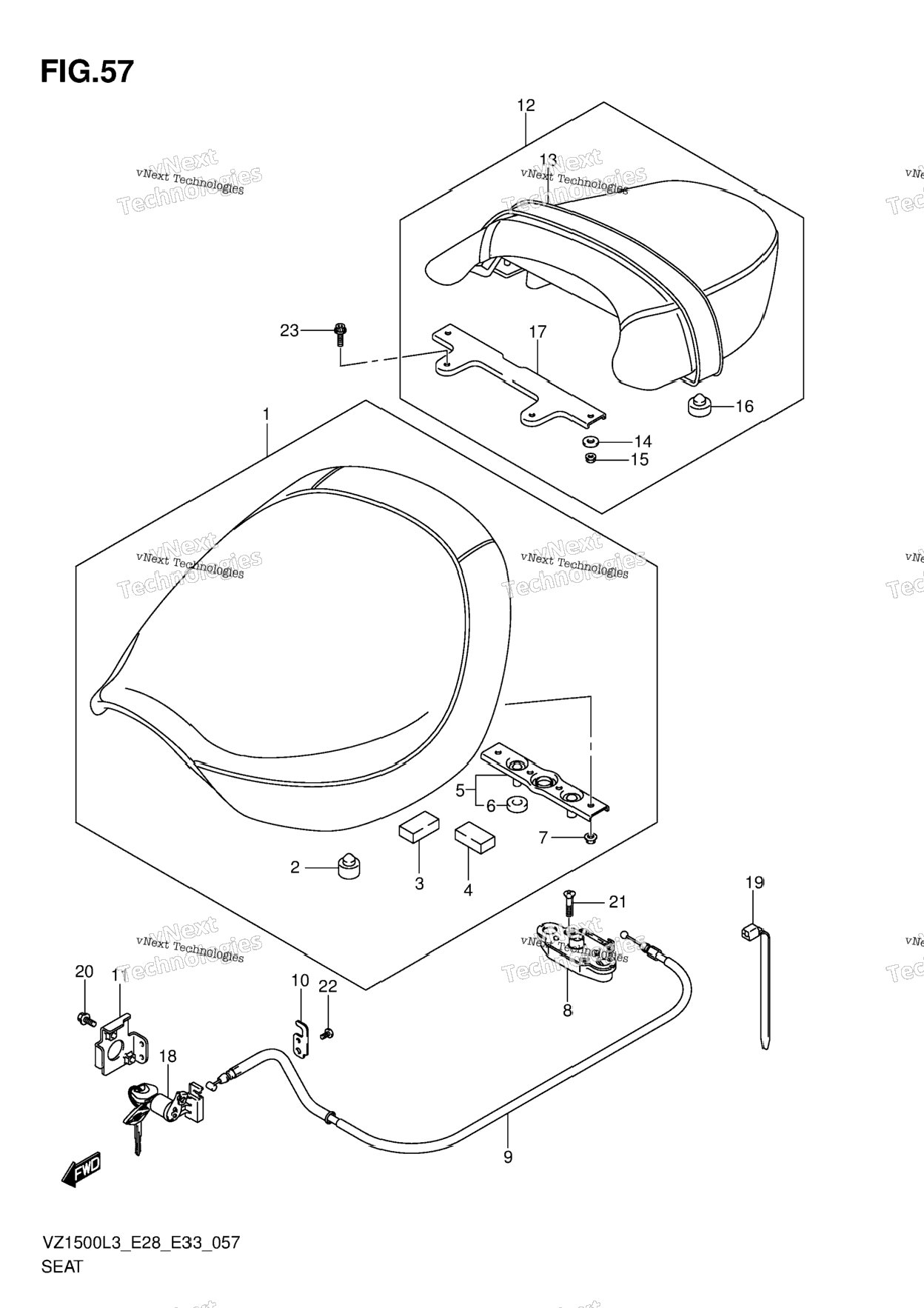

| 1 | 45100-40H10-DCG | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 09321-10011 | CUSHION | 7 шт. | — | |
|
| 3 | 45148-40H00 | CUSHION | 0 шт. | — | |
|
| 4 | 45149-40H00 | CUSHION | 0 шт. | — | |
|
| 5 | 45290-42F02 | STRIKER | 1 шт. | — | |
|
| 6 | 45213-42F00 | CUSHION | 2 шт. | — | |
|
| 7 | 08319-3106A | NUT | 2 шт. | — | |
|
| 8 | 45220-47H00 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 9 | 45280-40H00 | CABLE, SEAT LOCK | 0 шт. | — | |
|
| 10 | 45288-40H00 | PLATE, SEAT LOCK | 1 шт. | — | |
|
| 11 | 45289-40H00 | BRACKET, SEAT LOCK | 0 шт. | — | |
|
| 12 | 45300-40H00-48H | SEAT ASSY, PILLION (BLACK) | 1 шт. | — | |
|
| 13 | 45180-40H00-48H | BAND ASSY (BLACK) | 0 шт. | — | |
|
| 14 | 09160-06088 | WASHER (6.5X20X1.6) | 2 шт. | — | |
|
| 15 | 08319-3106A | NUT | 2 шт. | — | |
|
| 16 | 09321-10002 | CUSHION (11.5X22X20) | 4 шт. | — | |
|
| 17 | 45315-40H00 | BRACKET | 0 шт. | — | |
|
| 18 | 95700-31C00 | LOCK ASSY, SEAT | 0 шт. | — | |
|
| 19 | 09407-19401 | CLAMP (L:190) | 1 шт. | — | |
|
| 20 | 01547-0616A | BOLT | 2 шт. | — | |
|
| 21 | 02122-0630A | SCREW | 2 шт. | — | |
|
| 22 | 02142-0512A | SCREW | 2 шт. | — | |
|
| 23 | 07120-0616A | BOLT | 2 шт. | — | |
|
