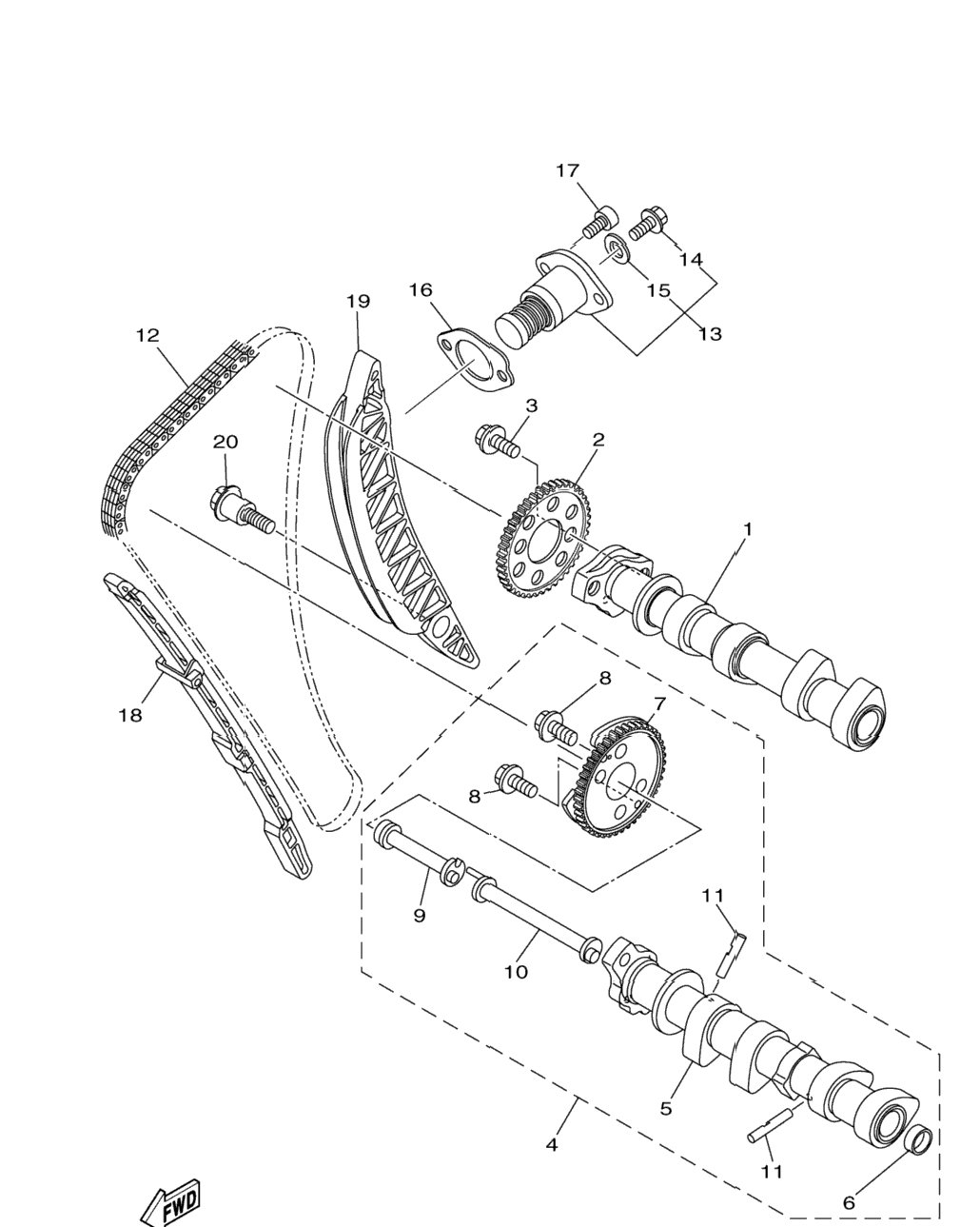

| 1 | 1WS-12170-00-00 | Camshaft Assy 1 | 1 шт. | — | |
|
| 2 | 2C0-12176-00-00 | Sprocket, Cam Chain | 1 шт. | — | |
|
| 4 | 1WS-12180-00-00 | Camshaft Assy 2 | 1 шт. | — | |
|
| 5 | 1WS-12181-00-00 | . .Camshaft 2 | 1 шт. | — | |
|
| 6 | 90331-16001-00 | . .Plug | 1 шт. | — | |
|
| 7 | 1WS-12280-00-00 | . .Decompression Assy | 1 шт. | — | |
|
| 8 | 90105-07006-00 | . Bolt, Flange | 2 шт. | — | |
|
| 8 | 90105-07006-00 | Bolt, Flange | 2 шт. | — | |
|
| 9 | 1WS-12247-00-00 | . .Shaft, Tensioner | 1 шт. | — | |
|
| 10 | 1WS-12257-00-00 | . .Shaft 2 | 1 шт. | — | |
|
| 11 | 1PD-12288-00-00 | . .Cam, Decompression | 2 шт. | — | |
|
| 12 | 94591-61134-00 | Chain (T098xrh2015-134P) | 1 шт. | — | |
|
| 13 | 1WS-12210-02-00 | Tensioner Assy, Cam Chain | 1 шт. | — | |
|
| 14 | 5EL-12228-00-00 | . .Bolt | 1 шт. | — | |
|
| 15 | 5SL-12214-00-00 | . .Gasket | 1 шт. | — | |
|
| 16 | 1WS-12213-00-00 | Gasket, Tensioner Case | 1 шт. | — | |
|
| 17 | 90110-06396-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 18 | 1WS-12251-00-00 | Damper, Chain 1 | 1 шт. | — | |
|
| 19 | 1WS-12252-00-00 | Damper, Chain 2 | 1 шт. | — | |
|
| 20 | 90109-06295-00 | Bolt | 1 шт. | — | |
|
