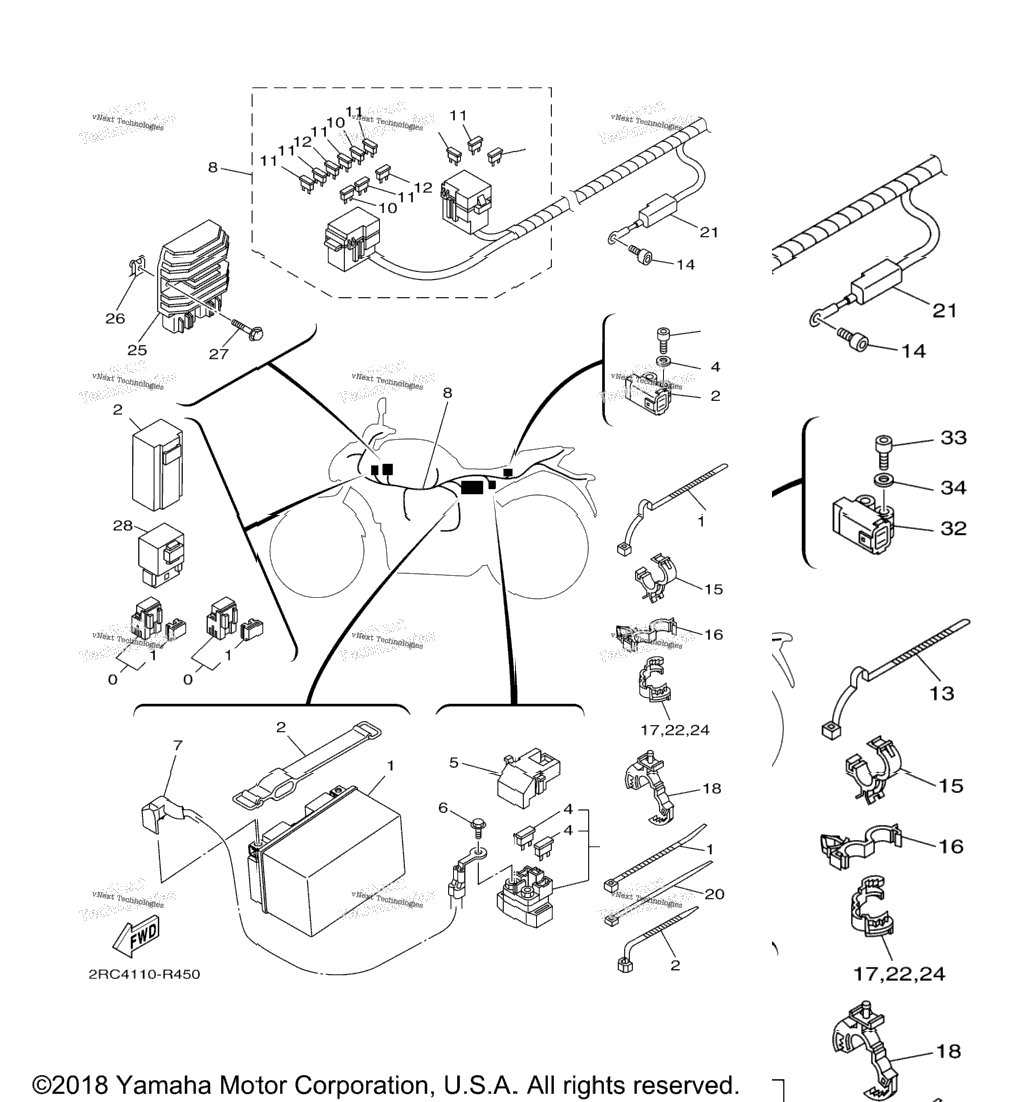

| 1 | 5VY-82100-00-00 | Battery Assy (Yuasa Ytz10s) | 1 шт. | — | |
|
| 2 | 1WS-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 3 | 1XC-81940-00-00 | Starter Relay Assy (Rc19-089B) | 1 шт. | — | |
|
| 4 | 1AE-82151-00-00 | . .Fuse (30A-Bl) | 2 шт. | — | |
|
| 5 | 5SL-82119-10-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 6 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 7 | 1WS-82115-01-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 8 | 2RC-82590-01-00 | Wire Harness Assy | 1 шт. | — | |
|
| 9 | 5JJ-82151-80-00 | . .Fuse (2A-Bl) | 2 шт. | — | |
|
| 10 | 5JJ-82151-00-00 | . .Fuse (7.5A-Bl) | 2 шт. | — | |
|
| 11 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 6 шт. | — | |
|
| 12 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 2 шт. | — | |
|
| 13 | 90464-07M40-00 | Clamp | 1 шт. | — | |
|
| 14 | 91380-06012-00 | Bolt | 1 шт. | — | |
|
| 15 | 90464-20191-00 | Clamp | 1 шт. | — | |
|
| 16 | 90464-18007-00 | Clamp | 1 шт. | — | |
|
| 17 | 90464-14010-00 | Clamp | 2 шт. | — | |
|
| 18 | 90464-18011-00 | Clamp | 1 шт. | — | |
|
| 19 | 1UA-82591-00-00 | Band | 2 шт. | — | |
|
| 20 | 90464-65001-00 | Clamp | 1 шт. | — | |
|
| 21 | 1WS-81916-00-00 | Cover, Terminal | 1 шт. | — | |
|
| 22 | 90464-14010-00 | Clamp | 1 шт. | — | |
|
| 23 | 90464-13073-00 | Clamp | 1 шт. | — | |
|
| 24 | 90464-14010-00 | Clamp | 1 шт. | — | |
|
| 25 | 27D-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 26 | 90183-060A6-00 | Nut, Spring | 2 шт. | — | |
|
| 27 | 95022-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 28 | 5VK-81950-50-00 | Relay Assy (G8r-30Y-V5) | 1 шт. | — | |
|
| 29 | 1WS-8246B-00-00 | Cover 1 | 1 шт. | — | |
|
| 30 | 1TP-81950-00-00 | Relay Assy (1Tp-00) | 2 шт. | — | |
|
| 31 | 5EA-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 32 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 33 | 91312-04025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 34 | 90201-04030-00 | Washer, Plate | 2 шт. | — | |
|
