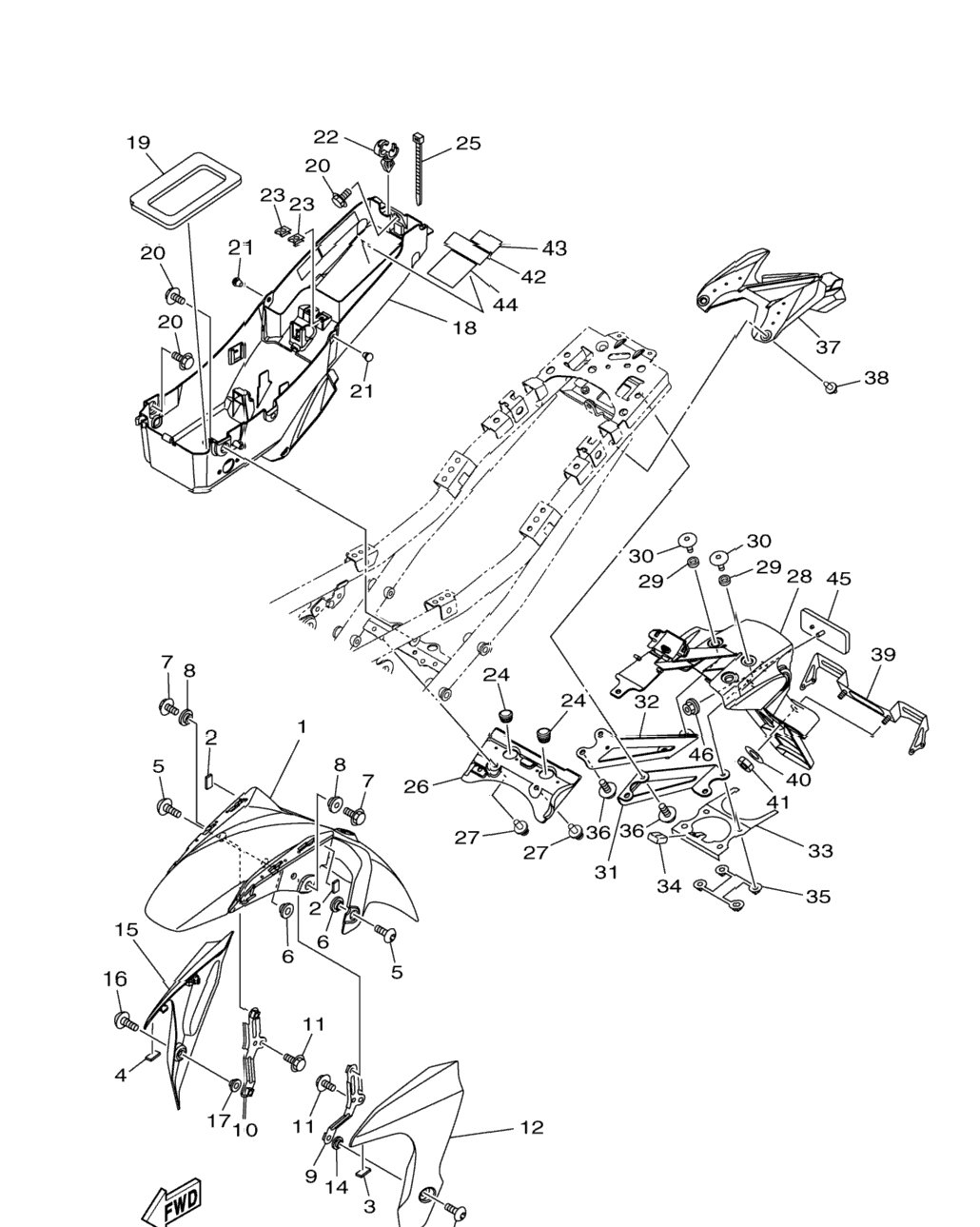

| 1 | 1WS-21511-00-00 | Fender, Front | 1 шт. | — | |
|
| 2 | 90520-01002-00 | Damper, Plate | 2 шт. | — | |
|
| 3 | 90520-01002-00 | Damper, Plate | 1 шт. | — | |
|
| 4 | 90520-01002-00 | Damper, Plate | 1 шт. | — | |
|
| 5 | 90111-06151-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 6 | 90387-08079-00 | Collar | 2 шт. | — | |
|
| 7 | 90119-06241-00 | Bolt, With Washer | 2 шт. | — | |
|
| 8 | 90387-06066-00 | Collar | 2 шт. | — | |
|
| 9 | 1WS-21512-00-00 | Bracket, Fender | 1 шт. | — | |
|
| 10 | 1WS-21612-00-00 | Bracket, Fender | 1 шт. | — | |
|
| 11 | 95022-06010-00 | Bolt, Flange | 4 шт. | — | |
|
| 12 | 1WS-21513-00-P6 | Stay, Fender 1 UR FOR SMX | 1 шт. | — | |
|
| 13 | 1WS-21513-00-P7 | Stay, Fender 1 UR DPBMC FOR MS1 | 0 шт. | — | |
|
| 14 | 90149-06105-00 | Screw | 1 шт. | — | |
|
| 15 | 90387-06107-00 | Collar | 1 шт. | — | |
|
| 16 | 1WS-21514-00-P7 | Stay, Fender 2 UR DPBMC FOR MS1 | 0 шт. | — | |
|
| 17 | 1WS-21514-00-P6 | Stay, Fender 2 UR FOR SMX | 1 шт. | — | |
|
| 18 | 90149-06105-00 | Screw | 1 шт. | — | |
|
| 19 | 90387-06107-00 | Collar | 1 шт. | — | |
|
| 20 | 1WS-8212B-00-00 | Box, Battery 1 | 1 шт. | — | |
|
| 21 | 1WS-21639-00-00 | Damper 2 | 1 шт. | — | |
|
| 22 | 90109-06202-00 | Bolt | 3 шт. | — | |
|
| 23 | 90338-06018-00 | Plug | 2 шт. | — | |
|
| 24 | 90464-18002-00 | Clamp | 1 шт. | — | |
|
| 25 | 90183-04039-00 | Nut, Spring | 2 шт. | — | |
|
| 26 | 90480-14100-00 | Grommet | 2 шт. | — | |
|
| 27 | 90465-13275-00 | Clamp | 1 шт. | — | |
|
| 28 | 1WS-21642-00-00 | Guard, Flap | 1 шт. | — | |
|
| 29 | 90269-06002-00 | Rivet | 2 шт. | — | |
|
| 30 | 1WS-21629-00-00 | Guard, Mud | 1 шт. | — | |
|
| 31 | 90387-06372-00 | Collar | 4 шт. | — | |
|
| 32 | 90111-06089-00 | Bolt, Hex. Socket Button | 4 шт. | — | |
|
| 33 | 1WS-2164F-00-00 | Stay 1 | 1 шт. | — | |
|
| 34 | 1WS-2164G-00-00 | Stay 2 | 1 шт. | — | |
|
| 35 | 1WS-21682-00-00 | Stay, Plate | 1 шт. | — | |
|
| 36 | 1WS-21746-00-00 | Damper | 1 шт. | — | |
|
| 37 | 1WS-2161G-00-00 | Bracket 6 | 1 шт. | — | |
|
| 38 | 90105-06205-00 | Bolt, Flange | 4 шт. | — | |
|
| 39 | 1WS-2163A-00-00 | Cover, Rear Fender 1 | 1 шт. | — | |
|
| 40 | 90269-07008-00 | Rivet | 2 шт. | — | |
|
| 41 | 2RC-84751-00-00 | Bracket, License | 1 шт. | — | |
|
| 42 | 92902-06600-00 | .Washer, Plate | 2 шт. | — | |
|
| 43 | 95602-06100-00 | .Nut, Self-Locking | 2 шт. | — | |
|
| 44 | 3JJ-28446-A1-00 | Label, Caution | 1 шт. | — | |
|
| 45 | 3SA-24877-A0-00 | Label, Caution | 0 шт. | — | |
|
| 46 | 4B5-21686-00-00 | Plate, Routing 2 FOR CAL | 0 шт. | — | |
|
| 47 | 3Y6-85130-02-00 | Rear Reflector Assy | 1 шт. | — | |
|
| 48 | 95602-05200-00 | .Nut, Self-Locking | 1 шт. | — | |
|
