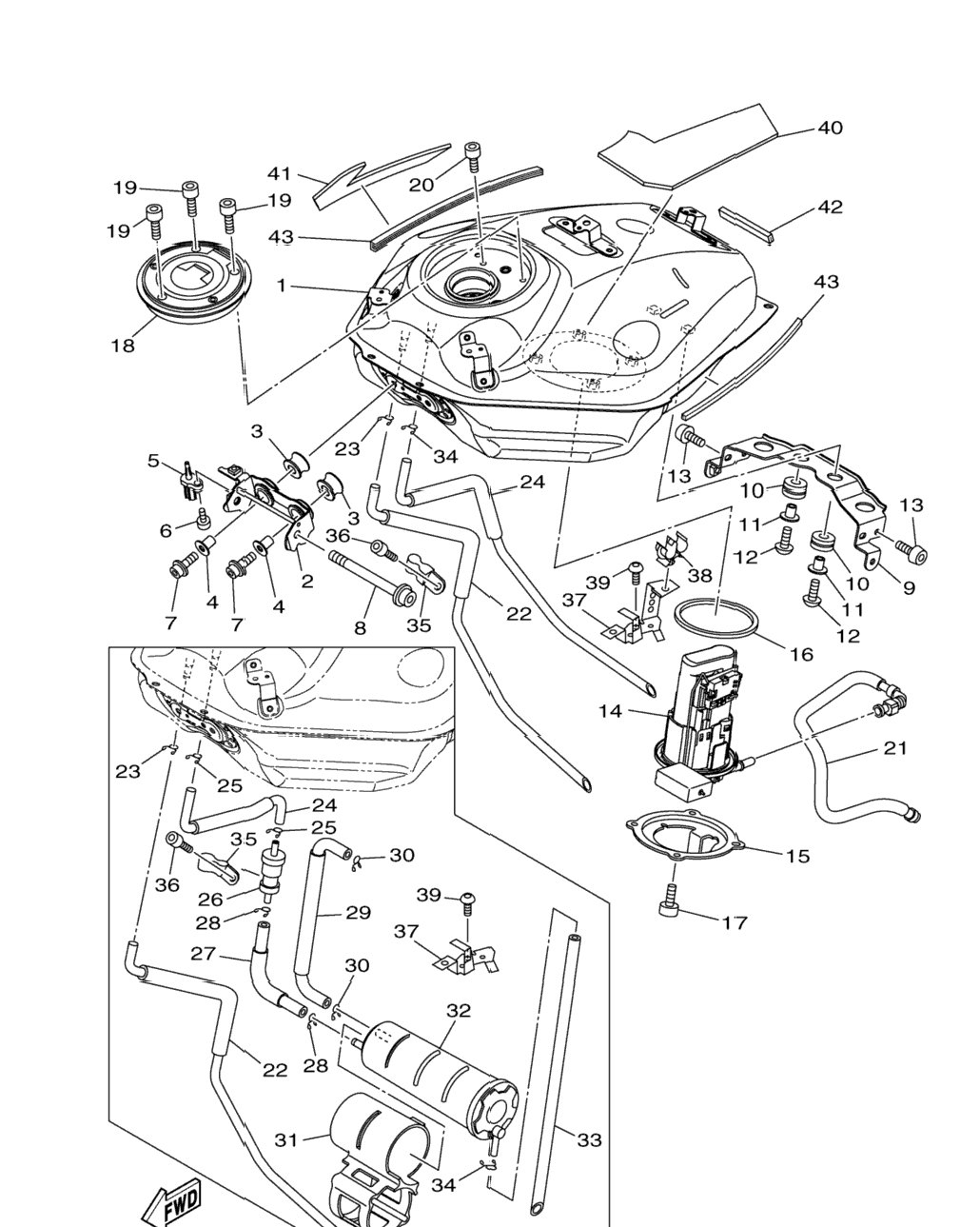

| 1 | 1WS-24110-00-00 | Fuel Tank Comp | 1 шт. | — | |
|
| 2 | 1WS-2412Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 3 | 3D7-24339-00-00 | .Grommet | 2 шт. | — | |
|
| 4 | 90387-06136-00 | Collar | 2 шт. | — | |
|
| 5 | 5YU-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 6 | 98502-05012-00 | Screw, Pan Head | 1 шт. | — | |
|
| 7 | 90110-06172-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 8 | 95817-08100-00 | Bolt, Flange | 1 шт. | — | |
|
| 9 | 1WS-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 10 | 90480-16003-00 | Grommet | 2 шт. | — | |
|
| 11 | 90387-06287-00 | Collar | 2 шт. | — | |
|
| 12 | 90111-06084-00 | Bolt,Hex. Socket Button | 2 шт. | — | |
|
| 13 | 92012-06012-00 | Bolt, Button Head | 4 шт. | — | |
|
| 14 | 1WS-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 15 | 1WS-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 16 | 1RC-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 17 | 91312-05010-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 18 | 1WS-24602-00-00 | Cap Assy | 1 шт. | — | |
|
| 19 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 20 | 91317-05010-00 | Bolt,Hex.Socket Head | 1 шт. | — | |
|
| 21 | 1WS-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 22 | 2RC-24318-00-00 | Pipe, Overflow FOR CAL | 0 шт. | — | |
|
| 23 | 1WS-24318-00-00 | Pipe, Overflow FOR U49 | 1 шт. | — | |
|
| 24 | 90467-090A2-00 | Clip | 1 шт. | — | |
|
| 25 | 1WS-24312-00-00 | Pipe 2 FOR U49 | 1 шт. | — | |
|
| 26 | 2RC-24321-00-00 | Pipe 10 FOR CAL | 0 шт. | — | |
|
| 27 | 90467-090A2-00 | Clip FOR CAL | 0 шт. | — | |
|
| 28 | 5PX-24180-00-00 | Roll Over Valve Assy FOR CAL | 0 шт. | — | |
|
| 29 | 2RC-24322-00-00 | Pipe 11 FOR CAL | 0 шт. | — | |
|
| 30 | 90467-090A2-00 | Clip FOR CAL | 0 шт. | — | |
|
| 31 | 2RC-24323-00-00 | Pipe 12 FOR CAL | 0 шт. | — | |
|
| 32 | 90467-090A2-00 | Clip FOR CAL | 0 шт. | — | |
|
| 33 | 2RC-24182-00-00 | Damper, Locating 2 FOR CAL | 0 шт. | — | |
|
| 34 | 2RC-24170-00-00 | Canister Assy FOR CAL | 0 шт. | — | |
|
| 35 | 2RC-24324-00-00 | Pipe 13 FOR CAL | 0 шт. | — | |
|
| 36 | 90467-090A2-00 | Clip | 1 шт. | — | |
|
| 37 | 1WS-24135-00-00 | Clamp 1 FOR U49 | 1 шт. | — | |
|
| 38 | 2RC-24135-00-00 | Clamp 1 FOR CAL | 0 шт. | — | |
|
| 39 | 92017-06010-00 | Bolt, Button Head | 1 шт. | — | |
|
| 40 | 2RC-2419F-00-00 | Bracket, Canistor FOR CAL | 0 шт. | — | |
|
| 41 | 1WS-2419F-00-00 | Bracket, Canistor FOR U49 | 1 шт. | — | |
|
| 42 | 90464-11007-00 | Clamp FOR U49 | 1 шт. | — | |
|
| 43 | 90111-06119-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 44 | 1WS-2414H-00-00 | Damper, Plate 1 | 1 шт. | — | |
|
| 45 | 1WS-2414J-00-00 | Damper, Plate 2 | 1 шт. | — | |
|
| 46 | 90520-02011-00 | Damper, Plate | 1 шт. | — | |
|
| 47 | 3D7-24188-00-00 | Mold, Fuel Tank | 2 шт. | — | |
|
