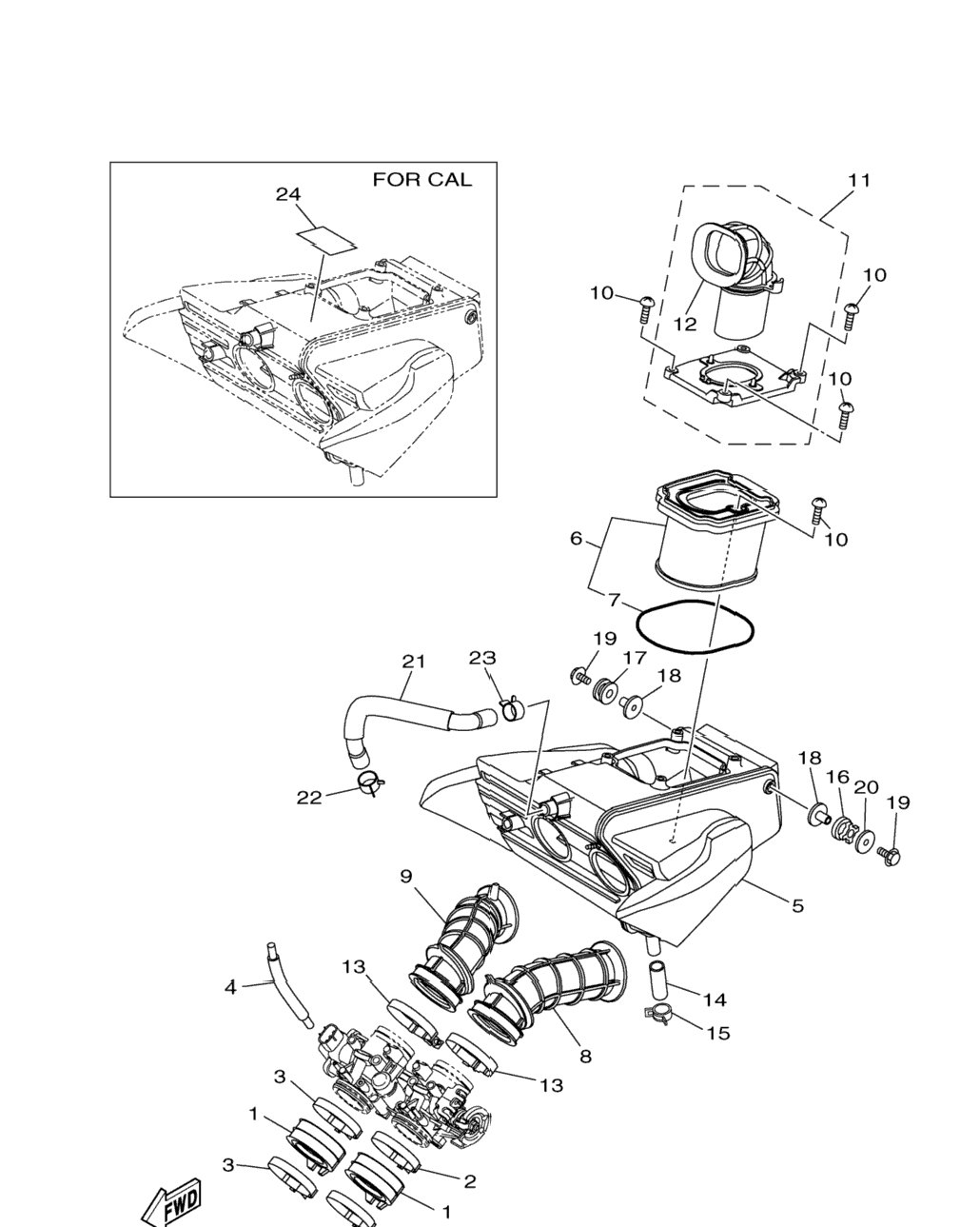

| 1 | 1WS-13635-00-00 | Joint, Intake 1 | 2 шт. | — | |
|
| 2 | 90450-56011-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 3 | 90450-56012-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 4 | 1WS-13542-00-00 | Hose, Vacuum Sensing 1 | 1 шт. | — | |
|
| 5 | 1WS-14401-00-00 | Air Cleaner Case Assy | 1 шт. | — | |
|
| 6 | 1WS-14450-00-00 | Element Assy, Air Cleaner | 1 шт. | — | |
|
| 7 | 1WS-14452-00-00 | . .Seal | 1 шт. | — | |
|
| 8 | 1WS-14469-00-00 | Funnel, Air | 1 шт. | — | |
|
| 9 | 1WS-1446C-00-00 | Funnel 2 | 1 шт. | — | |
|
| 10 | 90160-05013-00 | Screw, Round Tapping | 5 шт. | — | |
|
| 11 | 1WS-14430-10-00 | Duct Assy | 1 шт. | — | |
|
| 12 | 1WS-14437-10-00 | . .Duct | 1 шт. | — | |
|
| 13 | 90450-56011-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 14 | 1WS-1443E-00-00 | Pipe, Drain | 1 шт. | — | |
|
| 15 | 90467-13083-00 | Clip | 1 шт. | — | |
|
| 16 | 90480-15001-00 | Grommet | 1 шт. | — | |
|
| 17 | 90480-15014-00 | Grommet | 1 шт. | — | |
|
| 18 | 90387-06300-00 | Collar | 2 шт. | — | |
|
| 19 | 95817-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 20 | 90201-064K6-00 | Washer, Plate | 1 шт. | — | |
|
| 21 | 1WS-11166-00-00 | Pipe, Breather 1 | 1 шт. | — | |
|
| 22 | 90467-17128-00 | Clip | 1 шт. | — | |
|
| 23 | 90467-160A2-00 | Clip | 1 шт. | — | |
|
| 24 | 34B-21684-00-00 | Plate, Routing FOR CAL | 0 шт. | — | |
|
