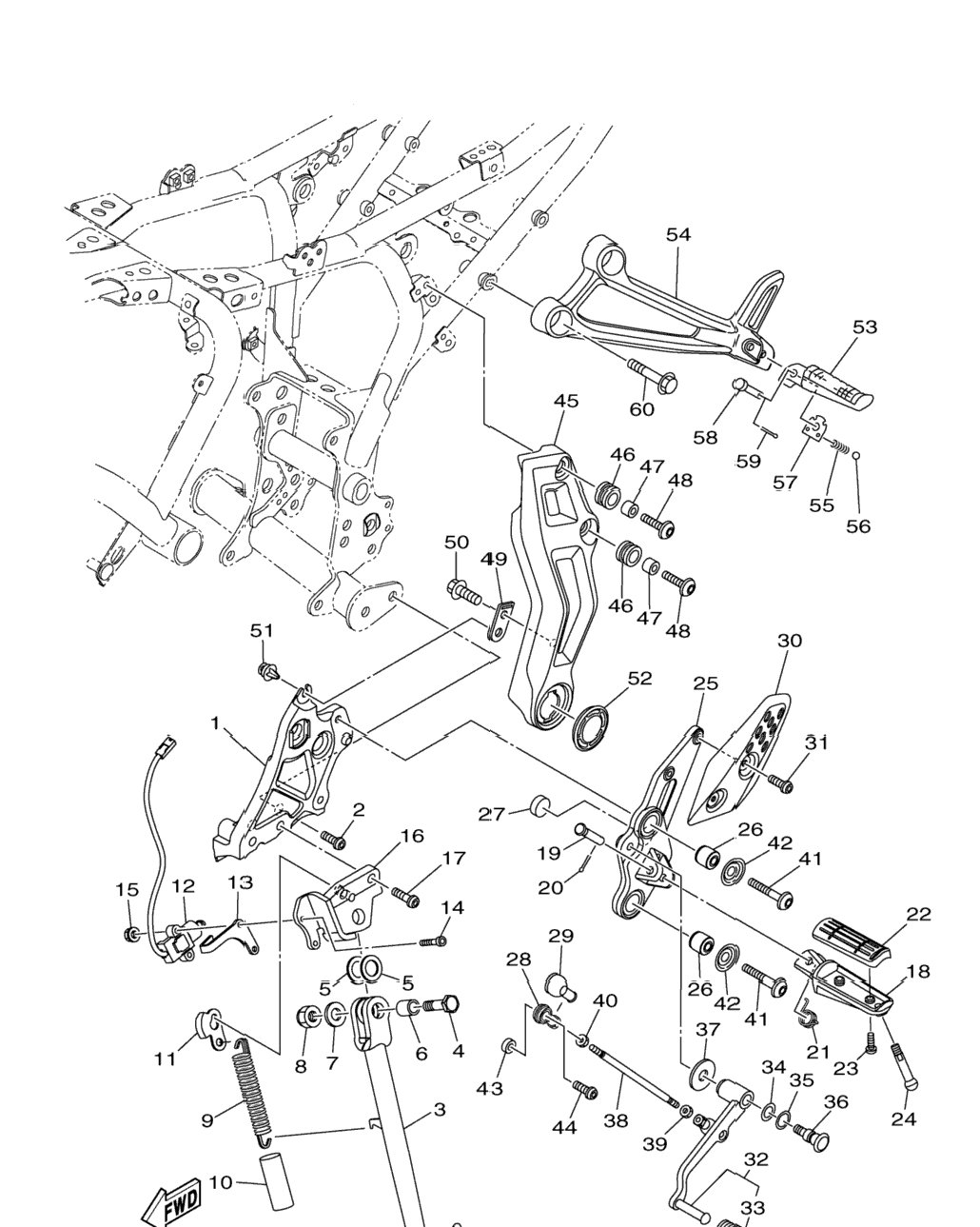

| 1 | 1WS-274A3-00-00 | Bracket, Adapter 1 | 1 шт. | — | |
|
| 2 | 90111-10060-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 3 | 1WS-27311-00-00 | Stand, Side | 1 шт. | — | |
|
| 4 | 90101-10025-00 | Bolt | 1 шт. | — | |
|
| 5 | 90201-17018-00 | Washer, Plate | 2 шт. | — | |
|
| 6 | 90387-10050-00 | Collar | 1 шт. | — | |
|
| 7 | 90201-10035-00 | Washer, Plate | 1 шт. | — | |
|
| 8 | 90185-10023-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 9 | 90506-23018-00 | Spring, Tension | 1 шт. | — | |
|
| 10 | 5VX-27351-00-00 | Guide, Side Stand | 1 шт. | — | |
|
| 11 | 5VX-27315-00-00 | Link, Side Stand | 1 шт. | — | |
|
| 12 | 1WS-82566-00-00 | Switch, Side Stand | 1 шт. | — | |
|
| 13 | 1WS-2419A-00-00 | Holder | 1 шт. | — | |
|
| 14 | 90110-05071-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 15 | 95602-05200-00 | .Nut, Self-Locking | 2 шт. | — | |
|
| 16 | 1WS-27321-00-00 | Bracket, Side Stand | 1 шт. | — | |
|
| 17 | 90111-10058-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 18 | 1WS-27451-00-00 | Footrest | 1 шт. | — | |
|
| 19 | 91701-08040-00 | Pin | 1 шт. | — | |
|
| 20 | 91402-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 21 | 90508-18056-00 | Spring, Torsion | 1 шт. | — | |
|
| 22 | 3YX-27413-00-00 | Cover, Footrest | 1 шт. | — | |
|
| 23 | 90157-05025-00 | Screw, Pan Head | 2 шт. | — | |
|
| 24 | 90109-086F8-00 | Bolt | 1 шт. | — | |
|
| 25 | 1WS-27442-00-00 | Bracket 2 UR FOR SMX, MS1 | 1 шт. | — | |
|
| 26 | 36Y-27414-00-00 | Damper, Footrest | 2 шт. | — | |
|
| 27 | 5VX-27114-00-00 | Stopper, Main Stand | 1 шт. | — | |
|
| 28 | 5VX-18116-00-00 | Joint, Rod 1 | 1 шт. | — | |
|
| 29 | 5VX-18154-00-00 | Cover, Dust | 1 шт. | — | |
|
| 30 | 1WS-27445-00-00 | Plate 1 UR FOR SMX, MS1 | 1 шт. | — | |
|
| 31 | 92014-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 32 | 1WS-18110-00-00 | Shift Pedal Assy | 1 шт. | — | |
|
| 33 | 1WS-18113-00-00 | . Cover, Shift Pedal | 1 шт. | — | |
|
| 34 | 90201-12051-00 | Washer, Plate | 1 шт. | — | |
|
| 35 | 90206-12074-00 | Washer, Wave | 1 шт. | — | |
|
| 36 | 4BP-27434-01-00 | Bolt | 1 шт. | — | |
|
| 37 | 90201-08053-00 | Washer, Plate | 1 шт. | — | |
|
| 38 | 5A8-18115-00-00 | Rod, Shift | 1 шт. | — | |
|
| 39 | 90170-06026-00 | Nut | 1 шт. | — | |
|
| 40 | 95314-06700-00 | Nut | 1 шт. | — | |
|
| 41 | 90110-08071-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 42 | 90209-08295-00 | Washer | 2 шт. | — | |
|
| 43 | 90387-06372-00 | Collar | 1 шт. | — | |
|
| 44 | 90111-06098-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 45 | 1WS-27453-00-00 | Cover 1 UR FOR SMX, MS1 | 1 шт. | — | |
|
| 46 | 90480-14003-00 | Grommet | 2 шт. | — | |
|
| 47 | 90387-06057-00 | Collar | 2 шт. | — | |
|
| 48 | 90149-06105-00 | Screw | 2 шт. | — | |
|
| 49 | 1WS-27425-00-00 | Bracket, Footrest 2 | 1 шт. | — | |
|
| 50 | 95802-06010-00 | Bolt, Flange | 1 шт. | — | |
|
| 51 | 90269-08008-00 | Rivet | 1 шт. | — | |
|
| 52 | 1WS-27475-00-P0 | Cap 1 MBL2 | 1 шт. | — | |
|
| 53 | 3VR-27431-02-00 | Footrest, Rear 1 | 1 шт. | — | |
|
| 54 | 1WS-2741L-01-00 | Bracket 4 | 1 шт. | — | |
|
| 55 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 56 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 57 | 5VX-27437-00-00 | Washer, Special | 1 шт. | — | |
|
| 58 | 91702-08040-00 | Pin, Clevis | 1 шт. | — | |
|
| 59 | 91401-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 60 | 90110-08231-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
