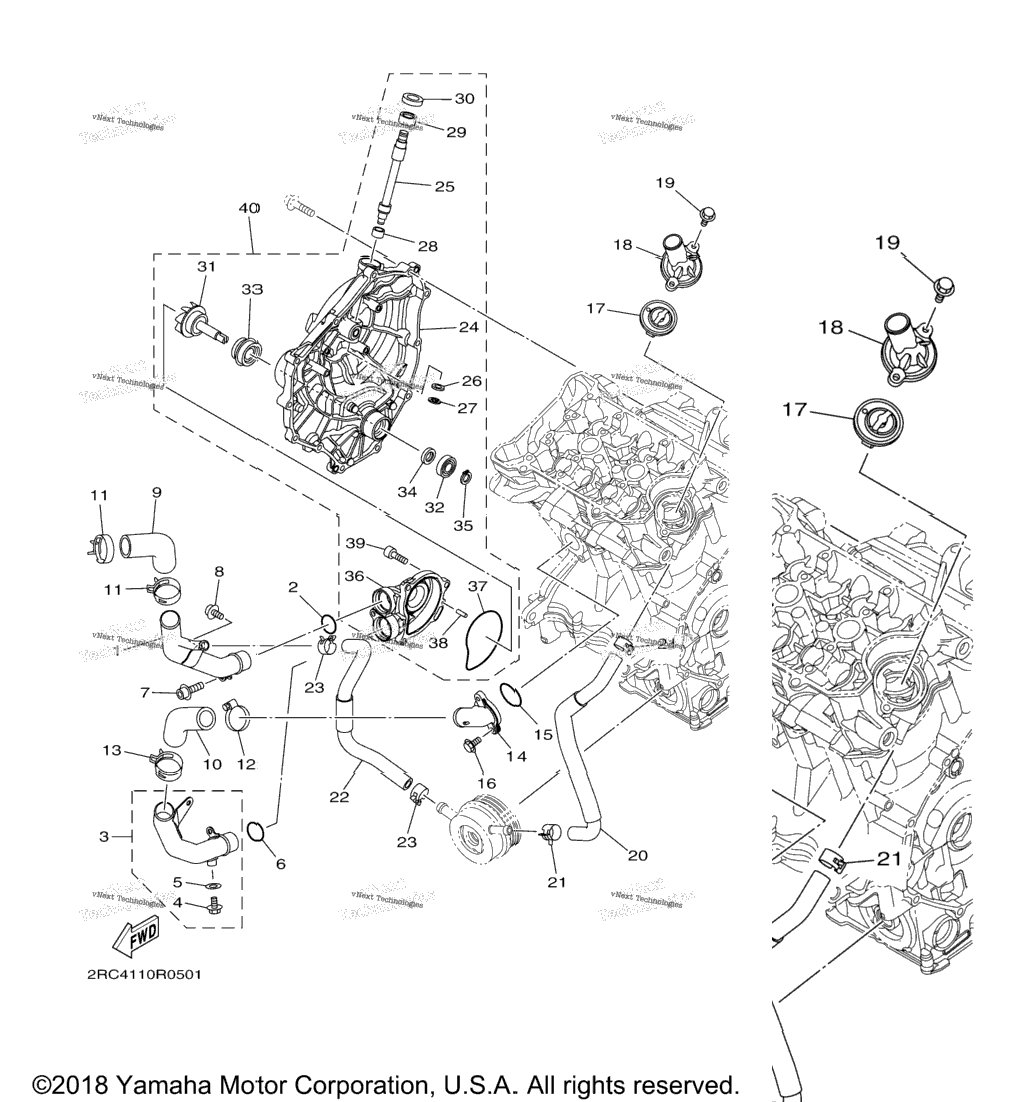

| 1 | 1WS-12481-00-00 | Pipe 1 | 1 шт. | — | |
|
| 2 | 93210-235A1-00 | O-Ring | 1 шт. | — | |
|
| 3 | 1WS-12482-00-00 | Pipe 2 | 1 шт. | — | |
|
| 4 | 95022-06010-00 | . Bolt, Flange | 1 шт. | — | |
|
| 5 | 90430-06014-00 | . Gasket | 1 шт. | — | |
|
| 6 | 93210-235A1-00 | O-Ring | 1 шт. | — | |
|
| 7 | 91314-06014-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 8 | 90110-06152-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 9 | 1WS-12576-00-00 | Hose 1 | 1 шт. | — | |
|
| 10 | 1WS-12576-00-00 | Hose 1 | 1 шт. | — | |
|
| 11 | 90467-290A0-00 | Clip | 2 шт. | — | |
|
| 12 | 90450-35001-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 13 | 90467-290A0-00 | Clip | 1 шт. | — | |
|
| 14 | 1WS-12469-00-00 | Joint 1 | 1 шт. | — | |
|
| 15 | 93210-33786-00 | O-Ring | 1 шт. | — | |
|
| 16 | 95812-06020-00 | .Bolt, Flange | 2 шт. | — | |
|
| 17 | 1WS-12410-00-00 | Thermostat Assy | 1 шт. | — | |
|
| 18 | 1WS-12413-00-00 | Cover, Thermostat | 1 шт. | — | |
|
| 19 | 95817-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 20 | 1WS-12588-00-00 | Hose 5 | 1 шт. | — | |
|
| 21 | 90467-170A6-00 | Clip | 2 шт. | — | |
|
| 22 | 1WS-12589-00-00 | Hose 6 | 1 шт. | — | |
|
| 23 | 90467-170A6-00 | Clip | 2 шт. | — | |
|
| 24 | 1WS-15421-00-00 | . .Cover, Crankcase 2 | 1 шт. | — | |
|
| 25 | 2D1-16382-00-00 | . .Axle, Push Lever | 1 шт. | — | |
|
| 26 | 92907-08600-00 | . Washer, Plate | 1 шт. | — | |
|
| 27 | 99001-07600-00 | . Circlip | 1 шт. | — | |
|
| 28 | 93317-11096-00 | . Bearing | 1 шт. | — | |
|
| 29 | 93315-21570-00 | . Bearing | 1 шт. | — | |
|
| 30 | 93102-15212-00 | . .Oil Seal | 1 шт. | — | |
|
| 31 | 1WS-12450-00-00 | . .Impeller Shaft Assy | 1 шт. | — | |
|
| 32 | 93306-00106-00 | .Bearing | 1 шт. | — | |
|
| 33 | 5VK-12438-00-00 | . .Seal, Mechanical | 1 шт. | — | |
|
| 34 | 2CR-13338-00-00 | . .Seal | 1 шт. | — | |
|
| 35 | 99009-12400-00 | . Circlip | 1 шт. | — | |
|
| 36 | 1WS-12422-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 37 | 1WS-12439-00-00 | . .O-Ring | 1 шт. | — | |
|
| 38 | 93603-12007-00 | . Pin, Dowel | 1 шт. | — | |
|
| 39 | 90110-06274-00 | . Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 40 | 1WS-12420-01-00 | Water Pump Assy | 1 шт. | — | |
|
