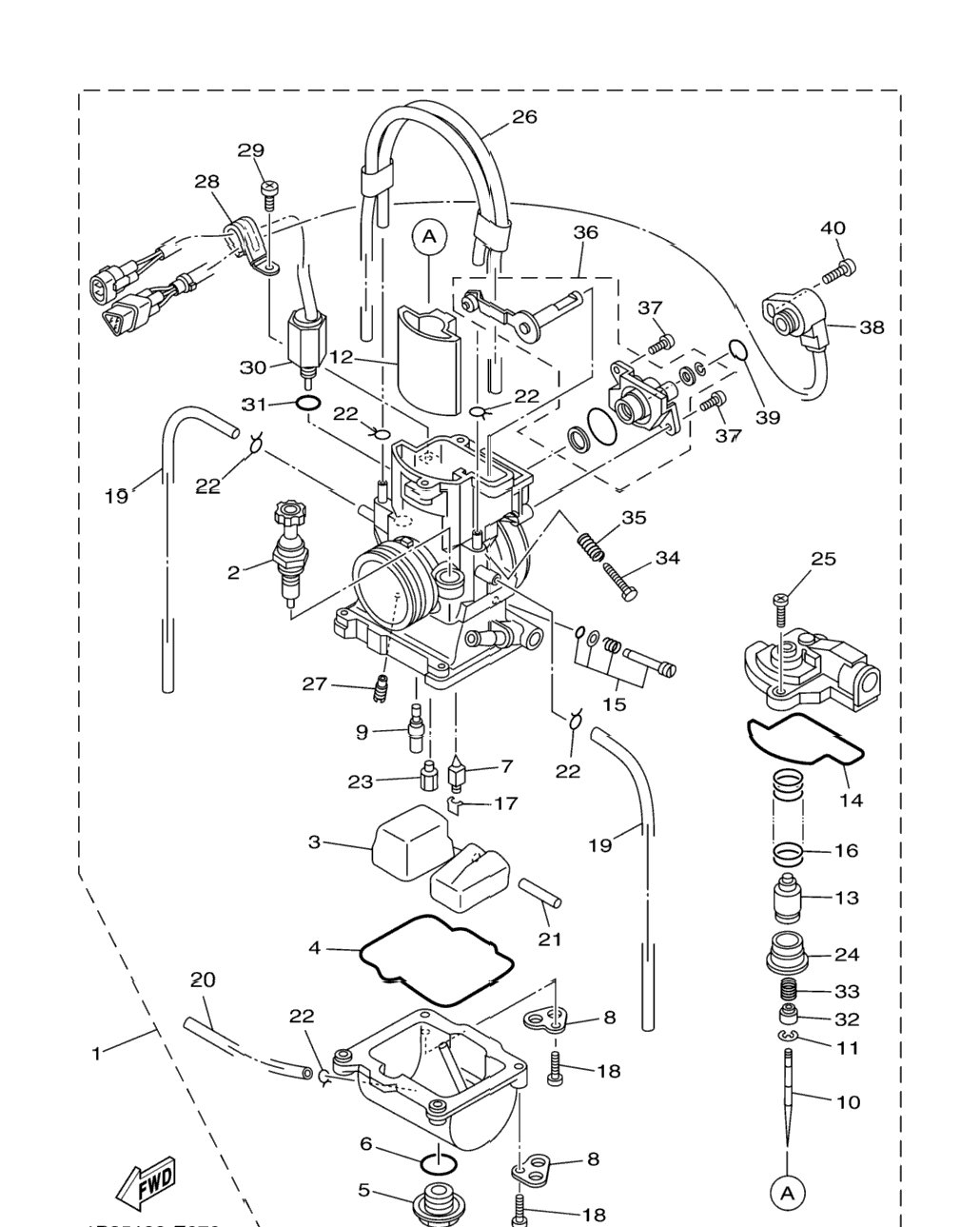

| 1 | 1P8-14101-50-00 | Carburetor Assy 1 | 1 шт. | — | |
|
| 2 | 4JT-14171-00-00 | . .Plunger, Starter | 1 шт. | — | |
|
| 3 | 4SR-14985-00-00 | . .Float | 1 шт. | — | |
|
| 4 | 4JT-14984-00-00 | . .Gasket, Float Chamber | 1 шт. | — | |
|
| 5 | 4MX-14115-00-00 | . .Plug, Screw | 1 шт. | — | |
|
| 6 | 4MX-14561-00-00 | . .O-Ring | 1 шт. | — | |
|
| 7 | 4MX-14392-00-00 | . .Valve, Needle | 1 шт. | — | |
|
| 8 | 4XL-14146-00-00 | . .Plate | 2 шт. | — | |
|
| 9 | 4MX-14948-02-00 | . .Jet, Slow (#38) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-03-00 | . .Jet, Slow (#40) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-04-00 | . .Jet, Slow (#42) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-05-00 | . .Jet, Slow (#45) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-06-00 | . .Jet, Slow (#48) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-07-00 | . .Jet, Slow (#50) STD | 1 шт. | — | |
|
| 9 | 4MX-14948-08-00 | . .Jet, Slow (#52) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-09-00 | . .Jet, Slow (#55) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-10-00 | . .Jet, Slow (#58) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-11-00 | . .Jet, Slow (#60) AP | 1 шт. | — | |
|
| 9 | 4MX-14948-12-00 | . .Jet, Slow (#62) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-CG-00 | . .Needle (N3cg) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-CH-00 | . .Needle (N3ch) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-CJ-00 | . .Needle (N3cj) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-CK-00 | . .Needle (N3ck) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-CW-00 | . .Needle (N3cw) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-EG-00 | . .Needle (N3eg) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-EH-00 | . .Needle (N3eh) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-EJ-00 | . .Needle (N3ej) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-EK-00 | . .Needle (N3ek) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-EW-00 | . .Needle (N3ew) STD | 1 шт. | — | |
|
| 10 | 4JT-14916-9G-00 | . .Needle (N89g) AP | 0 шт. | — | |
|
| 10 | 4JT-14916-9H-00 | . .Needle (N89h) AP | 1 шт. | — | |
|
| 10 | 4JT-14916-9J-00 | . .Needle (N89j) AP | 1 шт. | — | |
|
| 10 | 4JT-14916-9W-00 | . .Needle (N89w) AP | 0 шт. | — | |
|
| 10 | 4SR-14916-RH-00 | . .Needle (N8rh) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-RJ-00 | . .Needle (N8rj) AP | 1 шт. | — | |
|
| 10 | 4SR-14916-RW-00 | . .Needle (N8rw) AP | 1 шт. | — | |
|
| 11 | 4MX-14919-00-00 | . .Clip | 1 шт. | — | |
|
| 12 | 5HC-14340-A7-00 | . .Valve Assy | 1 шт. | — | |
|
| 13 | 5HC-14261-00-00 | . .Holder | 1 шт. | — | |
|
| 14 | 5HC-14126-00-00 | . .Gasket | 1 шт. | — | |
|
| 15 | 4SR-14105-00-00 | . .Pilot Screw Set | 1 шт. | — | |
|
| 16 | 5HC-14131-00-00 | . .Spring, Throttle Valve | 1 шт. | — | |
|
| 17 | 663-14159-00-00 | . .Clip | 1 шт. | — | |
|
| 18 | 98502-04014-00 | . Screw, Pan Head | 4 шт. | — | |
|
| 19 | 4XL-14197-10-00 | . .Pipe | 2 шт. | — | |
|
| 20 | 4XL-14196-10-00 | . .Pipe, Over Flow 1 | 1 шт. | — | |
|
| 21 | 676-14548-00-00 | . .Pin, Float Arm | 1 шт. | — | |
|
| 22 | 3TJ-14137-40-00 | . .Clip | 5 шт. | — | |
|
| 23 | 4MX-14943-90-00 | . .Jet, Main (#162) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-40-00 | . .Jet, Main (#165) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-91-00 | . .Jet, Main (#168) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-41-00 | . .Jet, Main (#170) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-92-00 | . .Jet, Main (#172) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-42-00 | . .Jet, Main (#175) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-93-00 | . .Jet, Main (#178) STD | 1 шт. | — | |
|
| 23 | 4MX-14943-43-00 | . .Jet, Main (#180) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-94-00 | . .Jet, Main (#182) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-44-00 | . .Jet, Main (#185) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-95-00 | . .Jet, Main (#188) AP | 1 шт. | — | |
|
| 23 | 4MX-14943-45-00 | . .Jet, Main (#190) AP | 1 шт. | — | |
|
| 24 | 4MX-14194-00-00 | . .Ring | 1 шт. | — | |
|
| 25 | 98502-04012-00 | . Screw, Pan Head | 0 шт. | — | |
|
| 26 | 4XL-1410E-00-00 | . .Hose | 1 шт. | — | |
|
| 27 | 4JT-1494F-03-00 | . .Jet (#40) AP | 1 шт. | — | |
|
| 27 | 4JT-1494F-07-00 | . .Jet (#50) STD | 1 шт. | — | |
|
| 27 | 4JT-1494F-09-00 | . .Jet (#55) AP | 1 шт. | — | |
|
| 27 | 4JT-1494F-11-00 | . .Jet (#60) AP | 1 шт. | — | |
|
| 27 | 4JT-1494F-13-00 | . .Jet (#65) AP | 1 шт. | — | |
|
| 27 | 4JT-1494F-15-00 | . .Jet (#70) AP | 1 шт. | — | |
|
| 28 | 5HC-14146-00-00 | . .Plate | 0 шт. | — | |
|
| 29 | 98580-04006-00 | . .Screw, Pan Head | 1 шт. | — | |
|
| 30 | 5NX-1410H-10-00 | . .Solenoid Valve | 1 шт. | — | |
|
| 31 | 4JT-14147-00-00 | . .O-Ring | 1 шт. | — | |
|
| 32 | 5HC-14264-00-00 | . .Collar | 1 шт. | — | |
|
| 33 | 5HC-14275-00-00 | . .Spring | 1 шт. | — | |
|
| 34 | 5HC-14922-00-00 | . .Screw, Throttle | 1 шт. | — | |
|
| 35 | 5HC-14934-00-00 | . .Spring, Throttle Stop | 1 шт. | — | |
|
| 36 | 1P8-14208-00-00 | . .Lever Comp. 1 | 1 шт. | — | |
|
| 37 | 5HC-14216-00-00 | . .Screw | 2 шт. | — | |
|
| 38 | 5NX-85885-10-00 | . .Throttle Sensor Assy | 1 шт. | — | |
|
| 39 | 5NX-14562-00-00 | . .O-Ring | 1 шт. | — | |
|
| 40 | 5NX-14216-00-00 | . .Screw | 1 шт. | — | |
|
