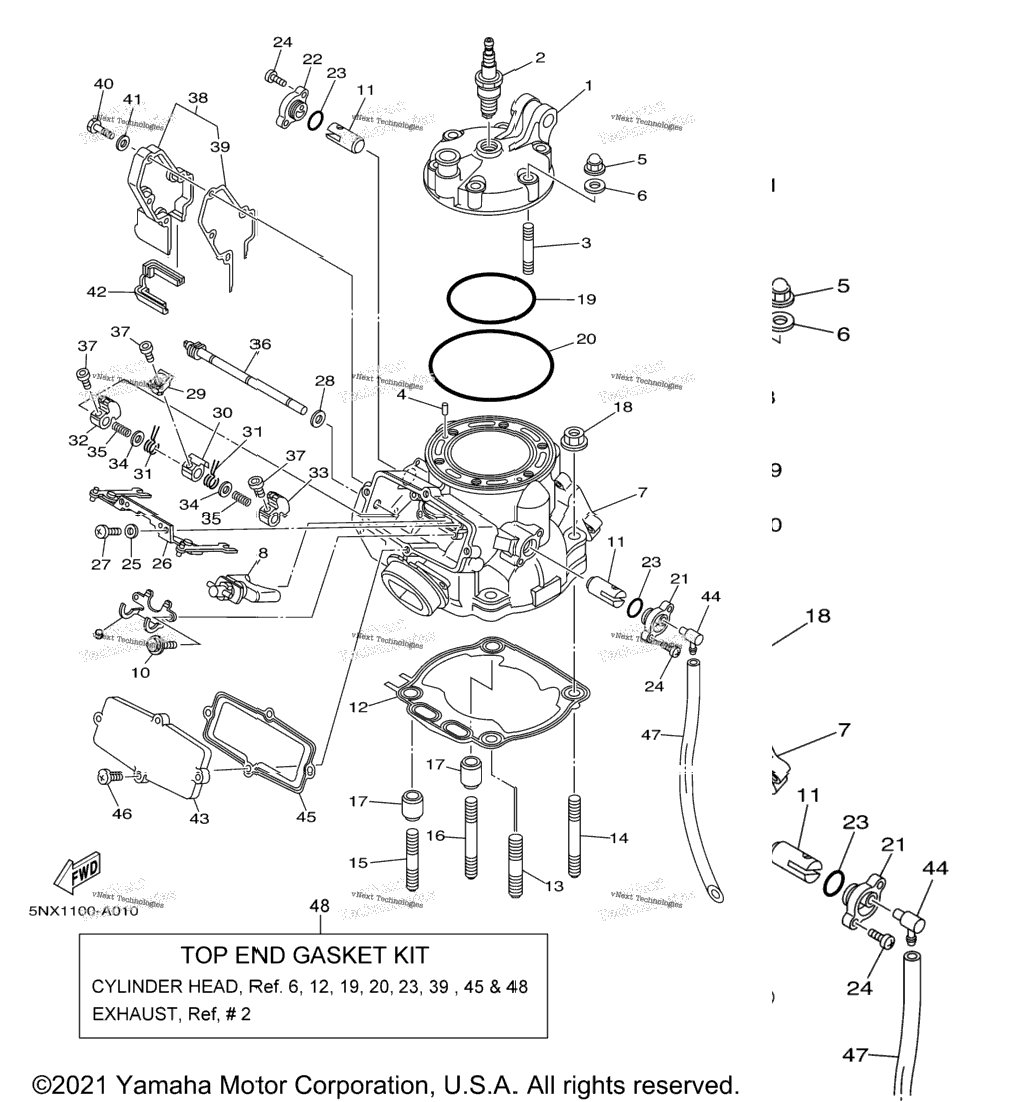

| 1 | 5MW-11111-02-00 | Head, Cylinder 1 | 1 шт. | — | |
|
| 2 | 94702-00326-00 | Plug, Spark (Ngk Br8eg) | 1 шт. | — | |
|
| 3 | 90116-08027-00 | Bolt, Stud | 6 шт. | — | |
|
| 4 | 93604-08071-00 | Pin, Dowel | 2 шт. | — | |
|
| 5 | 90176-08005-00 | Nut, Crown | 6 шт. | — | |
|
| 6 | 90201-080L8-00 | Washer, Plate INCL. IN TOP END GASKET KIT | 6 шт. | — | |
|
| 7 | 5UP-11311-20-00 | Cylinder 1 | 1 шт. | — | |
|
| 8 | 5XF-1131D-00-00 | Valve Assy | 1 шт. | — | |
|
| 9 | 5CU-1131U-10-00 | Holder 3 | 1 шт. | — | |
|
| 10 | 90109-05001-00 | Bolt | 2 шт. | — | |
|
| 11 | 5CU-1132A-00-00 | Valve 2 | 2 шт. | — | |
|
| 12 | 5UP-11351-00-00 | Gasket, Cylinder INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 15 | 90116-10034-00 | Bolt, Stud | 1 шт. | — | |
|
| 15 | 90116-10034-00 | Bolt, Stud | 1 шт. | — | |
|
| 16 | 95612-10660-00 | Bolt, Stud | 1 шт. | — | |
|
| 16 | 95612-10660-00 | Bolt, Stud | 1 шт. | — | |
|
| 17 | 99590-14016-00 | Pin, Dowel | 2 шт. | — | |
|
| 18 | 90179-10M35-00 | Nut | 4 шт. | — | |
|
| 19 | 93210-74316-00 | O-Ring INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 20 | 93211-02703-00 | O-Ring INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 21 | 5CU-1131E-01-00 | Holder 1 | 1 шт. | — | |
|
| 22 | 5CU-1131P-00-00 | Holder 4 | 1 шт. | — | |
|
| 23 | 93210-15639-00 | O-Ring INCL. IN TOP END GASKET KIT | 2 шт. | — | |
|
| 24 | 98502-05012-00 | Screw, Pan Head | 4 шт. | — | |
|
| 25 | 90201-05021-00 | Washer, Plate | 2 шт. | — | |
|
| 26 | 5CU-11830-00-00 | Link Assy | 1 шт. | — | |
|
| 27 | 98902-05012-00 | Screw, Bind | 2 шт. | — | |
|
| 28 | 93104-08040-00 | Oil Seal | 1 шт. | — | |
|
| 29 | 5NX-11395-00-00 | Holder | 1 шт. | — | |
|
| 30 | 4SS-11832-00-00 | Lever, Link | 1 шт. | — | |
|
| 31 | 90508-155B8-00 | Spring, Torsion | 2 шт. | — | |
|
| 32 | 5MW-1132E-00-00 | Pulley 1 | 1 шт. | — | |
|
| 33 | 5MW-1132F-00-00 | Pulley 2 | 1 шт. | — | |
|
| 34 | 90201-081G0-00 | Washer, Plate | 2 шт. | — | |
|
| 35 | 90501-046L6-00 | Spring, Compression | 2 шт. | — | |
|
| 36 | 5CU-1131V-00-00 | Shaft 1 | 1 шт. | — | |
|
| 37 | 91312-04008-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 38 | 5CU-11991-00-00 | Housing 1 | 1 шт. | — | |
|
| 39 | 5CU-11993-00-00 | . .Gasket INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 40 | 97002-05020-00 | Bolt | 4 шт. | — | |
|
| 41 | 92902-05600-00 | Washer, Plate | 4 шт. | — | |
|
| 42 | 5CU-11995-00-00 | Seal, Housing | 1 шт. | — | |
|
| 43 | 5CU-1131M-10-00 | Cover | 1 шт. | — | |
|
| 44 | 353-13115-01-00 | Connector, Suction Pipe | 1 шт. | — | |
|
| 45 | 5CU-11354-00-00 | Gasket INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 46 | 98902-05016-00 | Screw, Bind | 4 шт. | — | |
|
| 47 | 90445-09777-00 | Hose (L300) | 0 шт. | — | |
|
| 48 | 1P8-W0001-00-00 | Top End Gasket Kit NOT SHOWN | 1 шт. | — | |
|
