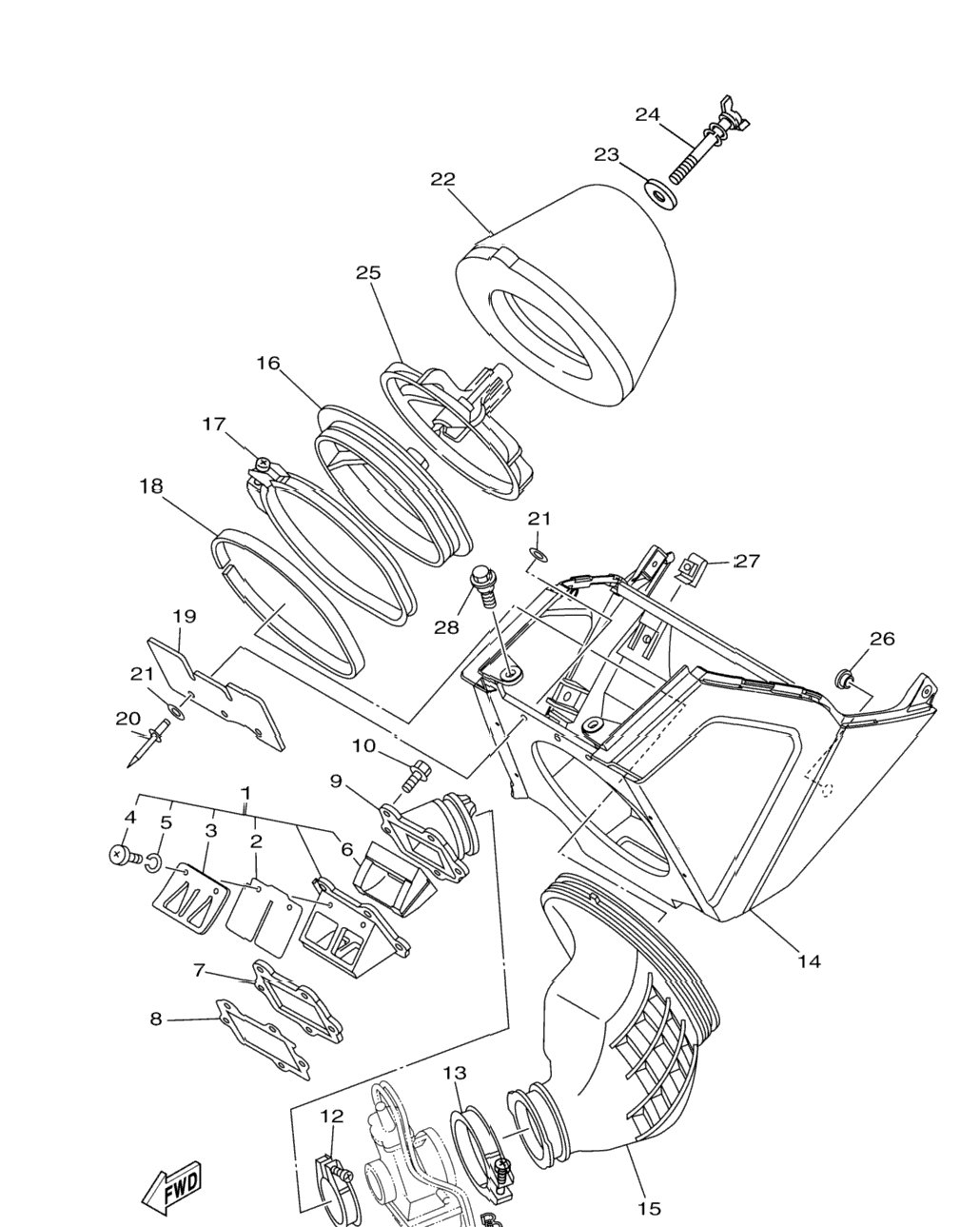

| 1 | 5NX-13610-10-00 | Reed Valve Assy | 1 шт. | — | |
|
| 2 | 5NX-13613-00-00 | . .Reed, Valve | 2 шт. | — | |
|
| 3 | 4XL-13616-10-00 | . .Stopper, Reed Valve | 2 шт. | — | |
|
| 4 | 98502-03008-00 | . Screw, Pan Head | 4 шт. | — | |
|
| 5 | 92902-03100-00 | . .Washer | 4 шт. | — | |
|
| 6 | 4XL-13625-00-00 | . .Spacer, Reed Valve | 1 шт. | — | |
|
| 7 | 5NX-13624-00-00 | Plate,Reed Valve | 1 шт. | — | |
|
| 8 | 5XF-13622-00-00 | Gasket, Valve Seat | 1 шт. | — | |
|
| 9 | 5NX-13565-00-00 | Joint, Carburetor | 1 шт. | — | |
|
| 10 | 91312-06025-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 11 | 90464-06214-00 | Clamp | 2 шт. | — | |
|
| 12 | 90450-51001-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 13 | 90450-70003-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 14 | 1SS-14401-00-00 | Air Cleaner Case Assy | 1 шт. | — | |
|
| 15 | 5NX-14453-00-00 | Joint, Air Cleaner 1 | 1 шт. | — | |
|
| 16 | 5NY-14459-00-00 | Holder, Guide | 1 шт. | — | |
|
| 17 | 5NY-14455-20-00 | Band | 1 шт. | — | |
|
| 18 | 5NY-14442-00-00 | Spacer | 1 шт. | — | |
|
| 19 | 5NY-14417-00-00 | Cover 1 | 1 шт. | — | |
|
| 20 | 90267-32070-00 | Rivet, Blind | 3 шт. | — | |
|
| 21 | 90201-03313-00 | Washer, Plate | 6 шт. | — | |
|
| 22 | 4XM-14451-00-00 | Element, Air Cleaner | 1 шт. | — | |
|
| 23 | 90209-06096-00 | Washer | 1 шт. | — | |
|
| 24 | 90122-06005-00 | Bolt, Wing | 1 шт. | — | |
|
| 25 | 3JD-14458-01-00 | Guide | 1 шт. | — | |
|
| 26 | 90480-10M28-00 | Grommet | 1 шт. | — | |
|
| 27 | 90183-06023-00 | Nut, Spring | 2 шт. | — | |
|
| 28 | 90105-06170-00 | Bolt, Flange | 2 шт. | — | |
|
