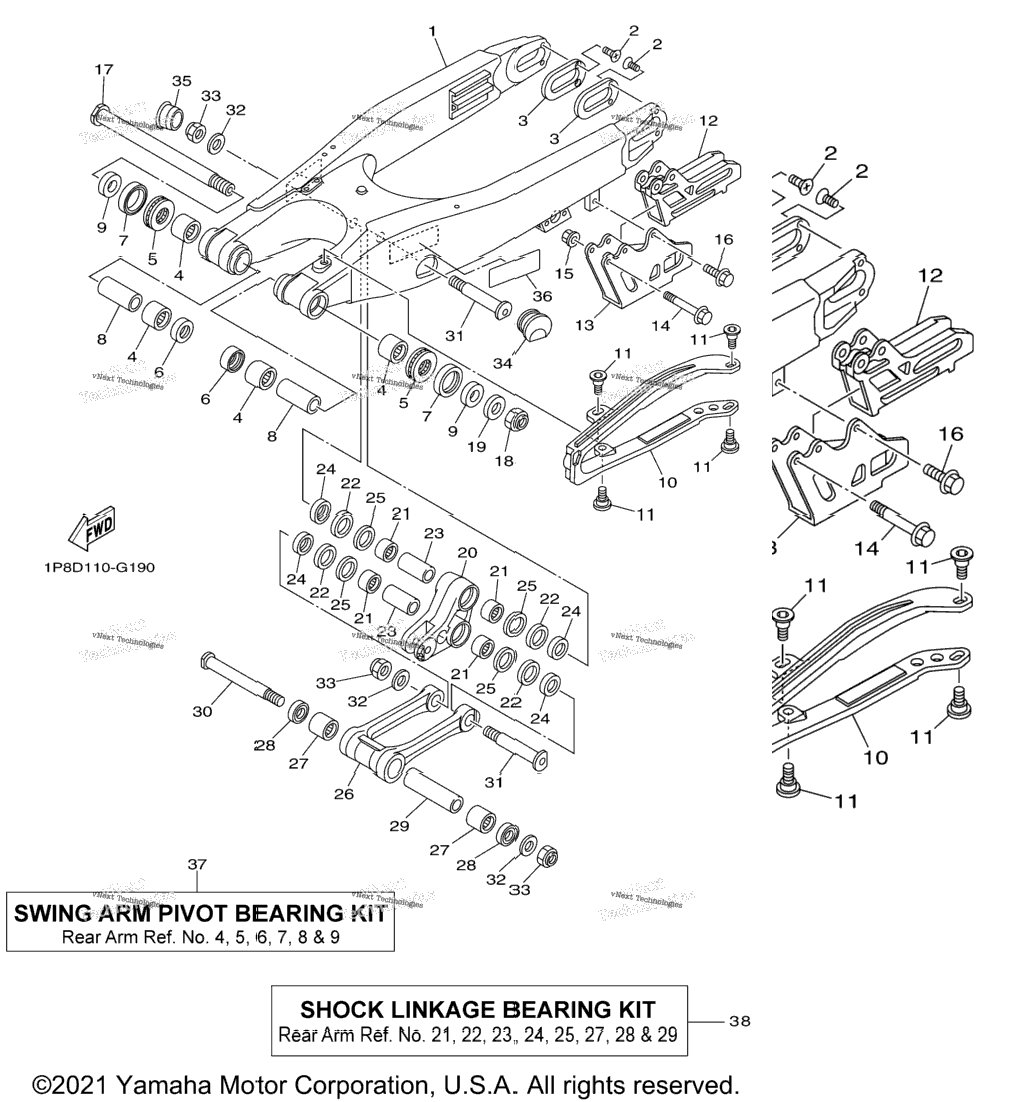

| 1 | 1C3-22110-90-00 | Rear Arm Comp | 1 шт. | — | |
|
| 2 | 90151-04003-00 | Screw, Countersunk | 4 шт. | — | |
|
| 3 | 1P8-22355-00-00 | Patch | 2 шт. | — | |
|
| 4 | 93317-22262-00 | Bearing INCL. IN SWING ARM PIVOT BEARING KIT | 4 шт. | — | |
|
| 5 | 93342-22217-00 | Bearing INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 6 | 93106-22002-00 | Oil Seal INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 7 | 93109-28043-00 | Oil Seal INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 8 | 90387-18004-00 | Collar INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 9 | 90387-18012-00 | Collar INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 10 | 2S2-22151-70-00 | Seal, Guard | 1 шт. | — | |
|
| 11 | 1C3-22969-90-00 | Screw, 1 | 4 шт. | — | |
|
| 12 | 2S2-22199-70-00 | Support, Chain | 1 шт. | — | |
|
| 13 | 2S2-22128-70-00 | Cover, Thrust 1 | 1 шт. | — | |
|
| 14 | 90105-06104-00 | Bolt, Flange | 2 шт. | — | |
|
| 15 | 90179-06028-00 | Nut | 2 шт. | — | |
|
| 16 | 90105-06105-00 | Bolt, Flange | 1 шт. | — | |
|
| 17 | 1C3-22141-10-00 | Shaft, Pivot | 1 шт. | — | |
|
| 18 | 90185-16002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 19 | 90201-16018-00 | Washer, Plate | 1 шт. | — | |
|
| 20 | 1C3-2217A-00-00 | Arm, Relay | 1 шт. | — | |
|
| 21 | 93315-32166-00 | Bearing INCL. IN SHOCK LINKAGE BEARING KIT | 4 шт. | — | |
|
| 22 | 93109-25001-00 | Oil Seal INCL. IN SHOCK LINKAGE BEARING KIT | 4 шт. | — | |
|
| 23 | 90387-16025-00 | Collar INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 24 | 90209-16011-00 | Washer INCL. IN SHOCK LINKAGE BEARING KIT | 4 шт. | — | |
|
| 25 | 90201-21014-00 | Washer, Plate INCL. IN SHOCK LINKAGE BEARING KIT | 4 шт. | — | |
|
| 26 | 1C3-2217F-50-00 | Rod, Connecting 1 | 1 шт. | — | |
|
| 27 | 93315-32166-00 | Bearing INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 28 | 93109-21001-00 | Oil Seal INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 29 | 90387-14005-00 | Collar INCL. IN SHOCK LINKAGE BEARING KIT | 1 шт. | — | |
|
| 30 | 90387-14016-00 | Collar | 1 шт. | — | |
|
| 31 | 1C3-22121-00-00 | Shaft 1 | 1 шт. | — | |
|
| 32 | 1C3-22122-00-00 | Shaft 2 | 2 шт. | — | |
|
| 33 | 90201-14020-00 | Washer, Plate | 3 шт. | — | |
|
| 34 | 90185-14010-00 | Nut, Self-Locking | 3 шт. | — | |
|
| 35 | 1C3-2135F-00-00 | Cover | 1 шт. | — | |
|
| 36 | 1C3-2139R-00-00 | Cover 2 | 1 шт. | — | |
|
| 37 | 3RV-21668-A0-00 | Label, Tire | 1 шт. | — | |
|
| 38 | 1HC-W002C-00-00 | Swing Arm Pivot Bearing Kit | 1 шт. | — | |
|
| 39 | 1P8-W002E-00-00 | Shock Linkage Bearing Kit | 1 шт. | — | |
|
