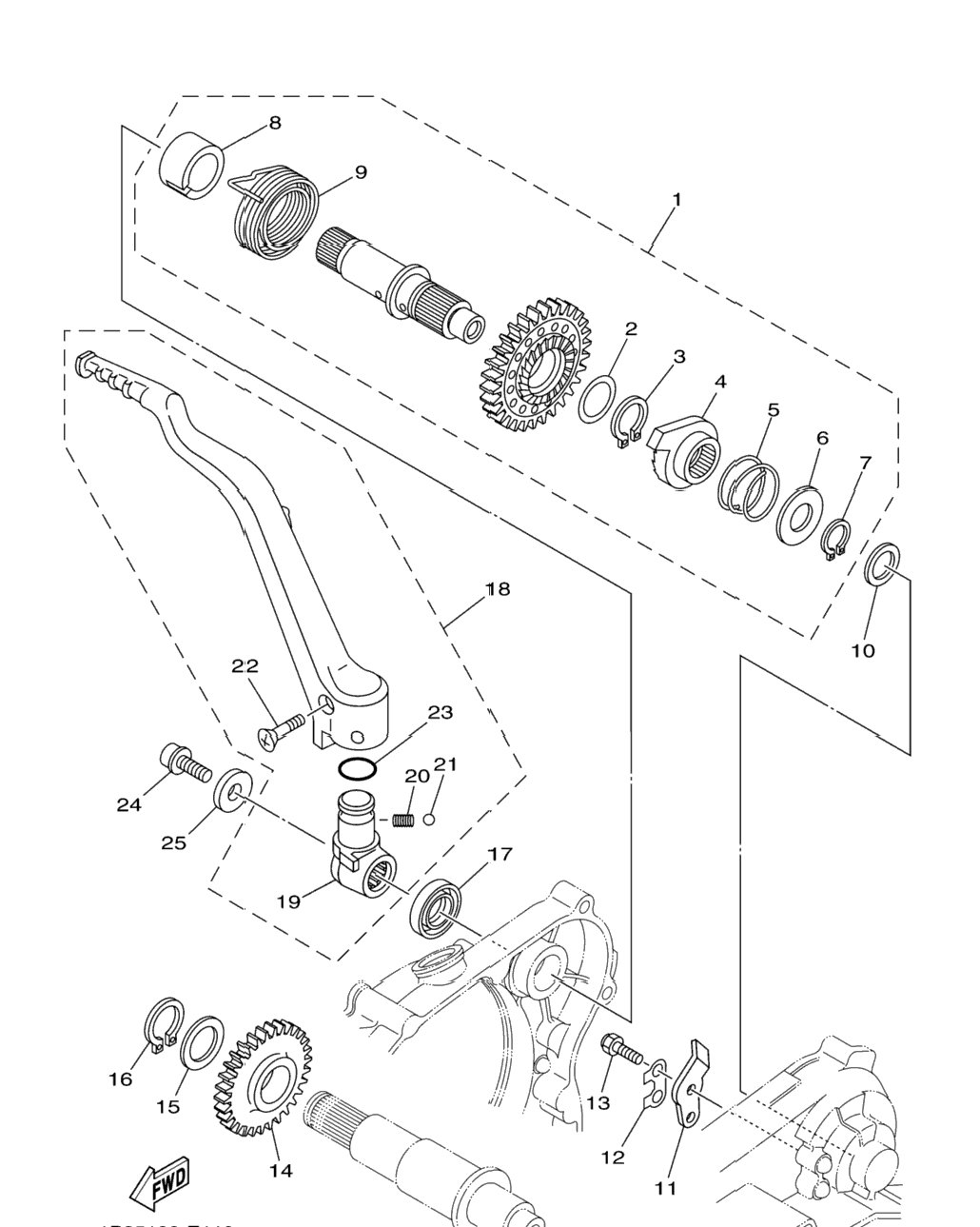

| 1 | 5NX-15601-10-00 | Kick Shaft Assy | 1 шт. | — | |
|
| 2 | 90201-20685-00 | . .Washer, Plate (T=0.5) | 1 шт. | — | |
|
| 3 | 93410-20038-00 | . Circlip | 1 шт. | — | |
|
| 4 | 4GY-15671-00-00 | . .Wheel, Ratchet | 1 шт. | — | |
|
| 5 | 90501-16016-00 | . .Spring, Compression | 1 шт. | — | |
|
| 6 | 90201-167P7-00 | . Washer, Plate | 1 шт. | — | |
|
| 7 | 99009-16400-00 | . .Circlip | 1 шт. | — | |
|
| 8 | 5NL-15664-00-00 | . .Guide, Spring | 1 шт. | — | |
|
| 9 | 90508-30743-00 | . .Spring, Torsion | 1 шт. | — | |
|
| 10 | 90201-162H4-00 | Washer, Plate | 1 шт. | — | |
|
| 11 | 214-15674-00-00 | Guide, Ratchet Wheel | 1 шт. | — | |
|
| 12 | 214-15686-00-00 | Washer, Lock | 1 шт. | — | |
|
| 13 | 97022-06016-00 | Bolt, Hexagon | 2 шт. | — | |
|
| 14 | 5CU-15651-00-00 | Gear, Kick Idle | 1 шт. | — | |
|
| 15 | 90201-20276-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 16 | 99009-20400-00 | Circlip | 1 шт. | — | |
|
| 17 | 93102-18278-00 | Oil Seal | 1 шт. | — | |
|
| 18 | 5NX-15620-20-00 | Kick Crank Assy | 1 шт. | — | |
|
| 19 | 5NX-15621-10-00 | . .Boss, Kick Crank | 1 шт. | — | |
|
| 20 | 90501-147A5-00 | . .Spring, Compression | 1 шт. | — | |
|
| 21 | 93507-32009-00 | . .Ball | 1 шт. | — | |
|
| 22 | 90151-06045-00 | . .Screw, Countersunk | 1 шт. | — | |
|
| 23 | 93210-17570-00 | . .O-Ring | 1 шт. | — | |
|
| 24 | 90110-08052-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 25 | 90201-08048-00 | Washer, Plate | 1 шт. | — | |
|
