Transmission

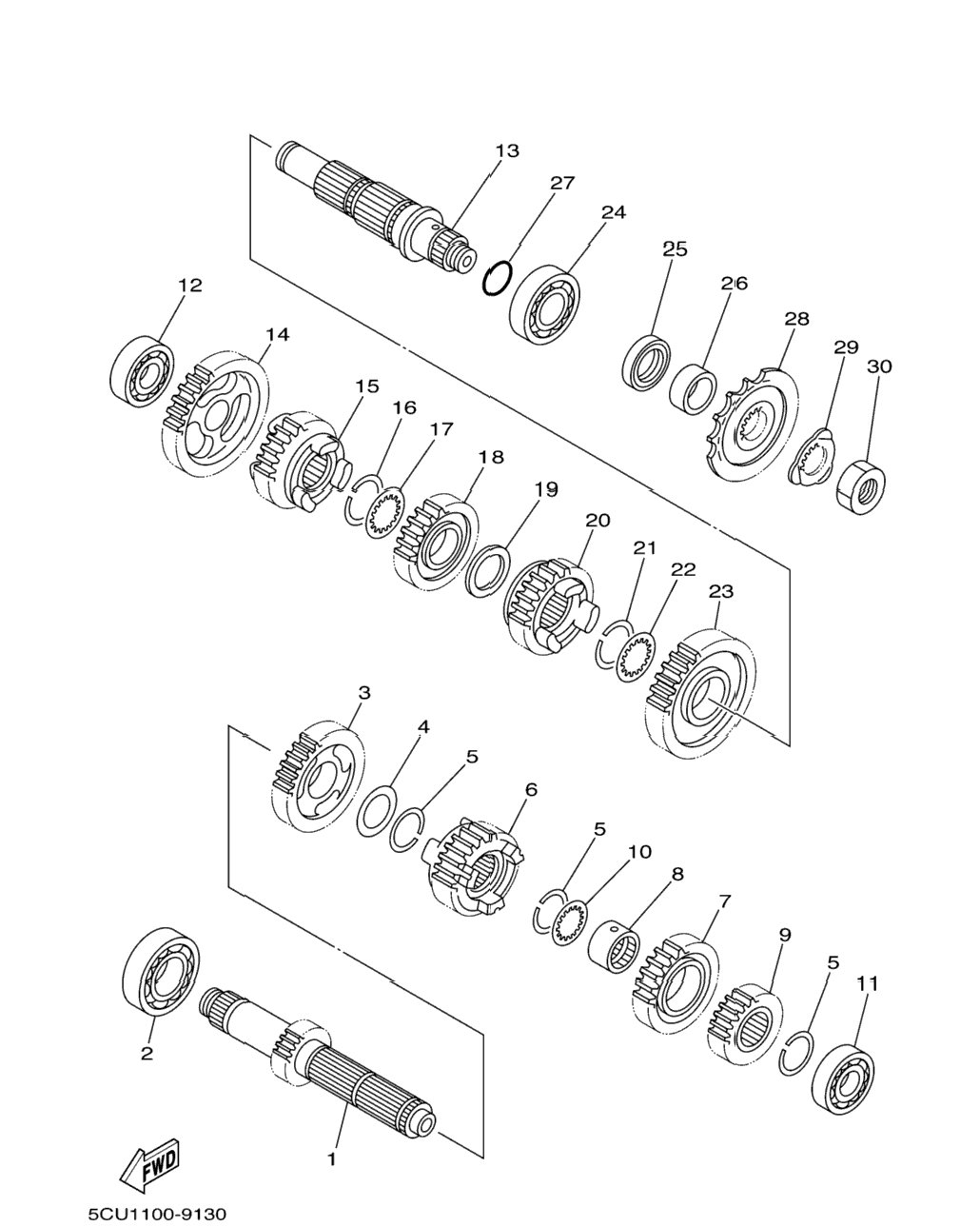

Схема Transmission
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 5BE-17411-00-00 | Axle, Main (14T) | 1 шт. | — | |
|
| 2 | 93306-20540-00 | Bearing | 1 шт. | — | |
|
| 3 | 5BE-17151-00-00 | Gear, 5Th Pinion (21T) | 1 шт. | — | |
|
| 4 | 90201-253K0-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 5 | 93440-25084-00 | Circlip | 3 шт. | — | |
|
| 6 | 5CU-17131-01-00 | Gear, 3Rd Pinion (18T) | 1 шт. | — | |
|
| 7 | 5BE-17141-30-00 | Gear, 4Th Pinion (22T) | 1 шт. | — | |
|
| 8 | 90387-2113G-00 | Collar | 1 шт. | — | |
|
| 9 | 5JG-17121-10-00 | Gear, 2Nd Pinion (15T) | 1 шт. | — | |
|
| 10 | 90209-21332-00 | Washer | 1 шт. | — | |
|
| 11 | 93306-00442-00 | Bearing | 1 шт. | — | |
|
| 12 | 93306-00426-00 | Bearing | 1 шт. | — | |
|
| 13 | 5BE-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 14 | 5BE-17211-00-00 | Gear, 1St Wheel (27T) | 1 шт. | — | |
|
| 15 | 5BE-17251-10-00 | Gear, 5Th Wheel (20T) | 1 шт. | — | |
|
| 16 | 93440-25084-00 | Circlip | 1 шт. | — | |
|
| 17 | 90209-21332-00 | Washer | 1 шт. | — | |
|
| 18 | 5BE-17231-00-00 | Gear, 3Rd Wheel (23T) | 1 шт. | — | |
|
| 19 | 90201-253K0-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 20 | 5JG-17241-00-00 | Gear, 4Th Wheel (24T) | 1 шт. | — | |
|
| 21 | 93440-28062-00 | Circlip | 1 шт. | — | |
|
| 22 | 90209-26348-00 | Washer | 1 шт. | — | |
|
| 23 | 5JG-17221-10-00 | Gear, 2Nd Wheel (23T) | 1 шт. | — | |
|
| 24 | 93306-20574-00 | Bearing | 1 шт. | — | |
|
| 25 | 93102-32337-00 | Oil Seal | 1 шт. | — | |
|
| 26 | 90387-2515B-00 | Collar | 1 шт. | — | |
|
| 27 | 93210-22298-00 | O-Ring | 1 шт. | — | |
|
| 28 | 9383E-13216-00 | Sprocket,Drive (13T) AP | 1 шт. | — | |
|
| 29 | 9383E-14215-00 | Sprocket,Drive (14T) STD | 1 шт. | — | |
|
| 30 | 90215-21256-00 | Washer, Lock | 1 шт. | — | |
|
| 31 | 90179-20255-00 | Nut | 1 шт. | — | |
|
