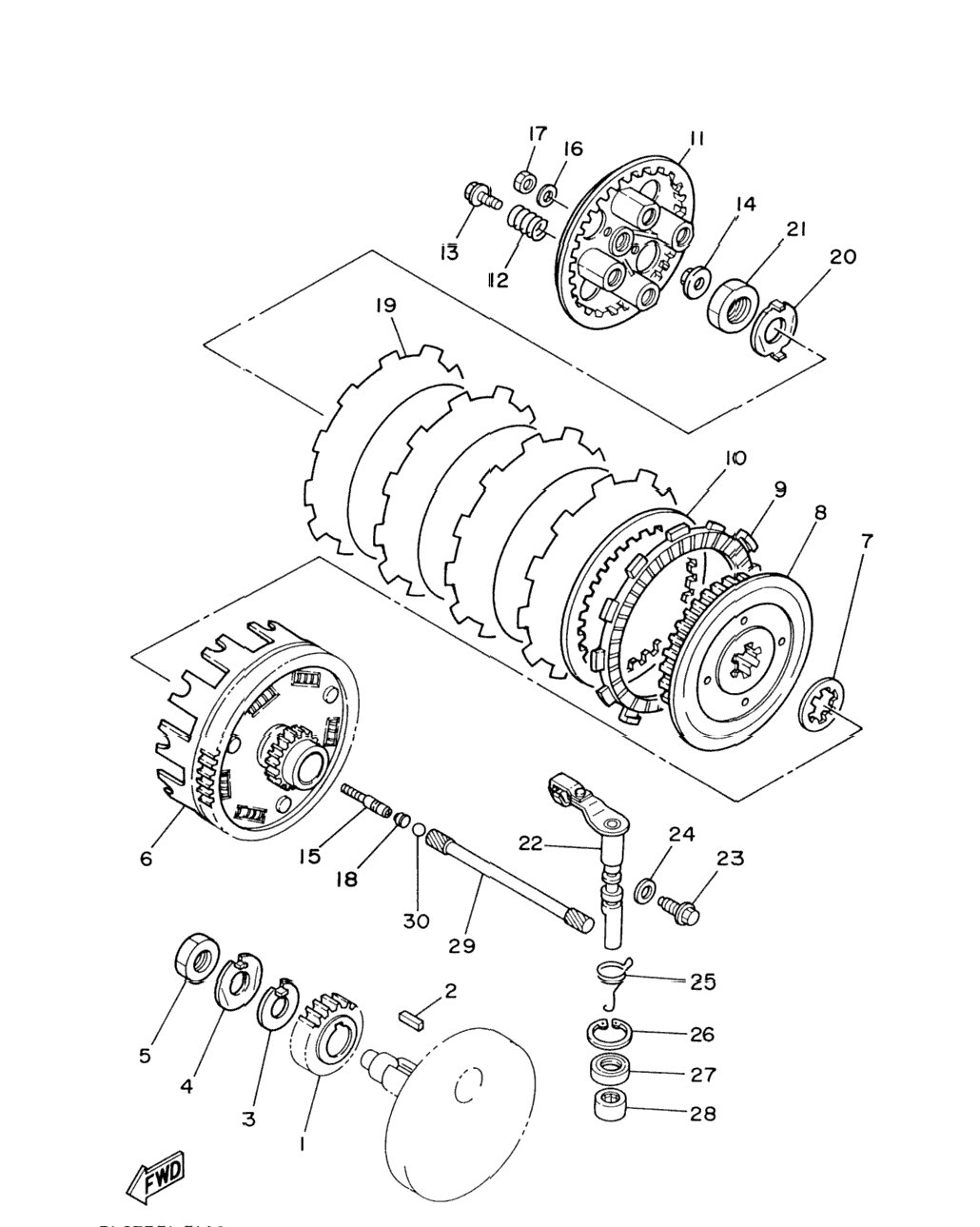

| 1 | 3Y6-16111-03-00 | Gear, Primary Drive (23T) | 1 шт. | — | |
|
| 2 | 90282-07023-00 | Key, Straight | 1 шт. | — | |
|
| 3 | 90215-16156-00 | Washer, Lock | 1 шт. | — | |
|
| 4 | 90215-16222-00 | Washer, Lock | 1 шт. | — | |
|
| 5 | 90170-16256-00 | Nut | 1 шт. | — | |
|
| 6 | 2UJ-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 7 | 30X-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 8 | 30X-16371-00-00 | Boss, Clutch | 1 шт. | — | |
|
| 9 | 5Y1-16331-01-00 | Plate, Friction 2 | 4 шт. | — | |
|
| 10 | 3J2-16324-00-00 | Plate, Clutch 1 (T=2.0) | 4 шт. | — | |
|
| 11 | 30X-16351-02-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 12 | 90501-26148-00 | Spring, Compression | 4 шт. | — | |
|
| 13 | 90159-06016-00 | Screw, With Washer | 4 шт. | — | |
|
| 14 | 1W1-16358-01-00 | Plate, Push | 1 шт. | — | |
|
| 15 | 4DN-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 16 | 92907-06200-00 | Washer | 1 шт. | — | |
|
| 17 | 95307-06600-00 | .Nut | 1 шт. | — | |
|
| 18 | 3YX-1635A-00-00 | Seal, Rod Push | 1 шт. | — | |
|
| 19 | 31A-16321-01-00 | Plate, Friction | 1 шт. | — | |
|
| 20 | 90215-16320-00 | Washer, Lock | 1 шт. | — | |
|
| 21 | 90170-16326-00 | Nut | 1 шт. | — | |
|
| 22 | 2UJ-16380-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 23 | 90149-08067-00 | Screw | 1 шт. | — | |
|
| 24 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 25 | 90508-14433-00 | Spring, Torsion | 1 шт. | — | |
|
| 26 | 93420-28055-00 | Circlip | 1 шт. | — | |
|
| 27 | 93102-14209-00 | Oil Seal | 1 шт. | — | |
|
| 28 | 93315-31428-00 | Bearing | 1 шт. | — | |
|
| 29 | 2UJ-16357-00-00 | Rod, Push 2 | 0 шт. | — | |
|
| 30 | 93511-32017-00 | Ball | 1 шт. | — | |
|
