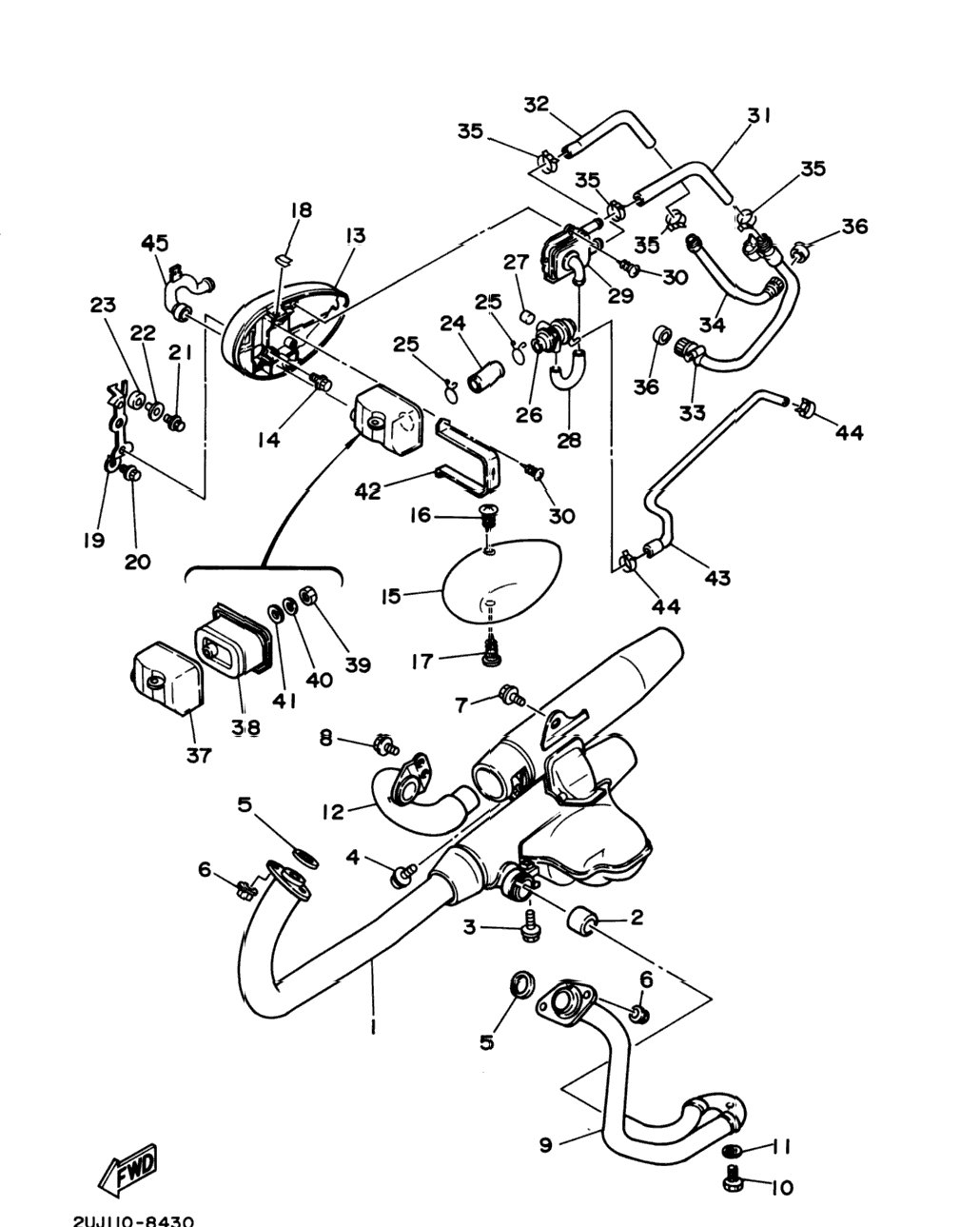

| 1 | 2UJ-14703-02-00 | Muffler Comp. 1 | 1 шт. | — | |
|
| 2 | 4FU-14714-00-00 | Gasket, Muffler | 1 шт. | — | |
|
| 3 | 95817-08035-00 | Bolt, Flange | 1 шт. | — | |
|
| 4 | 95807-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 5 | 3DM-14613-00-00 | Gasket, Exhaust Pipe | 2 шт. | — | |
|
| 6 | 90179-06668-00 | Nut | 4 шт. | — | |
|
| 7 | 95807-10014-00 | Bolt, Flange | 1 шт. | — | |
|
| 8 | 95807-08012-00 | Bolt, Flange | 2 шт. | — | |
|
| 9 | 2UJ-14621-00-00 | Pipe, Exhaust 2 | 1 шт. | — | |
|
| 10 | 90101-06576-00 | Bolt | 1 шт. | — | |
|
| 11 | 92990-06600-00 | Washer, Plate | 1 шт. | — | |
|
| 12 | 2UJ-14631-00-00 | Pipe, Exhaust 3 | 1 шт. | — | |
|
| 13 | 2GV-14663-00-00 | Plate, Air Cleaner | 1 шт. | — | |
|
| 14 | 95807-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 15 | 2GV-14603-00-00 | Cover 1 | 1 шт. | — | |
|
| 16 | 97704-40012-00 | Screw, Tapping | 1 шт. | — | |
|
| 17 | 90163-04003-00 | Screw, Tapping | 1 шт. | — | |
|
| 18 | 90183-04027-00 | Nut, Spring | 2 шт. | — | |
|
| 19 | 2UJ-14484-00-00 | Plate, Cleaner Case Fitting | 1 шт. | — | |
|
| 20 | 95807-06010-00 | Bolt, Flange | 1 шт. | — | |
|
| 21 | 95807-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 22 | 90387-07391-00 | Collar | 1 шт. | — | |
|
| 23 | 90385-10026-00 | Bush | 1 шт. | — | |
|
| 24 | 3BM-14882-00-00 | Hose, Bend 2 | 1 шт. | — | |
|
| 25 | 90467-26111-00 | Clip | 2 шт. | — | |
|
| 26 | 3BG-14840-00-00 | Air Cut Valve Assy | 1 шт. | — | |
|
| 27 | 90338-10132-00 | Plug | 1 шт. | — | |
|
| 28 | 3BM-14883-00-00 | Hose, Bend 3 | 1 шт. | — | |
|
| 29 | 42H-14808-00-00 | Reed Valve Assy | 1 шт. | — | |
|
| 30 | 97707-60114-00 | Screw, Tapping | 0 шт. | — | |
|
| 31 | 3BG-14884-00-00 | Hose, Bend 4 | 1 шт. | — | |
|
| 32 | 3BG-14885-00-00 | Hose, Bend 5 | 1 шт. | — | |
|
| 33 | 3BG-14873-00-00 | Pipe 3 | 1 шт. | — | |
|
| 34 | 3BG-14874-00-00 | Pipe 4 | 1 шт. | — | |
|
| 35 | 90468-08104-00 | Clip | 4 шт. | — | |
|
| 36 | 4KM-14714-01-00 | Gasket, Muffler | 2 шт. | — | |
|
| 37 | 42H-14857-00-00 | Case, Air Cleaner | 1 шт. | — | |
|
| 38 | 3BG-14858-00-00 | Cap, Case | 1 шт. | — | |
|
| 39 | 95307-05600-00 | Nut | 1 шт. | — | |
|
| 40 | 92907-05200-00 | Washer | 1 шт. | — | |
|
| 41 | 90202-05057-00 | Washer, Plate | 1 шт. | — | |
|
| 42 | 3BM-14867-00-00 | Bracket | 1 шт. | — | |
|
| 43 | 3BG-13542-00-00 | Hose, Vacuum Sensing 1 | 1 шт. | — | |
|
| 44 | 90467-08092-00 | Clip | 2 шт. | — | |
|
| 45 | 1TA-14881-00-00 | Hose, Bend 1 | 1 шт. | — | |
|
