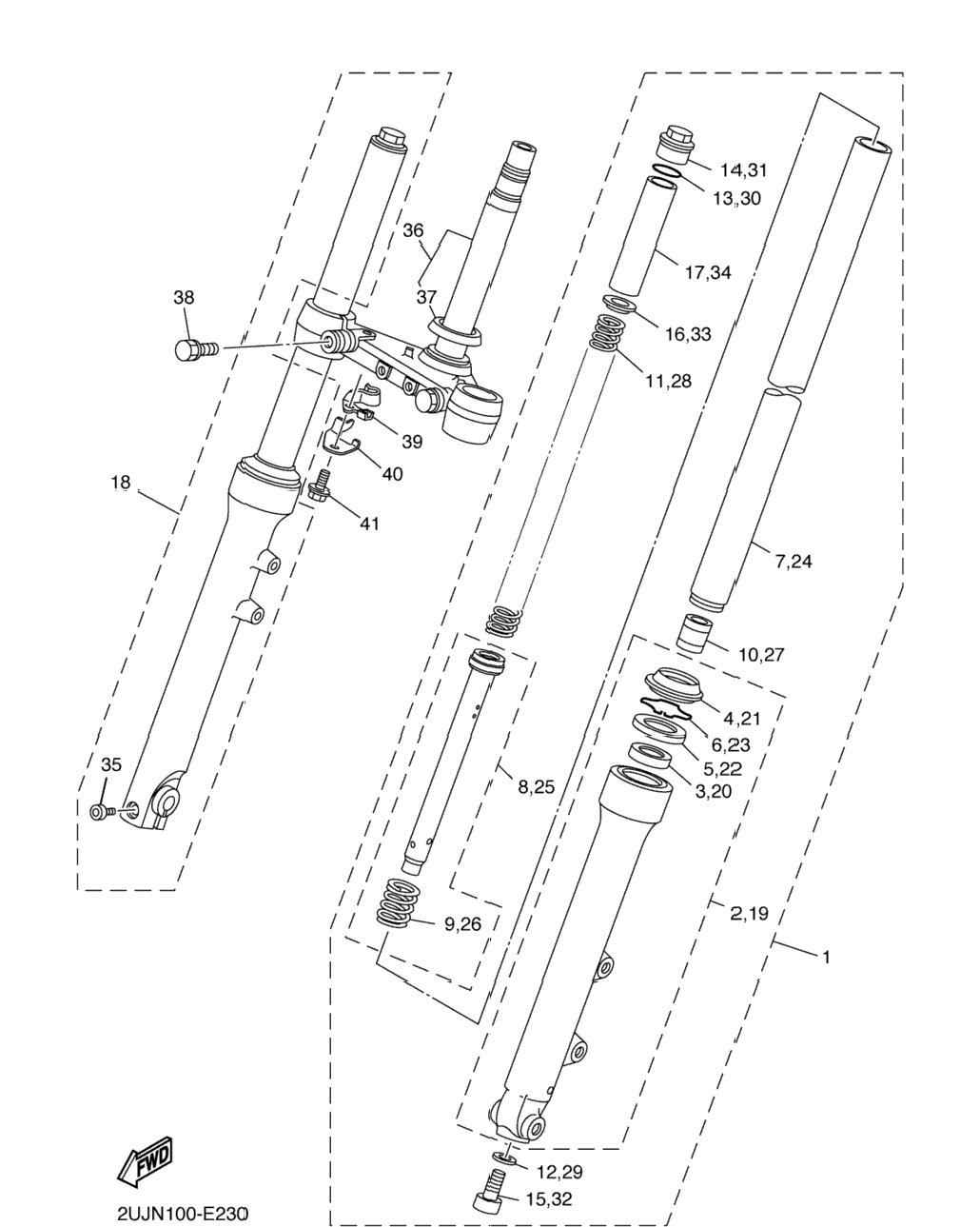

| 1 | 2UJ-23102-30-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 2UJ-23126-30-00 | . .Tube, Outer (L.H) | 1 шт. | — | |
|
| 3 | 51Y-23125-00-00 | . . ..Metal, Slide 1 | 1 шт. | — | |
|
| 4 | 2UJ-23144-00-00 | . . ..Seal, Dust | 1 шт. | — | |
|
| 5 | 2UJ-23145-00-00 | . . ..Oil Seal | 1 шт. | — | |
|
| 6 | 22W-23153-L0-00 | . . ..Ring, Snap | 1 шт. | — | |
|
| 7 | 2UJ-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 8 | 2UJ-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 9 | 2W6-23151-00-00 | . . ..Spring, Rebound | 0 шт. | — | |
|
| 10 | 3R6-23173-L0-00 | . .Spindle, Taper | 1 шт. | — | |
|
| 11 | 2UJ-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 12 | 509-23158-L0-00 | . .Gasket (KYB) | 1 шт. | — | |
|
| 13 | 3J2-23114-00-00 | . .O-Ring | 1 шт. | — | |
|
| 14 | 2JN-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 15 | 278-23181-50-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 16 | 3DM-23149-10-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 17 | 15R-23118-00-00 | . .Spacer | 0 шт. | — | |
|
| 18 | 2UJ-23103-30-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 19 | 2UJ-23136-30-00 | . .Tube, Outer (Right) | 1 шт. | — | |
|
| 20 | 51Y-23125-00-00 | . . ..Metal, Slide 1 | 1 шт. | — | |
|
| 21 | 2UJ-23144-00-00 | . . ..Seal, Dust | 1 шт. | — | |
|
| 22 | 2UJ-23145-00-00 | . . ..Oil Seal | 1 шт. | — | |
|
| 23 | 22W-23153-L0-00 | . . ..Ring, Snap | 1 шт. | — | |
|
| 24 | 2UJ-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 25 | 2UJ-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 26 | 2W6-23151-00-00 | . . ..Spring, Rebound | 0 шт. | — | |
|
| 27 | 3R6-23173-L0-00 | . .Spindle, Taper | 1 шт. | — | |
|
| 28 | 2UJ-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 29 | 509-23158-L0-00 | . .Gasket (KYB) | 1 шт. | — | |
|
| 30 | 3J2-23114-00-00 | . .O-Ring | 1 шт. | — | |
|
| 31 | 2JN-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 32 | 278-23181-50-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 33 | 3DM-23149-10-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 34 | 15R-23118-00-00 | . .Spacer | 0 шт. | — | |
|
| 35 | 91314-08035-00 | . Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 36 | 2UJ-23340-40-00 | Under Bracket Comp | 1 шт. | — | |
|
| 37 | 5VC-23462-00-00 | . .Seal, Dust | 1 шт. | — | |
|
| 38 | 2UJ-23346-10-00 | Bolt 1 | 2 шт. | — | |
|
| 39 | 3DM-25886-10-00 | Holder, Brake Hose | 1 шт. | — | |
|
| 40 | 2UJ-26114-00-00 | Stopper, 1 | 0 шт. | — | |
|
| 41 | 95807-06010-00 | Bolt, Flange | 1 шт. | — | |
|
