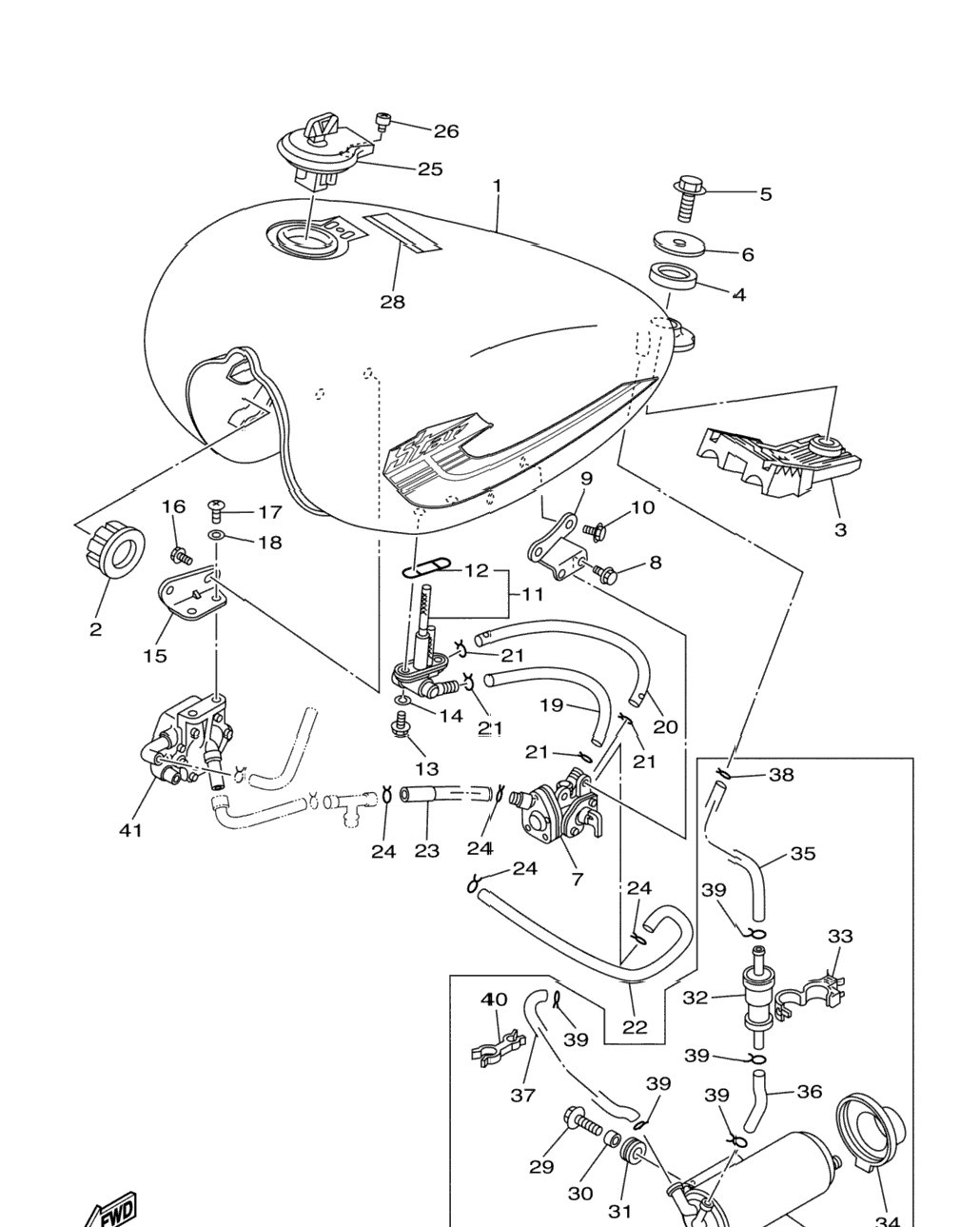

| 1 | 3LS-Y2410-T3-W2 | Fuel Tank Comp UR49 FOR BWP1 | 0 шт. | — | |
|
| 2 | 3LS-Y2410-T3-W3 | Fuel Tank Comp UR49 FOR DRMK | 1 шт. | — | |
|
| 3 | 3BG-Y2410-02-X6 | Fuel Tank Comp UR FOR CAL BWP1 | 0 шт. | — | |
|
| 4 | 3BG-Y2410-02-X7 | Fuel Tank Comp UR FOR CAL DRMK | 0 шт. | — | |
|
| 5 | 4H7-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 6 | 2UJ-24182-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 7 | 42X-24183-00-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 8 | 95807-08030-00 | Bolt, Flange | 1 шт. | — | |
|
| 9 | 90201-08569-00 | Washer, Plate | 1 шт. | — | |
|
| 10 | 2UJ-24500-10-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 11 | 95024-06010-00 | Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 12 | 2UJ-24544-01-00 | Bracket, Fuel Cock | 1 шт. | — | |
|
| 13 | 95024-06010-00 | Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 14 | 2UJ-24560-10-00 | Filter Assy | 1 шт. | — | |
|
| 15 | 4X8-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 16 | 90149-06011-00 | Screw | 2 шт. | — | |
|
| 17 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 18 | 2UJ-24491-01-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 19 | 95024-06010-00 | Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 20 | 98507-06012-00 | .Screw, Pan Head | 2 шт. | — | |
|
| 21 | 92907-06600-00 | Washer, Plate | 2 шт. | — | |
|
| 22 | 90445-11057-00 | Hose | 1 шт. | — | |
|
| 23 | 90445-11058-00 | Hose | 1 шт. | — | |
|
| 24 | 90467-10008-00 | Clip | 4 шт. | — | |
|
| 25 | 2UJ-24312-10-00 | Pipe 2 | 1 шт. | — | |
|
| 26 | 2UJ-24313-00-00 | Pipe 3 | 1 шт. | — | |
|
| 27 | 90467-10008-00 | Clip | 4 шт. | — | |
|
| 28 | 20K-24602-10-00 | Cap Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 29 | 4X7-24602-10-00 | Cap Assy U49 | 1 шт. | — | |
|
| 30 | 91317-05010-00 | Bolt | 1 шт. | — | |
|
| 31 | 3BG-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 32 | 1TP-2118K-A1-00 | Label, Caution | 1 шт. | — | |
|
| 33 | 90119-06118-00 | Bolt, With Washer FOR CALIFORNIA | 0 шт. | — | |
|
| 34 | 90387-0602R-00 | Collar FOR CALIFORNIA | 0 шт. | — | |
|
| 35 | 90480-14323-00 | Grommet FOR CALIFORNIA | 0 шт. | — | |
|
| 36 | 5PX-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 37 | 90464-15192-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 38 | 2JU-2419E-00-00 | Cover, Canister FOR CALIFORNIA | 0 шт. | — | |
|
| 39 | 3BG-24321-10-00 | Pipe 10 FOR CALIFORNIA | 0 шт. | — | |
|
| 40 | 3BG-24322-10-00 | Pipe 11 FOR CALIFORNIA | 0 шт. | — | |
|
| 41 | 3BG-24323-10-00 | Pipe 12 FOR CALIFORNIA | 0 шт. | — | |
|
| 42 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 43 | 90467-10008-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 44 | 90464-16119-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 45 | 3DM-13910-01-00 | Fuel Pump Assy | 1 шт. | — | |
|
