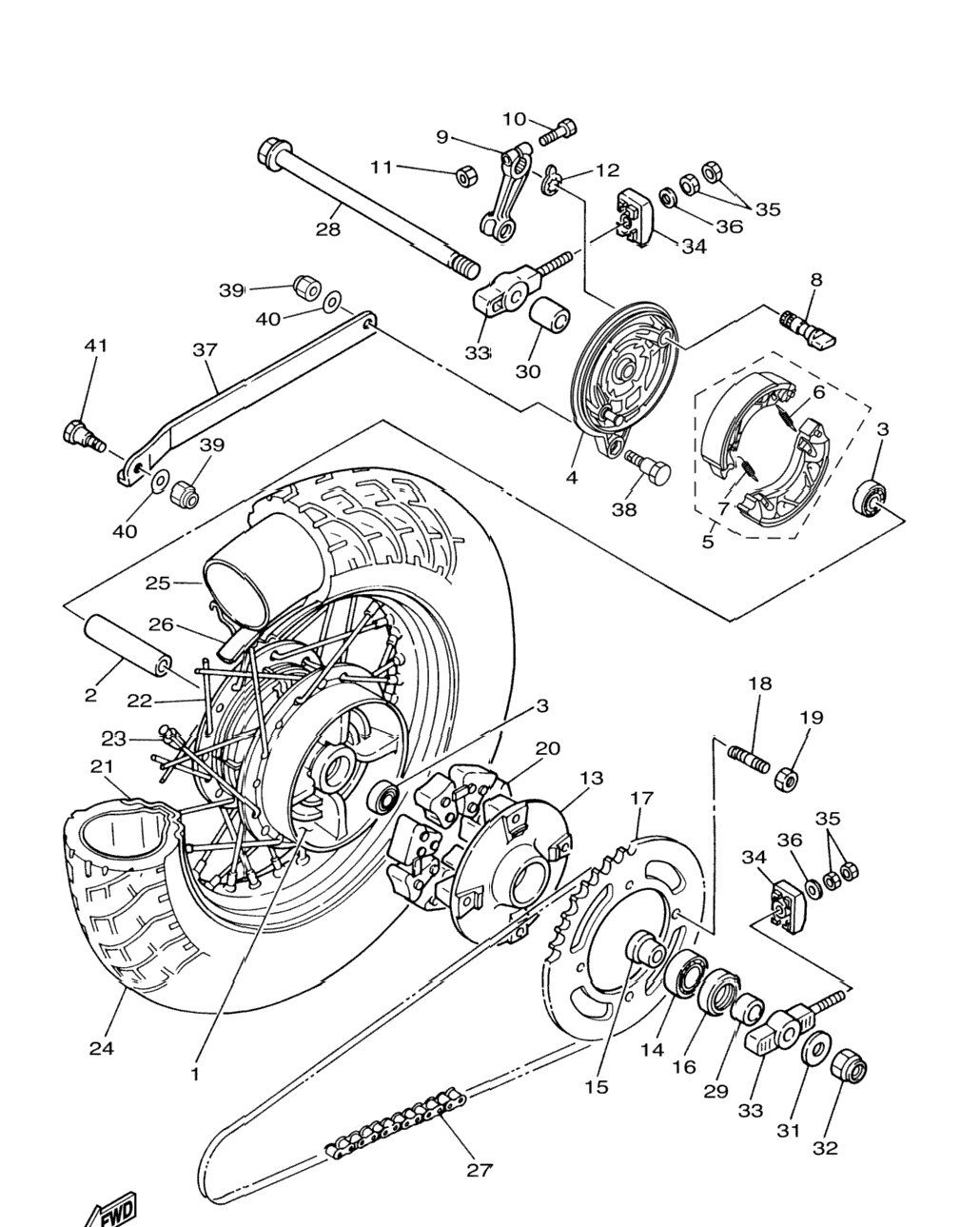

| 1 | 2UJ-25311-10-00 | Hub, Rear | 1 шт. | — | |
|
| 2 | 2UJ-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 3 | 93306-20212-00 | Bearing | 2 шт. | — | |
|
| 4 | 2RH-25321-11-00 | Plate, Brake Shoe | 1 шт. | — | |
|
| 5 | 19D-W253E-00-00 | Brake Shoe Kit | 1 шт. | — | |
|
| 6 | 90506-12001-00 | . .Spring, Tension | 1 шт. | — | |
|
| 7 | 90506-15001-00 | . .Spring, Tension | 1 шт. | — | |
|
| 8 | 2RH-25351-00-00 | Camshaft | 1 шт. | — | |
|
| 9 | 5H0-25355-00-00 | Lever, Camshaft | 1 шт. | — | |
|
| 10 | 90101-06765-00 | Bolt | 1 шт. | — | |
|
| 11 | 95304-06600-00 | Nut | 1 шт. | — | |
|
| 12 | 3Y6-2533A-01-00 | Plate, Indicator | 1 шт. | — | |
|
| 13 | 5Y1-25366-10-00 | Clutch, Hub | 1 шт. | — | |
|
| 14 | 93306-30437-00 | Bearing | 1 шт. | — | |
|
| 15 | 2UJ-25377-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 16 | 93106-30029-00 | Oil Seal | 1 шт. | — | |
|
| 17 | 4DN-25445-30-00 | Sprocket, Driven (45T) | 1 шт. | — | |
|
| 18 | 90116-10485-00 | Bolt, Stud | 4 шт. | — | |
|
| 19 | 95604-10200-00 | Nut, Self-Locking | 4 шт. | — | |
|
| 20 | 5Y1-25364-00-00 | Damper | 4 шт. | — | |
|
| 21 | 94427-15600-00 | Rim (Mt2.75-15 M/C) | 1 шт. | — | |
|
| 22 | 2UJ-25304-02-00 | Spoke Set, Rear | 1 шт. | — | |
|
| 23 | 3HT-25398-00-00 | Balancer, Wheel (15G) UN | 1 шт. | — | |
|
| 24 | 94113-151W8-00 | Tire (130/90-15 M/C 66P C-915) CHENG SHIN | 1 шт. | — | |
|
| 25 | 94213-15259-00 | Tube (130/90-15 Tr4) CHENG SHIN | 1 шт. | — | |
|
| 26 | 94313-15151-00 | Band, Rim (3.00-15) CHENG SHIN | 1 шт. | — | |
|
| 27 | 94581-11114-00 | Chain (Did520ds-114Le) | 1 шт. | — | |
|
| 28 | 4HC-25181-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 29 | 90387-15004-00 | Collar | 1 шт. | — | |
|
| 30 | 90387-153U1-00 | Collar | 1 шт. | — | |
|
| 31 | 92903-14200-00 | Washer | 1 шт. | — | |
|
| 32 | 90185-14002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 33 | 2UJ-25388-00-00 | Puller, Chain 1 | 2 шт. | — | |
|
| 34 | 55K-2539F-00-00 | Plate 1 | 2 шт. | — | |
|
| 35 | 95304-08600-00 | Nut | 4 шт. | — | |
|
| 36 | 92903-08600-00 | Washer, Plate | 2 шт. | — | |
|
| 37 | 2UJ-25371-00-00 | Bar, Tension | 1 шт. | — | |
|
| 38 | 90109-08005-00 | Bolt | 1 шт. | — | |
|
| 39 | 95607-08100-00 | Nut, U | 2 шт. | — | |
|
| 40 | 92907-08600-00 | Washer, Plate | 2 шт. | — | |
|
| 41 | 90109-08003-00 | Bolt | 1 шт. | — | |
|
