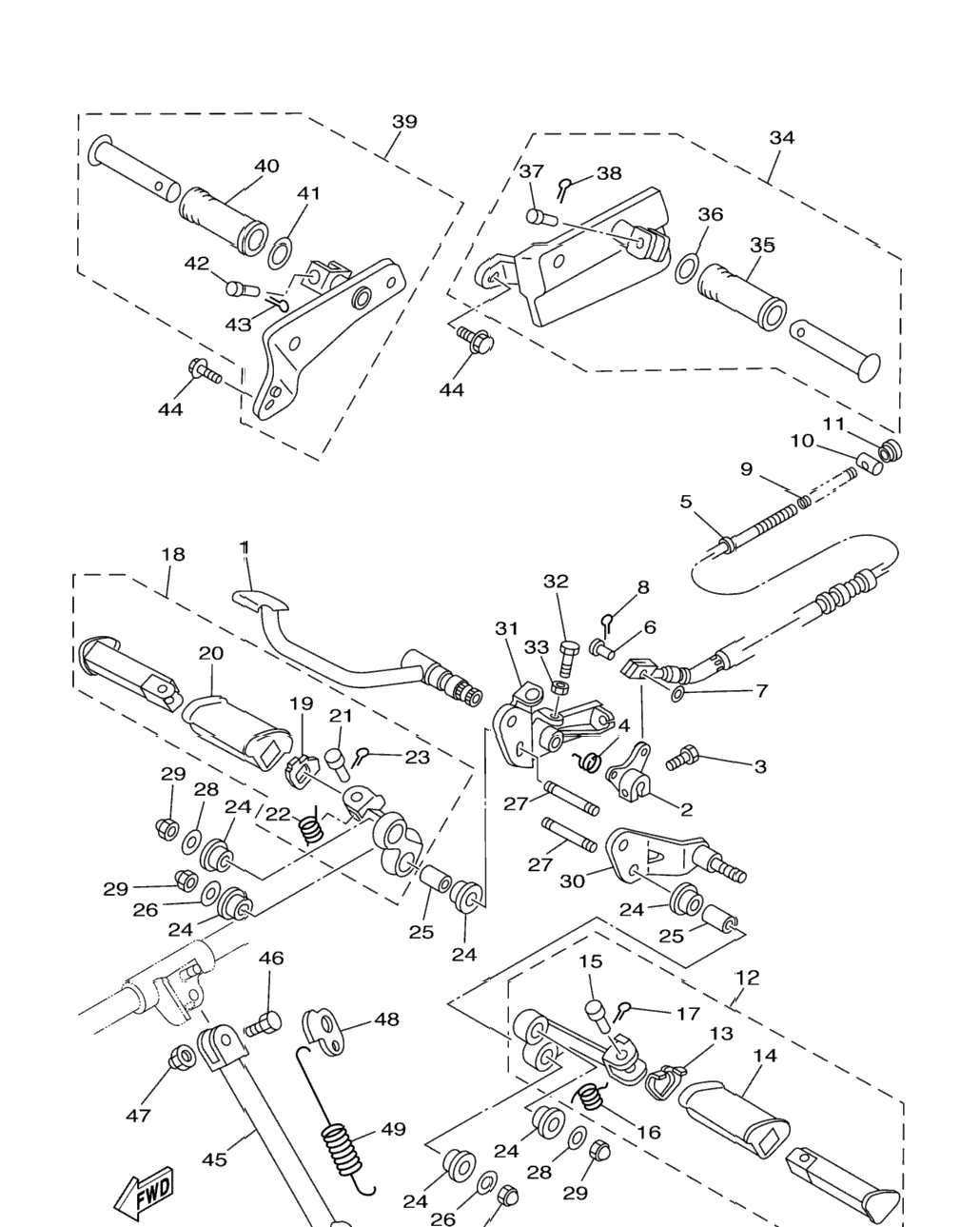

| 1 | 2UJ-27211-01-00 | Pedal, Brake | 1 шт. | — | |
|
| 2 | 2UJ-27262-02-00 | Lever | 1 шт. | — | |
|
| 3 | 97024-06020-00 | Bolt | 1 шт. | — | |
|
| 4 | 2UJ-27216-00-00 | Spring, Return | 1 шт. | — | |
|
| 5 | 2UJ-26351-00-00 | Cable, Brake | 1 шт. | — | |
|
| 6 | 91701-06018-00 | Pin | 1 шт. | — | |
|
| 7 | 92907-06200-00 | Washer | 1 шт. | — | |
|
| 8 | 91401-20012-00 | .Pin, Cotter | 1 шт. | — | |
|
| 9 | 90501-10245-00 | Spring, Compression | 1 шт. | — | |
|
| 10 | 90249-12008-00 | Pin | 1 шт. | — | |
|
| 11 | 90179-06411-00 | Nut | 1 шт. | — | |
|
| 12 | 2UJ-27410-00-00 | Front Footrest Assy (Left) | 1 шт. | — | |
|
| 13 | 4X7-27417-00-00 | . .Washer, Footrest | 1 шт. | — | |
|
| 14 | 4X7-27413-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 15 | 90240-08084-00 | . Pin, Clevis | 1 шт. | — | |
|
| 16 | 90508-20023-00 | . .Spring, Torsion | 1 шт. | — | |
|
| 17 | 91401-25015-00 | . .Pin, Cotter | 1 шт. | — | |
|
| 18 | 2UJ-27420-00-00 | Front Footrest Assy (Right) | 1 шт. | — | |
|
| 19 | 4X7-27417-00-00 | . .Washer, Footrest | 1 шт. | — | |
|
| 20 | 4X7-27413-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 21 | 90240-08084-00 | . Pin, Clevis | 1 шт. | — | |
|
| 22 | 90508-20023-00 | . .Spring, Torsion | 1 шт. | — | |
|
| 23 | 91401-25015-00 | . .Pin, Cotter | 1 шт. | — | |
|
| 24 | 2UJ-27414-00-00 | Damper, Footrest | 8 шт. | — | |
|
| 25 | 90387-100V6-00 | Collar | 4 шт. | — | |
|
| 26 | 90201-100A1-00 | Washer, Plate | 2 шт. | — | |
|
| 27 | 90116-10519-00 | Bolt, Stud | 4 шт. | — | |
|
| 28 | 90201-100A1-00 | Washer, Plate | 2 шт. | — | |
|
| 29 | 95304-10800-00 | Nut, Crown | 0 шт. | — | |
|
| 30 | 2UJ-2741L-00-33 | Bracket 4 YB | 1 шт. | — | |
|
| 31 | 2UJ-2742L-00-33 | Bracket 5 YB | 1 шт. | — | |
|
| 32 | 90153-06008-00 | Screw, Hexagon | 1 шт. | — | |
|
| 33 | 95307-06700-00 | Nut | 1 шт. | — | |
|
| 34 | 2UJ-27430-00-35 | Rear Footrest Assy 1 SL | 1 шт. | — | |
|
| 35 | 120-27433-00-00 | . Cover, Rear Footrest | 1 шт. | — | |
|
| 36 | 90201-20279-00 | . Washer, Plate | 1 шт. | — | |
|
| 37 | 91701-06032-00 | . .Pin | 1 шт. | — | |
|
| 38 | 91401-20012-00 | . .Pin, Cotter | 1 шт. | — | |
|
| 39 | 2UJ-27440-00-35 | Rear Footrest Assy 2 SL | 1 шт. | — | |
|
| 40 | 120-27433-00-00 | . Cover, Rear Footrest | 1 шт. | — | |
|
| 41 | 90201-20279-00 | . Washer, Plate | 1 шт. | — | |
|
| 42 | 91701-06032-00 | . .Pin | 1 шт. | — | |
|
| 43 | 91401-20012-00 | . .Pin, Cotter | 1 шт. | — | |
|
| 44 | 95024-08020-00 | Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 45 | 2UJ-27311-01-00 | Stand, Side | 1 шт. | — | |
|
| 46 | 90109-10474-00 | Bolt | 1 шт. | — | |
|
| 47 | 90185-10037-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 48 | 2KT-27315-00-00 | Link, Side Stand | 1 шт. | — | |
|
| 49 | 2UJ-27316-00-00 | Spring, Side Stand | 1 шт. | — | |
|
