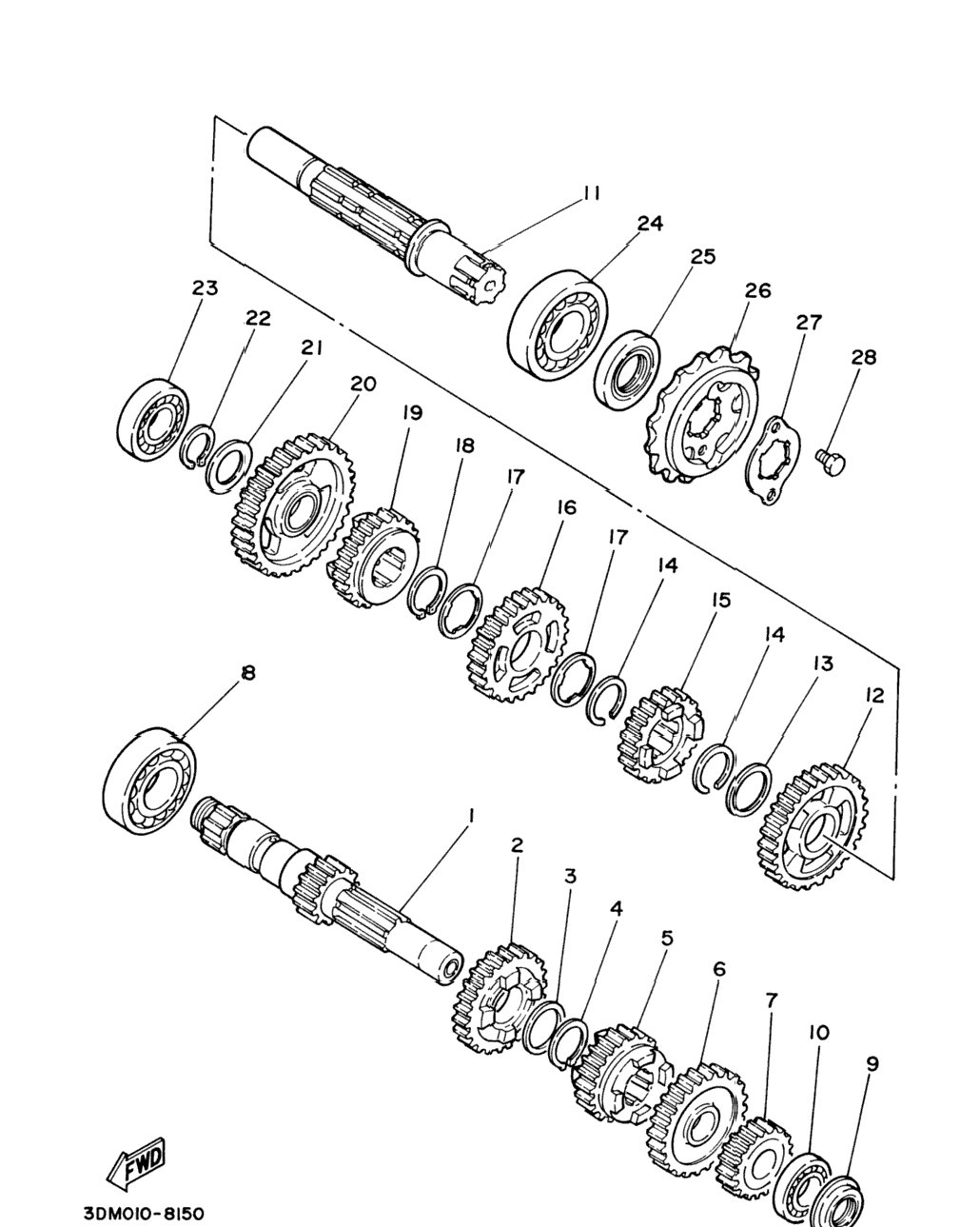

| 1 | 4DN-17411-00-00 | Axle, Main (14T) | 1 шт. | — | |
|
| 2 | 3Y1-17141-01-00 | Gear, 4Th Pinion (26T) | 0 шт. | — | |
|
| 3 | 90201-22793-00 | Washer, Plate | 1 шт. | — | |
|
| 4 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 5 | 3Y1-17131-01-00 | Gear, 3Rd Pinion (23T) | 1 шт. | — | |
|
| 6 | 3Y1-17151-01-00 | Gear, 5Th Pinion (28T) | 1 шт. | — | |
|
| 7 | 3Y1-17121-01-YX | Gear, 2Nd Pinion (19T) | 1 шт. | — | |
|
| 8 | 93306-20501-00 | Bearing | 1 шт. | — | |
|
| 9 | 93101-17093-00 | Oil Seal | 1 шт. | — | |
|
| 10 | 93306-00308-00 | Bearing | 1 шт. | — | |
|
| 11 | 3Y1-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 12 | 3Y1-17221-02-00 | Gear, 2Nd Wheel (32T) | 1 шт. | — | |
|
| 13 | 90201-253K0-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 14 | 93440-25084-00 | Circlip | 2 шт. | — | |
|
| 15 | 3Y1-17251-01-00 | Gear, 5Th Wheel (23T) | 1 шт. | — | |
|
| 16 | 3Y1-17231-02-00 | Gear, 3Rd Wheel (29T) | 1 шт. | — | |
|
| 17 | 90209-22191-00 | Washer | 2 шт. | — | |
|
| 18 | 99009-25400-00 | Circlip | 1 шт. | — | |
|
| 19 | 3Y1-17241-00-00 | Gear, 4Th Wheel (26T) | 0 шт. | — | |
|
| 20 | 3Y1-17211-00-00 | Gear, 1St Wheel (37T) | 1 шт. | — | |
|
| 21 | 90201-20276-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 22 | 99009-20400-00 | Circlip | 1 шт. | — | |
|
| 23 | 93306-00401-00 | Bearing | 1 шт. | — | |
|
| 24 | 93306-30525-00 | Bearing | 1 шт. | — | |
|
| 25 | 93102-25208-00 | Oil Seal | 1 шт. | — | |
|
| 26 | 93834-16100-00 | Sprocket, Drive 16T (3Y11746160 | 1 шт. | — | |
|
| 27 | 3Y1-17456-00-00 | Holder, Sprocket | 1 шт. | — | |
|
| 28 | 97027-06010-00 | Bolt, Hexagon | 2 шт. | — | |
|
