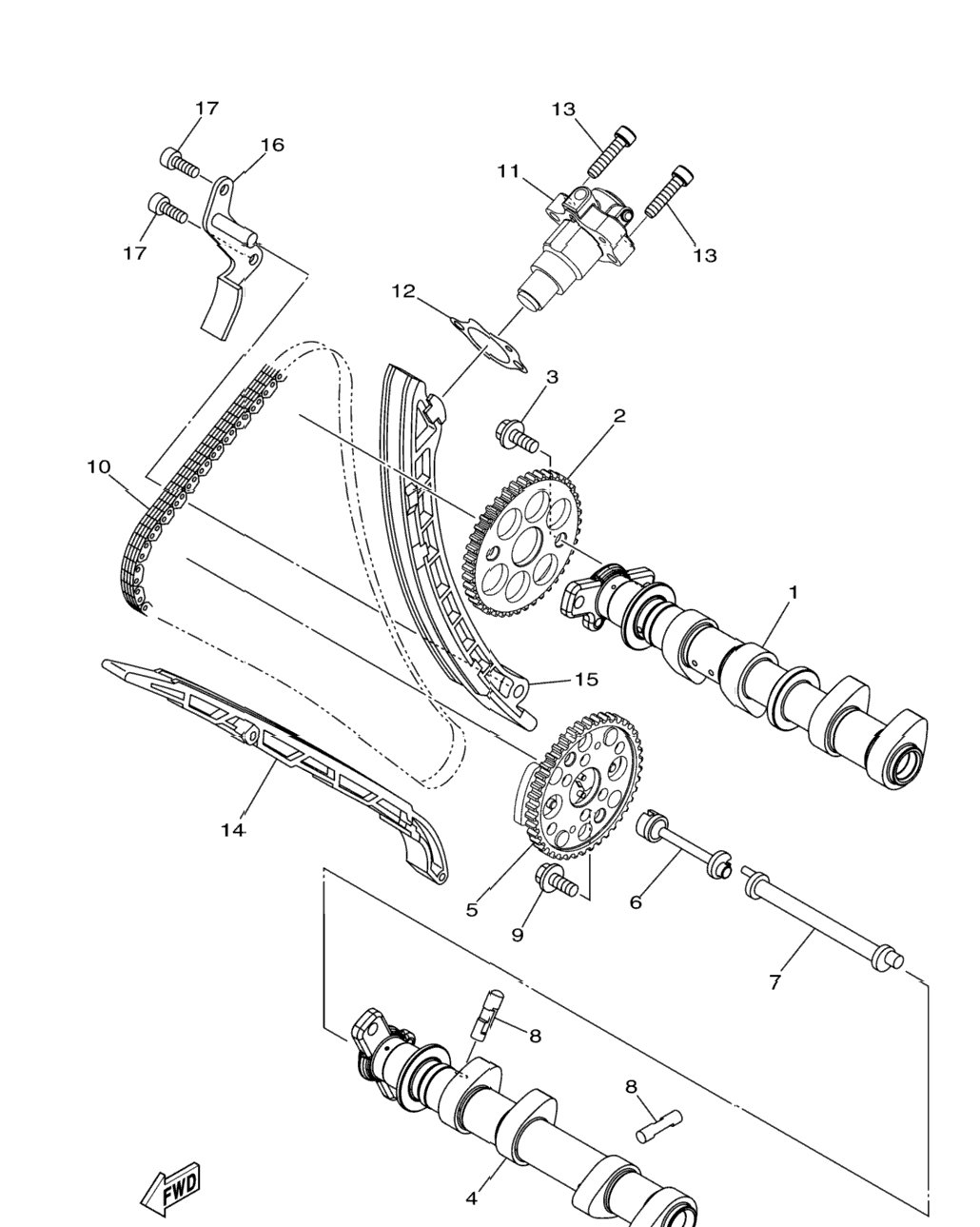

| 1 | 23P-12170-00-00 | Camshaft Assy 1 | 1 шт. | — | |
|
| 2 | 23P-12176-00-00 | Sprocket, Cam Chain (42T) | 1 шт. | — | |
|
| 4 | 23P-12181-00-00 | Camshaft 2 | 1 шт. | — | |
|
| 5 | 23P-12280-00-00 | Decompression Assy | 1 шт. | — | |
|
| 6 | 23P-12247-00-00 | Shaft, 1 | 1 шт. | — | |
|
| 7 | 23P-12257-00-00 | Shaft 2 | 1 шт. | — | |
|
| 8 | 23P-12288-00-00 | Cam, Decompression | 2 шт. | — | |
|
| 9 | 90105-07006-00 | Bolt, Flange | 2 шт. | — | |
|
| 9 | 90105-07006-00 | Bolt, Flange | 2 шт. | — | |
|
| 10 | 94591-61150-00 | Chain (98Xrh2015-150M) | 1 шт. | — | |
|
| 11 | 2BS-12210-00-00 | Tensioner Assy, Cam Chain | 1 шт. | — | |
|
| 12 | 14B-12213-00-00 | Gasket, Tensioner Case | 1 шт. | — | |
|
| 13 | 91312-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 14 | 23P-12251-00-00 | Damper, Chain 1 | 1 шт. | — | |
|
| 15 | 23P-12252-00-00 | Damper, Chain 2 | 1 шт. | — | |
|
| 16 | 23P-12233-00-00 | Plate, Guide Stopper 1 | 1 шт. | — | |
|
| 17 | 90110-06182-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
