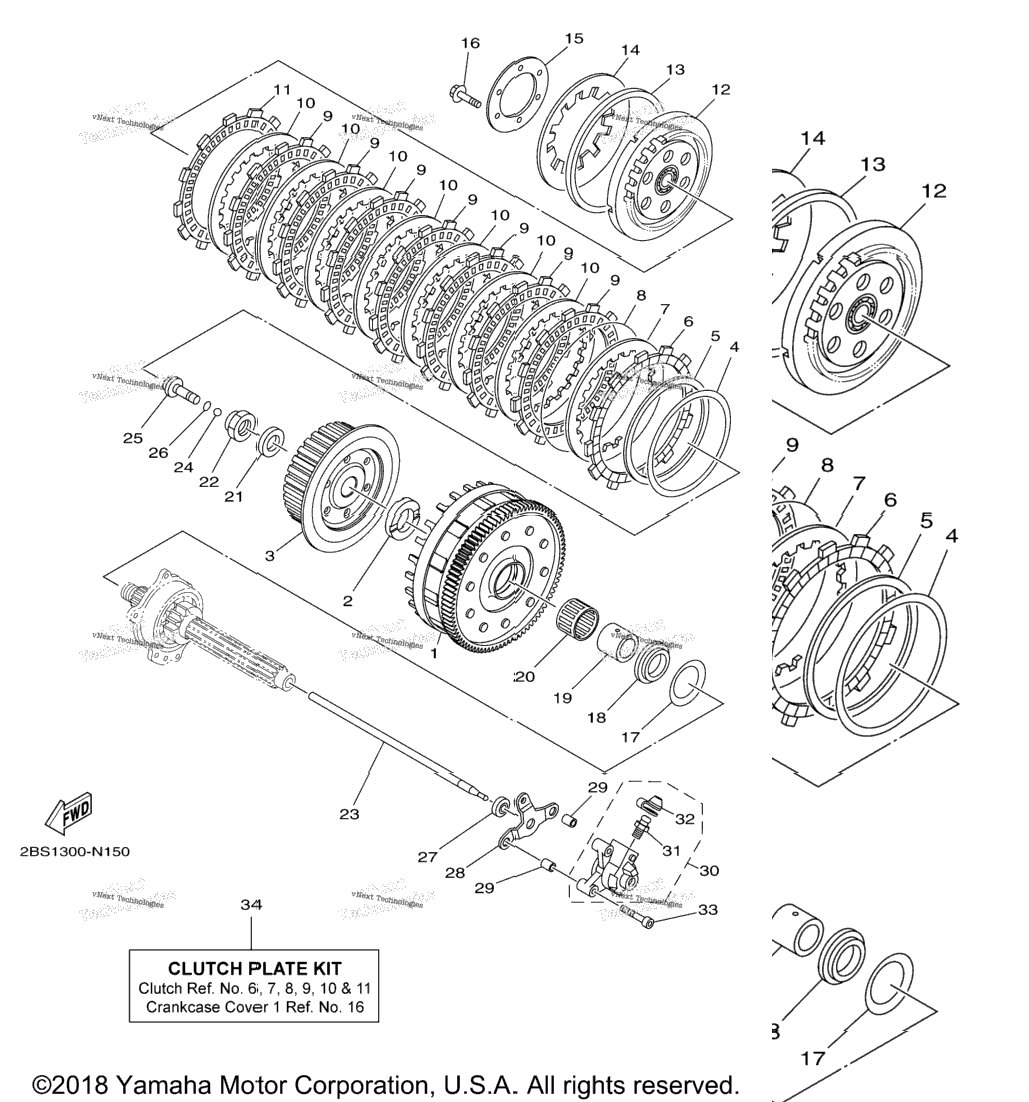

| 1 | 2BS-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 2 | 5YU-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 3 | 23P-16371-00-00 | Boss, Clutch | 1 шт. | — | |
|
| 4 | 36Y-16384-00-00 | Plate, Seat | 1 шт. | — | |
|
| 5 | 36Y-16383-00-00 | Spring, Cushion | 1 шт. | — | |
|
| 6 | 4XV-16331-00-00 | Plate, Friction 2 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 8 | 2H7-16385-00-00 | Ring Set INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 9 | 5JW-16321-10-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 10 | 2H7-16325-00-00 | Plate, Clutch 2 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 10 | 2H7-16325-00-00 | Plate, Clutch 2 INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 11 | 5YU-16321-00-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 12 | 23P-16350-00-00 | Pressure Plate Assy | 1 шт. | — | |
|
| 13 | 36Y-16335-00-00 | Housing, Spring | 1 шт. | — | |
|
| 14 | 5JW-16334-00-00 | Spring, Clutch 2 | 1 шт. | — | |
|
| 15 | 1TX-16352-00-00 | Plate, Pressure 2 | 1 шт. | — | |
|
| 16 | 90105-06191-00 | Bolt, Flange | 6 шт. | — | |
|
| 17 | 3P6-16587-00-00 | Spring, Absorber | 1 шт. | — | |
|
| 18 | 3P6-16183-00-00 | Spacer 3 | 1 шт. | — | |
|
| 19 | 23P-16181-00-00 | Spacer 1 | 1 шт. | — | |
|
| 20 | 93310-33560-00 | Bearing | 1 шт. | — | |
|
| 21 | 90208-20001-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 22 | 90179-20007-00 | Nut | 1 шт. | — | |
|
| 23 | 23P-16357-00-00 | Rod, Push 2 | 1 шт. | — | |
|
| 24 | 93511-32017-00 | Ball | 1 шт. | — | |
|
| 25 | 4KG-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 26 | 93210-06632-00 | .O-Ring | 1 шт. | — | |
|
| 27 | 93109-08061-00 | Oil Seal | 1 шт. | — | |
|
| 28 | 23P-15645-00-00 | Plate | 1 шт. | — | |
|
| 29 | 99590-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 30 | 23P-16381-00-00 | Push Lever Comp | 1 шт. | — | |
|
| 31 | 1UY-25824-51-00 | . .Screw, Bleed | 1 шт. | — | |
|
| 32 | 1UY-25825-51-00 | . .Cap | 1 шт. | — | |
|
| 33 | 90110-06140-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 34 | 23P-W001G-00-00 | Clutch Plate Kit NOT SHOWN | 1 шт. | — | |
|
