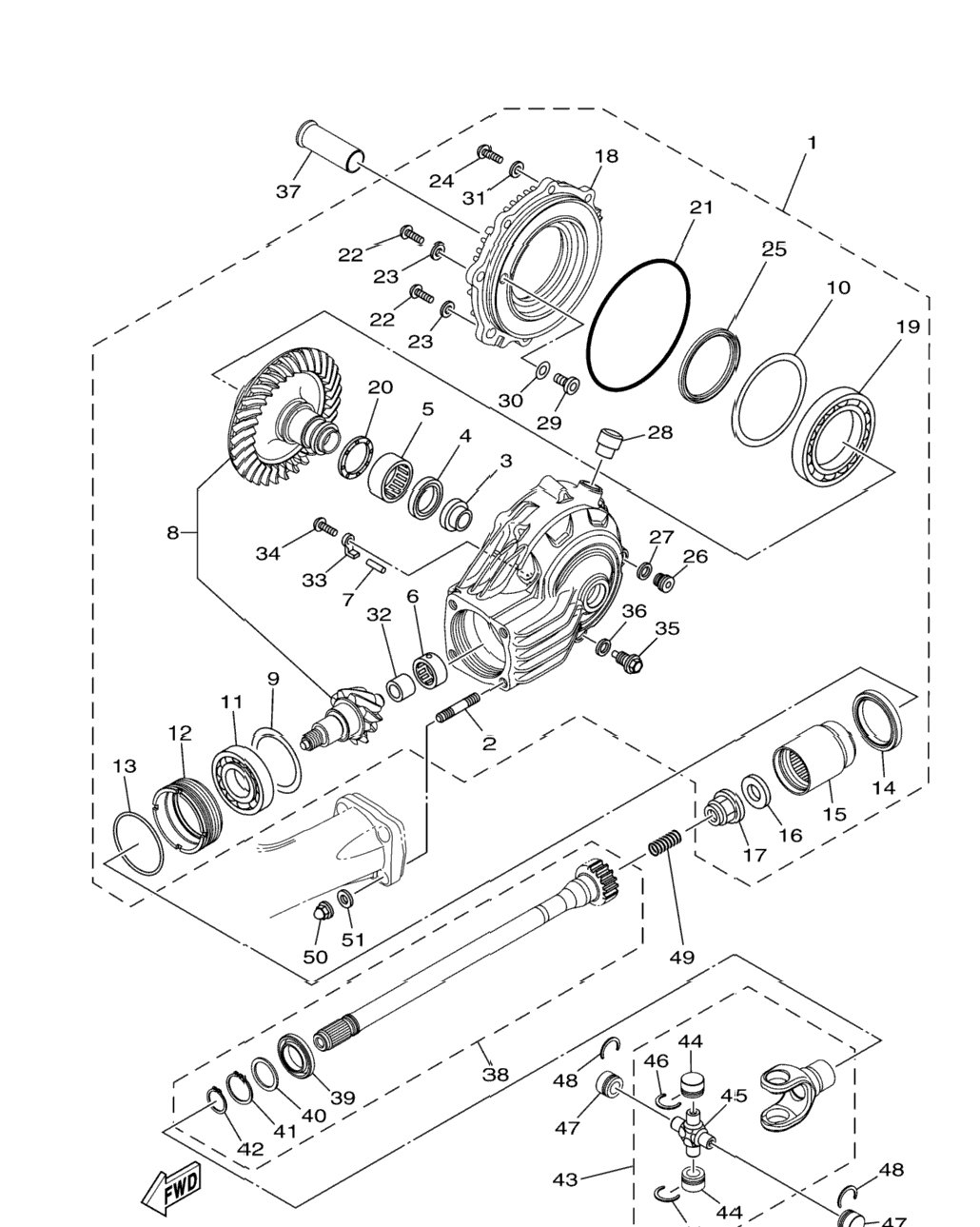

| 1 | 23P-46101-00-00 | Rear Axle Gear Case Assy | 1 шт. | — | |
|
| 2 | 90116-10055-00 | . .Bolt, Stud | 0 шт. | — | |
|
| 3 | 23P-46153-00-00 | . .Collar, Guide | 1 шт. | — | |
|
| 4 | 93102-32480-00 | . .Oil Seal | 1 шт. | — | |
|
| 5 | 93311-43729-00 | . .Bearing | 1 шт. | — | |
|
| 6 | 93311-62597-00 | . .Bearing | 1 шт. | — | |
|
| 7 | 93605-23164-00 | . .Pin, Dowel | 1 шт. | — | |
|
| 8 | 23P-461A0-00-00 | . .Gear Set | 1 шт. | — | |
|
| 9 | 2S3-46119-00-00 | . .Shim, Thrust (T0.15) UR | 1 шт. | — | |
|
| 10 | 2S3-46119-10-00 | . .Shim, Thrust (T0.3) UR | 1 шт. | — | |
|
| 11 | 2S3-46119-20-00 | . .Shim, Thrust (T0.4) UR | 1 шт. | — | |
|
| 12 | 2S3-46119-30-00 | . .Shim, Thrust (T0.45) UR | 1 шт. | — | |
|
| 13 | 2S3-46119-40-00 | . .Shim, Thrust (T0.5) UR | 1 шт. | — | |
|
| 14 | 2S3-46119-50-00 | . .Shim, Thrust (T0.6) UR | 1 шт. | — | |
|
| 15 | 2S3-46119-60-00 | . .Shim, Thrust (T0.2) UR | 1 шт. | — | |
|
| 16 | 2S3-46119-70-00 | . .Shim, Thrust (T0.25) UR | 1 шт. | — | |
|
| 17 | 1J7-46117-Y0-25 | . .Shim, Ring Gear (0.25T) UR | 1 шт. | — | |
|
| 18 | 1J7-46117-Y0-30 | . .Shim, Ring Gear (0.30T) UR | 1 шт. | — | |
|
| 19 | 1J7-46117-Y0-40 | . .Shim, Ring Gear (0.40T) UR | 1 шт. | — | |
|
| 20 | 1J7-46117-Y0-50 | . .Shim, Ring Gear (0.50T) UR | 1 шт. | — | |
|
| 21 | 93306-20724-00 | . .Bearing | 1 шт. | — | |
|
| 22 | 23P-46125-00-00 | . .Retainer, Bearing | 1 шт. | — | |
|
| 23 | 93210-69628-00 | . .O-Ring | 1 шт. | — | |
|
| 24 | 93102-50009-00 | . .Oil Seal | 1 шт. | — | |
|
| 25 | 23P-46123-00-00 | . .Coupling, Gear | 1 шт. | — | |
|
| 26 | 90208-20001-00 | . Washer, Conical Spring | 1 шт. | — | |
|
| 27 | 90179-20015-00 | . .Nut | 1 шт. | — | |
|
| 28 | 23P-46152-00-00 | . .Housing, Bearing | 1 шт. | — | |
|
| 29 | 93316-01403-00 | . .Bearing | 1 шт. | — | |
|
| 30 | 22U-46118-00-14 | . .Shim, Thrust (1.4T) UR | 1 шт. | — | |
|
| 31 | 22U-46118-00-16 | . .Shim, Thrust (1.6T) UR | 1 шт. | — | |
|
| 32 | 22U-46118-00-18 | . .Shim, Thrust (1.8T) UR | 1 шт. | — | |
|
| 33 | 22U-46118-00-12 | . .Shim, Thrust (1.2T) UR | 1 шт. | — | |
|
| 34 | 22U-46118-00-20 | . .Shim, Thrust (2.0T) UR | 1 шт. | — | |
|
| 35 | 93211-54698-00 | . .O-Ring | 1 шт. | — | |
|
| 36 | 90149-10055-00 | . .Screw | 2 шт. | — | |
|
| 37 | 90201-10045-00 | . Washer, Plate | 2 шт. | — | |
|
| 38 | 90149-08051-00 | . .Screw | 6 шт. | — | |
|
| 39 | 93102-70004-00 | . .Oil Seal | 1 шт. | — | |
|
| 40 | 90340-14002-00 | . .Plug, Straight Screw | 1 шт. | — | |
|
| 41 | 214-11198-01-00 | . Gasket | 1 шт. | — | |
|
| 42 | 2H7-17590-00-00 | . .Breather Comp | 1 шт. | — | |
|
| 43 | 1FK-46156-00-00 | . .Stopper, Ring Gear | 1 шт. | — | |
|
| 44 | 1FK-46157-00-15 | . .Shim, Stopper (T=0.15) UR | 1 шт. | — | |
|
| 45 | 1FK-46157-00-20 | . .Shim, Stopper (T=0.20) UR | 1 шт. | — | |
|
| 46 | 90201-08043-00 | . Washer, Plate | 6 шт. | — | |
|
| 47 | 23P-46122-00-00 | . .Race, Inner | 1 шт. | — | |
|
| 48 | 2S3-46862-00-00 | . .Holder | 1 шт. | — | |
|
| 49 | 90149-06158-00 | . Screw | 1 шт. | — | |
|
| 50 | 90340-14004-00 | . .Plug, Straight Screw | 1 шт. | — | |
|
| 51 | 214-11198-01-00 | . Gasket | 1 шт. | — | |
|
| 52 | 23P-4615A-00-00 | Collar, Guide 1 | 1 шт. | — | |
|
| 53 | 23P-46171-00-00 | Shaft Drive Assy | 1 шт. | — | |
|
| 54 | 93108-49003-00 | . .Oil Seal | 1 шт. | — | |
|
| 55 | 90201-29M01-00 | . .Washer, Plate | 1 шт. | — | |
|
| 56 | 93410-29095-00 | . .Circlip | 1 шт. | — | |
|
| 57 | 93410-23056-00 | . Circlip | 1 шт. | — | |
|
| 58 | 23P-46180-00-00 | Cross Joint Comp | 1 шт. | — | |
|
| 59 | 93399-99963-00 | . Bearing | 2 шт. | — | |
|
| 60 | 23P-46187-00-00 | . .Spider | 1 шт. | — | |
|
| 61 | 93440-22196-00 | . Circlip | 2 шт. | — | |
|
| 62 | 93399-99963-00 | Bearing | 2 шт. | — | |
|
| 63 | 93440-22196-00 | Circlip | 2 шт. | — | |
|
| 64 | 90501-20122-00 | Spring, Compression | 1 шт. | — | |
|
| 65 | 90176-10075-00 | Nut, Crown | 4 шт. | — | |
|
| 66 | 92990-10600-00 | Washer, Plate | 4 шт. | — | |
|
