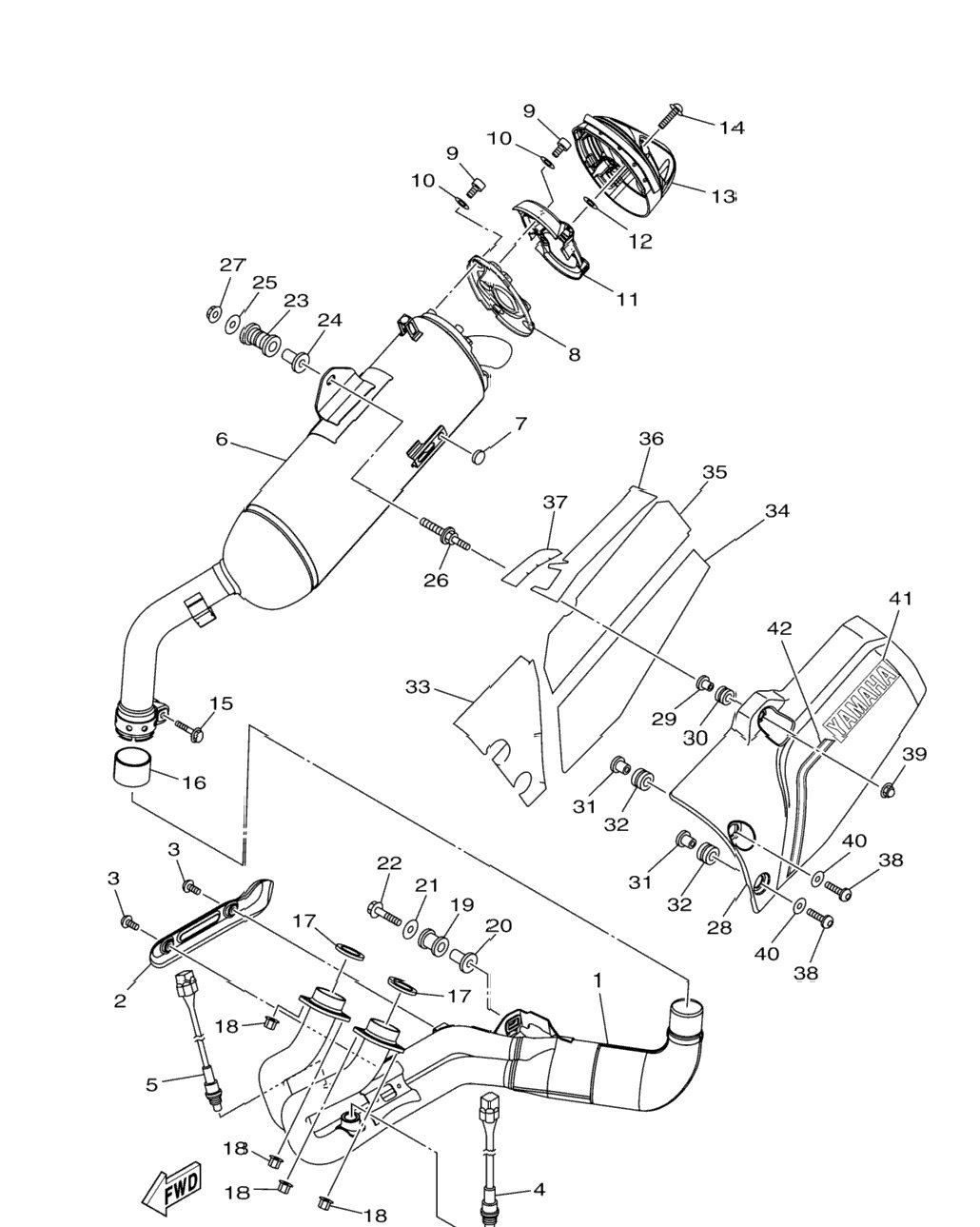

| 1 | 2BS-14610-00-00 | Exhaust Pipe Assy 1 | 1 шт. | — | |
|
| 2 | 23P-14628-00-00 | Protector, Exhaust Pipe | 1 шт. | — | |
|
| 3 | 98980-06008-00 | Screw, Bind | 2 шт. | — | |
|
| 4 | 2BS-8592A-00-00 | Sensor, Oxygen | 1 шт. | — | |
|
| 5 | 2BS-8592A-10-00 | Sensor, Oxygen | 1 шт. | — | |
|
| 6 | 23P-14703-10-00 | Muffler Comp. 1 | 1 шт. | — | |
|
| 7 | 22W-24181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 8 | 23P-1473K-10-00 | Bracket 3-1 | 1 шт. | — | |
|
| 9 | 91380-06010-00 | Bolt | 7 шт. | — | |
|
| 10 | 92990-06200-00 | Washer, Plain | 7 шт. | — | |
|
| 11 | 23P-1474K-10-00 | Bracket 4-1 | 1 шт. | — | |
|
| 12 | 5GM-14766-00-00 | Washer, Protector | 4 шт. | — | |
|
| 13 | 23P-14798-00-00 | Cap, Silencer 2 | 1 шт. | — | |
|
| 14 | 90110-06381-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 15 | 95814-08040-00 | .Bolt, Flange | 1 шт. | — | |
|
| 16 | 5VY-14714-00-00 | Gasket, Muffler | 1 шт. | — | |
|
| 17 | 4FM-14613-00-00 | Gasket, Exhaust Pipe | 2 шт. | — | |
|
| 18 | 90179-08410-00 | Nut | 4 шт. | — | |
|
| 19 | 5YU-14757-00-00 | Damper, Muffler 2 | 1 шт. | — | |
|
| 20 | 90387-082W9-00 | Collar | 1 шт. | — | |
|
| 21 | 90201-08034-00 | Washer, Plate | 1 шт. | — | |
|
| 22 | 95814-08040-00 | .Bolt, Flange | 1 шт. | — | |
|
| 23 | 36Y-27424-01-00 | Damper, Footrest 2 | 1 шт. | — | |
|
| 24 | 90387-10636-00 | Collar | 1 шт. | — | |
|
| 25 | 90201-10043-00 | Washer, Plate | 1 шт. | — | |
|
| 26 | 23P-14777-00-00 | Bolt | 1 шт. | — | |
|
| 27 | 95704-10500-00 | Nut, Flange | 1 шт. | — | |
|
| 28 | 2BS-14718-00-00 | Protector, Muffler 1 | 1 шт. | — | |
|
| 29 | 90387-087L0-00 | Collar | 1 шт. | — | |
|
| 30 | 90480-12581-00 | Grommet | 1 шт. | — | |
|
| 31 | 90387-10102-00 | Collar | 2 шт. | — | |
|
| 32 | 90480-01025-00 | Grommet | 2 шт. | — | |
|
| 33 | 2BS-1475P-00-00 | Seat | 1 шт. | — | |
|
| 34 | 2BS-1476P-00-00 | Seat | 1 шт. | — | |
|
| 35 | 2BS-1477P-00-00 | Seat | 1 шт. | — | |
|
| 36 | 2BS-1479P-00-00 | Seat 5 | 1 шт. | — | |
|
| 37 | 2BS-1471P-00-00 | Seat, 6 | 1 шт. | — | |
|
| 38 | 90111-06038-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 39 | 90176-06047-00 | Nut, Cap | 1 шт. | — | |
|
| 40 | 90201-06112-00 | Washer, Plate | 2 шт. | — | |
|
| 41 | 99241-00120-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 42 | 2BS-146E1-50-00 | Graphic 1 | 1 шт. | — | |
|
