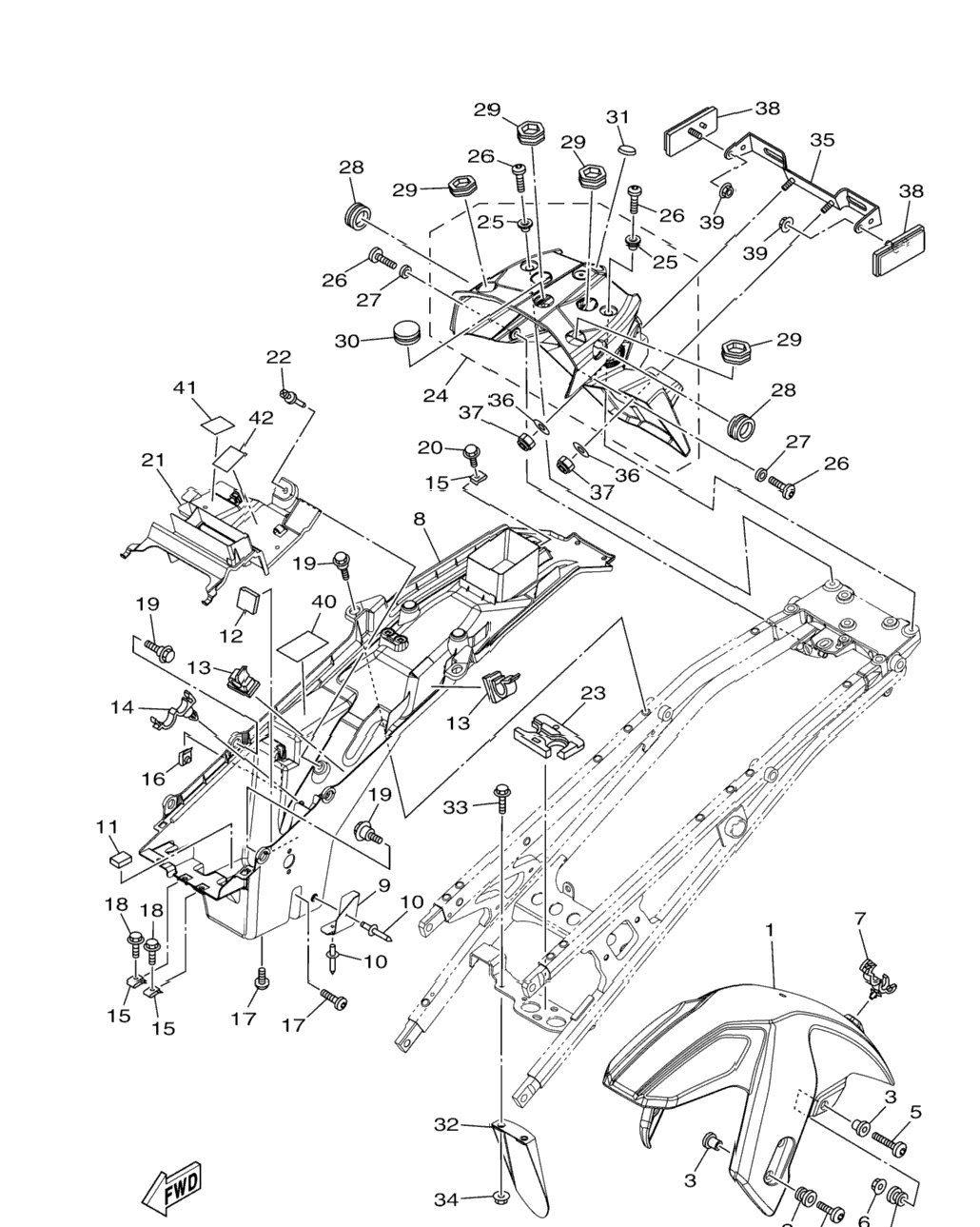

| 1 | 23P-21511-00-33 | Fender, Front YB FOR LRYS1 | 1 шт. | — | |
|
| 2 | 90480-12072-00 | Grommet | 6 шт. | — | |
|
| 3 | 90387-06265-00 | Collar | 6 шт. | — | |
|
| 4 | 90110-06202-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 5 | 90111-06063-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 6 | 95602-06200-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 7 | 90464-18002-00 | Clamp | 1 шт. | — | |
|
| 8 | 23P-2160E-00-00 | Box | 1 шт. | — | |
|
| 9 | 23P-21652-00-00 | Protector | 1 шт. | — | |
|
| 10 | 90267-40076-00 | Rivet | 2 шт. | — | |
|
| 11 | 4D9-24741-00-00 | Pad, Seat | 1 шт. | — | |
|
| 12 | 3KJ-24723-00-00 | Damper, Seat | 1 шт. | — | |
|
| 13 | 90464-20021-00 | Clamp | 2 шт. | — | |
|
| 14 | 90464-20010-00 | Clamp | 1 шт. | — | |
|
| 15 | 90183-060A6-00 | Nut, Spring | 3 шт. | — | |
|
| 16 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 17 | 92012-06014-00 | Bolt, Button Head | 3 шт. | — | |
|
| 18 | 95802-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 19 | 90109-06208-00 | Bolt | 6 шт. | — | |
|
| 20 | 95802-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 21 | 23P-2163A-00-00 | Cover, Rear Fender 1 | 1 шт. | — | |
|
| 22 | 90269-06081-00 | Rivet | 1 шт. | — | |
|
| 23 | 23P-21639-00-00 | Damper 2 | 1 шт. | — | |
|
| 24 | 23P-21685-10-00 | Bracket, License | 1 шт. | — | |
|
| 25 | 90387-06648-00 | . .Collar | 2 шт. | — | |
|
| 26 | 90111-06051-00 | Bolt,Hex. Socket Button | 4 шт. | — | |
|
| 27 | 90201-06778-00 | Washer, Plate | 2 шт. | — | |
|
| 28 | 23P-24747-00-00 | Damper, Seat | 2 шт. | — | |
|
| 29 | 23P-21649-00-00 | Damper | 4 шт. | — | |
|
| 30 | 90338-28239-00 | Plug | 1 шт. | — | |
|
| 31 | 4XV-2341B-00-00 | Emblem | 1 шт. | — | |
|
| 32 | 23P-21642-00-00 | Guard, Flap | 1 шт. | — | |
|
| 33 | 90119-06137-00 | Bolt, With Washer | 2 шт. | — | |
|
| 34 | 90179-06403-00 | Nut | 2 шт. | — | |
|
| 35 | 23P-84751-00-00 | Bracket, License | 1 шт. | — | |
|
| 36 | 90201-062A8-00 | Washer, Plate | 2 шт. | — | |
|
| 37 | 95602-06100-00 | .Nut, Self-Locking | 2 шт. | — | |
|
| 38 | 3Y6-85130-02-00 | Rear Reflector Assy | 2 шт. | — | |
|
| 39 | 95707-05500-00 | Nut, Flange | 2 шт. | — | |
|
| 40 | 5PS-21668-10-00 | Label, Tire | 1 шт. | — | |
|
| 41 | 5RU-21686-00-00 | Plate, Routing 2 FOR CAL | 0 шт. | — | |
|
| 42 | 34B-21684-00-00 | Plate, Routing FOR CAL | 0 шт. | — | |
|
