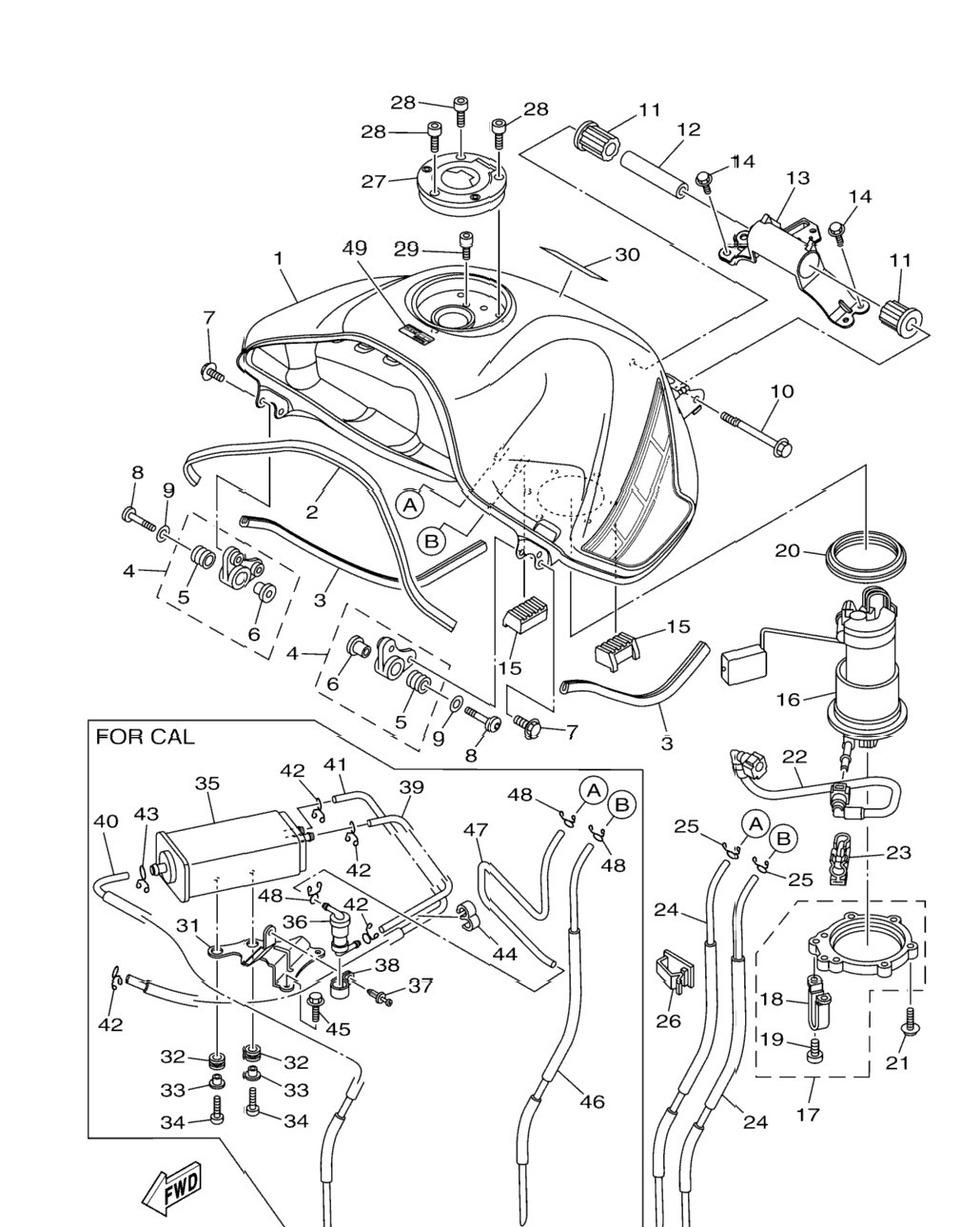

| 1 | 23P-Y2410-00-05 | Fuel Tank Comp FOR LRYS1 | 1 шт. | — | |
|
| 2 | 23P-24188-00-00 | Mold, Fuel Tank | 1 шт. | — | |
|
| 3 | 23P-24188-10-00 | Mold, Fuel Tank | 2 шт. | — | |
|
| 4 | 23P-24104-01-00 | Tank Bracket Assy | 2 шт. | — | |
|
| 5 | 90480-18008-00 | . .Grommet | 1 шт. | — | |
|
| 6 | 90387-06266-00 | . .Collar | 1 шт. | — | |
|
| 7 | 90119-06200-00 | Bolt, With Washer | 4 шт. | — | |
|
| 8 | 90149-06328-00 | Screw | 2 шт. | — | |
|
| 9 | 90201-06072-00 | Washer, Plate | 2 шт. | — | |
|
| 10 | 95812-08110-00 | Bolt, Flange | 1 шт. | — | |
|
| 11 | 23P-24183-00-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 12 | 90387-12050-00 | Collar | 1 шт. | — | |
|
| 13 | 23P-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 14 | 95802-06020-00 | Bolt, Flange | 4 шт. | — | |
|
| 15 | 23P-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 16 | 23P-13907-00-00 | Fuel Pump Comp | 0 шт. | — | |
|
| 17 | 23P-24105-00-00 | Tank Bracket Assy 2 | 1 шт. | — | |
|
| 18 | 2D1-24192-00-00 | . .Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 19 | 98902-05008-00 | . Screw, Bind | 2 шт. | — | |
|
| 20 | 19B-24486-01-00 | O-Ring | 1 шт. | — | |
|
| 21 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 22 | 23P-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 23 | 90464-16005-00 | Clamp | 1 шт. | — | |
|
| 24 | 23P-24318-00-00 | Pipe, Overflow FOR U49 | 2 шт. | — | |
|
| 25 | 90467-09006-00 | Clip FOR U49 | 2 шт. | — | |
|
| 26 | 90464-13012-00 | Clamp | 1 шт. | — | |
|
| 27 | 39P-24602-00-00 | Cap Assy | 1 шт. | — | |
|
| 28 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 29 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 30 | 29P-2816R-00-00 | Label, Warning General Info FOR U49 | 1 шт. | — | |
|
| 31 | 23P-2419F-00-00 | Bracket, Canistor FOR CAL | 0 шт. | — | |
|
| 32 | 90480-13018-00 | Grommet FOR CAL | 0 шт. | — | |
|
| 33 | 90387-062L2-00 | Collar FOR CAL | 0 шт. | — | |
|
| 34 | 92012-06016-00 | Bolt, Button Head FOR CAL | 0 шт. | — | |
|
| 35 | 5PX-24170-00-00 | Canister Assy FOR CAL | 0 шт. | — | |
|
| 36 | 2C0-24180-00-00 | Roll Over Valve Assy FOR CAL | 0 шт. | — | |
|
| 37 | 90269-05001-00 | Rivet FOR CAL | 0 шт. | — | |
|
| 38 | 90464-15014-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 39 | 23P-24314-00-00 | Pipe 4 FOR CAL | 0 шт. | — | |
|
| 40 | 23P-24315-00-00 | Pipe 5 FOR CAL | 0 шт. | — | |
|
| 41 | 23P-24316-00-00 | Pipe 6 FOR CAL | 0 шт. | — | |
|
| 42 | 90467-09006-00 | Clip FOR CAL | 0 шт. | — | |
|
| 43 | 90467-10008-00 | Clip FOR CAL | 0 шт. | — | |
|
| 44 | 90464-09M31-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 45 | 95802-06012-00 | Bolt, Flange FOR CAL | 0 шт. | — | |
|
| 46 | 23P-24318-00-00 | Pipe, Overflow FOR CAL | 0 шт. | — | |
|
| 47 | 23P-24313-00-00 | Pipe 3 FOR CAL | 0 шт. | — | |
|
| 48 | 90467-09006-00 | Clip FOR CAL | 0 шт. | — | |
|
| 49 | B11-2416B-00-00 | Emblem | 1 шт. | — | |
|
