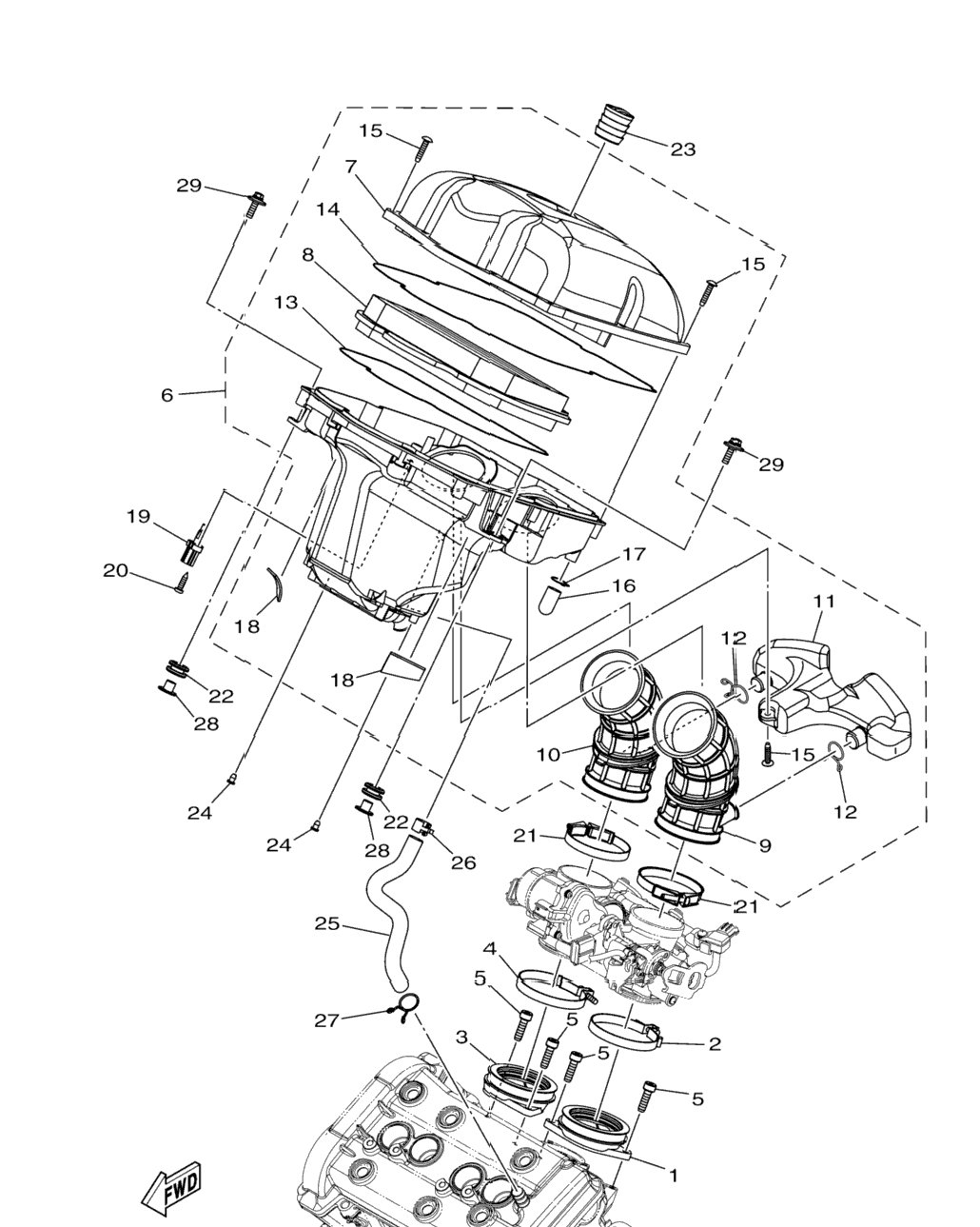

| 1 | 23P-13586-00-00 | Joint, Carburetor 1 | 1 шт. | — | |
|
| 2 | 90450-69001-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 3 | 23P-13596-00-00 | Joint, Carburetor 2 | 1 шт. | — | |
|
| 4 | 90450-69001-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 5 | 91312-06020-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 6 | 23P-14410-00-00 | Air Cleaner Assy | 1 шт. | — | |
|
| 7 | 23P-14421-00-00 | . .Case, Air Cleaner 2 | 1 шт. | — | |
|
| 8 | 23P-14451-00-00 | . .Element, Air Cleaner | 1 шт. | — | |
|
| 9 | 23P-14453-00-00 | . .Joint, Air Cleaner 1 | 1 шт. | — | |
|
| 10 | 23P-14463-00-00 | . .Joint, Air Cleaner 2 | 1 шт. | — | |
|
| 11 | 23P-13581-00-00 | . .Chamber, Air | 1 шт. | — | |
|
| 12 | 90467-180A1-00 | . Clip | 2 шт. | — | |
|
| 13 | 23P-14452-00-00 | . .Seal | 1 шт. | — | |
|
| 14 | 23P-14462-00-00 | . .Seal | 1 шт. | — | |
|
| 15 | 90160-05013-00 | . Screw, Round Tapping | 11 шт. | — | |
|
| 16 | 23P-1443E-00-00 | . .Pipe, Drain | 1 шт. | — | |
|
| 17 | 23P-14159-00-00 | . .Clip | 1 шт. | — | |
|
| 18 | 5JW-2139X-00-00 | . .Damper | 2 шт. | — | |
|
| 19 | 8FP-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 20 | 97707-50520-00 | Screw, Tapping | 1 шт. | — | |
|
| 21 | 90450-67003-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 22 | 90480-14329-00 | .Grommet | 2 шт. | — | |
|
| 23 | 23P-14862-00-00 | Plug | 1 шт. | — | |
|
| 24 | 90338-05056-00 | Plug | 2 шт. | — | |
|
| 25 | 23P-11166-10-00 | Pipe, Breather 1 | 1 шт. | — | |
|
| 26 | 90467-15168-00 | Clip | 1 шт. | — | |
|
| 27 | 90467-140A4-00 | Clip | 1 шт. | — | |
|
| 28 | 90387-06033-00 | Collar | 2 шт. | — | |
|
| 29 | 90119-06172-00 | Bolt, With Washer | 2 шт. | — | |
|
