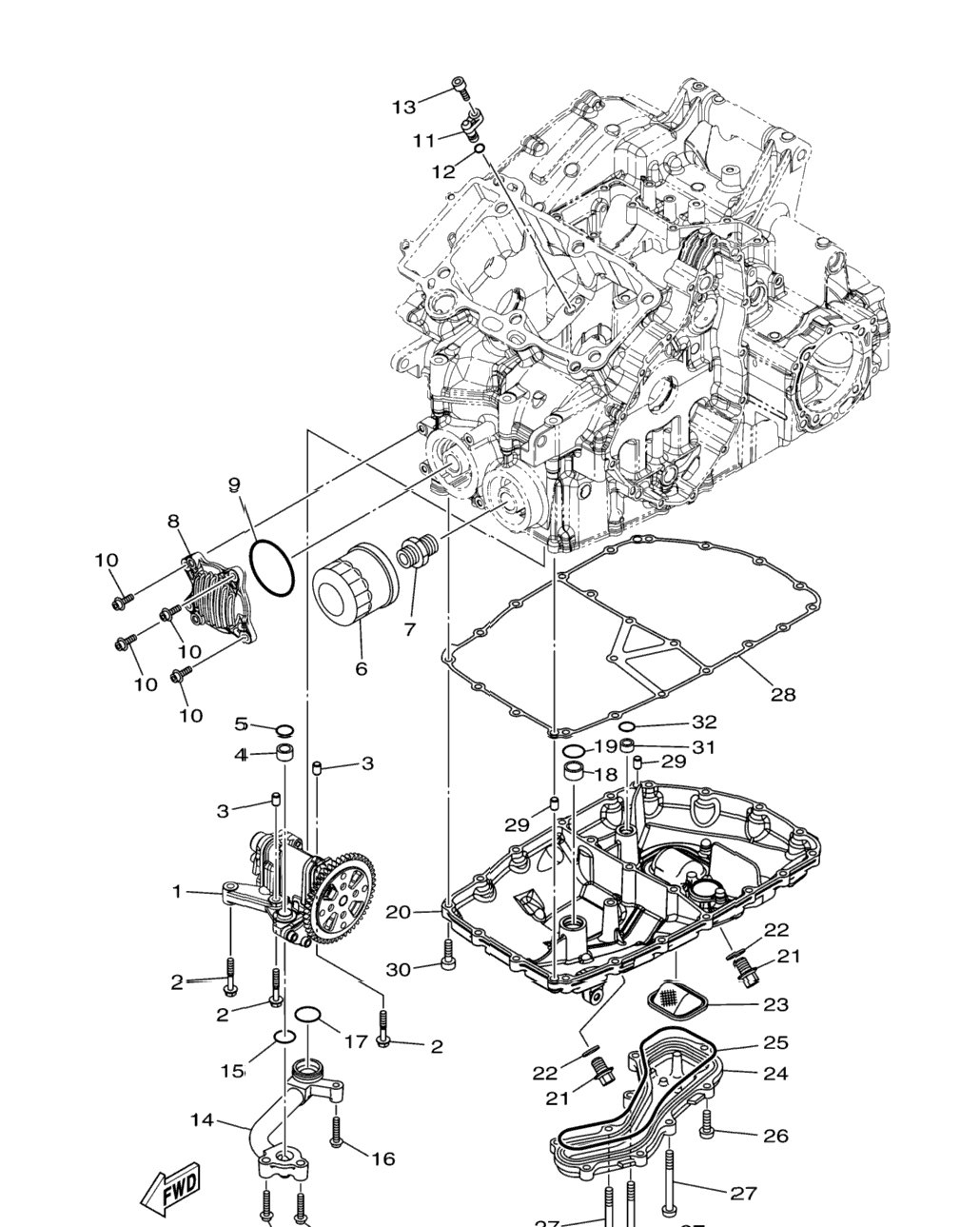

| 1 | 23P-13300-00-00 | Oil Pump Assy | 1 шт. | — | |
|
| 2 | 95812-06035-00 | Bolt, Flange | 3 шт. | — | |
|
| 4 | 90387-13005-00 | Collar | 1 шт. | — | |
|
| 5 | 93210-15566-00 | O-Ring | 1 шт. | — | |
|
| 6 | 5GH-13440-50-00 | Element Assy, Oil Cleaner | 1 шт. | — | |
|
| 7 | 90401-20008-00 | Bolt, Union | 1 шт. | — | |
|
| 8 | 23P-13461-00-00 | Plate, Adaptor | 1 шт. | — | |
|
| 9 | 93210-60426-00 | .O-Ring | 1 шт. | — | |
|
| 10 | 90110-06347-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 11 | 23P-15155-00-00 | Nozzle 3 | 1 шт. | — | |
|
| 12 | 93210-06422-00 | .O-Ring | 1 шт. | — | |
|
| 13 | 90110-06161-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 14 | 23P-13416-00-00 | Pipe, Oil 1 | 1 шт. | — | |
|
| 15 | 93210-23326-00 | O-Ring | 1 шт. | — | |
|
| 16 | 90110-06345-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 17 | 93210-27778-00 | O-Ring | 1 шт. | — | |
|
| 18 | 23P-13117-00-00 | Collar, Distance | 1 шт. | — | |
|
| 19 | 93210-19003-00 | O-Ring | 1 шт. | — | |
|
| 20 | 23P-13417-00-00 | Cover, Strainer | 1 шт. | — | |
|
| 21 | 90340-12001-00 | Plug, Straight Screw | 2 шт. | — | |
|
| 22 | 90430-12213-00 | Gasket | 2 шт. | — | |
|
| 23 | 23P-13421-00-00 | Strainer 2 | 1 шт. | — | |
|
| 24 | 23P-13447-00-00 | Cover, Oil Element | 1 шт. | — | |
|
| 25 | 23P-13449-00-00 | Gasket, Element Cover | 1 шт. | — | |
|
| 26 | 90149-06159-00 | Screw | 6 шт. | — | |
|
| 27 | 90149-06176-00 | Screw | 3 шт. | — | |
|
| 28 | 23P-13414-00-00 | Gasket, Strainer Cover | 1 шт. | — | |
|
| 29 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 29 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 30 | 91312-06025-00 | Bolt, Hexagon Socket Head | 19 шт. | — | |
|
| 31 | 90387-106W6-00 | Collar | 1 шт. | — | |
|
| 32 | 93210-12790-00 | .O-Ring | 1 шт. | — | |
|
