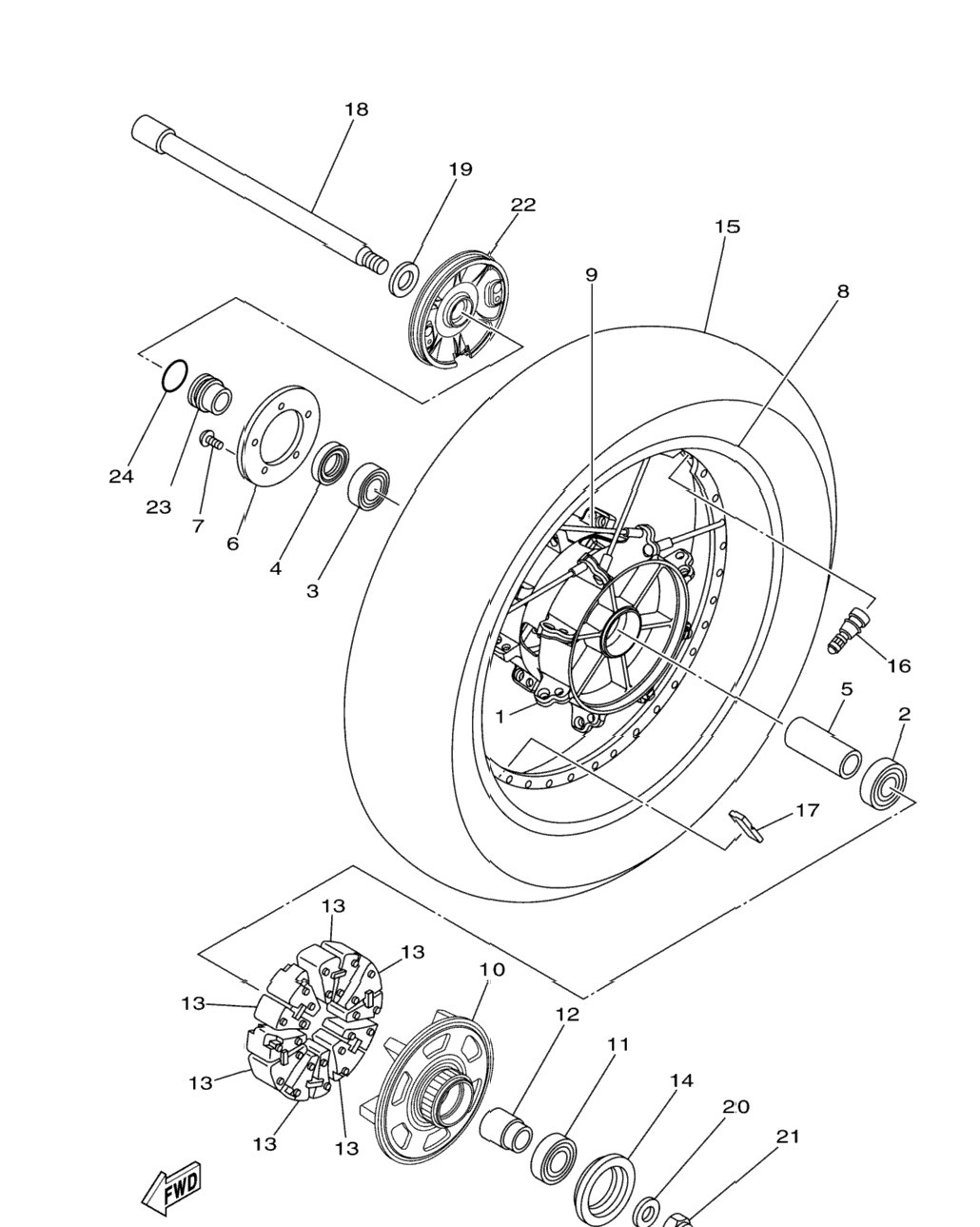

| 1 | 23P-25311-00-00 | Hub, Rear | 1 шт. | — | |
|
| 2 | 93306-27212-00 | Bearing | 1 шт. | — | |
|
| 3 | 93306-07208-00 | Bearing | 1 шт. | — | |
|
| 4 | 93106-28043-00 | Oil Seal | 1 шт. | — | |
|
| 5 | 23P-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 6 | 2S3-2517G-00-00 | Rotor, Sensor | 1 шт. | — | |
|
| 7 | 90149-05029-00 | Screw | 5 шт. | — | |
|
| 8 | 94440-17003-00 | Rim (4.00-17) | 1 шт. | — | |
|
| 9 | 23P-25304-00-00 | Spoke Set, Rear | 1 шт. | — | |
|
| 10 | 23P-25366-00-00 | Clutch, Hub | 1 шт. | — | |
|
| 11 | 93306-00521-00 | Bearing | 1 шт. | — | |
|
| 12 | 23P-25377-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 13 | 5JW-25364-00-00 | Damper | 6 шт. | — | |
|
| 14 | 5JW-25319-00-00 | Seal, Hub Dust | 1 шт. | — | |
|
| 15 | 94115-17009-00 | Tire (150/70R17 M/C 69V) BRIDGESTONE | 1 шт. | — | |
|
| 16 | 93900-00030-00 | Valve, Rim (Tr412) TAIHEIYO | 1 шт. | — | |
|
| 17 | 23P-25398-00-00 | Balancer, Wheel UN | 1 шт. | — | |
|
| 18 | 23P-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 19 | 90201-22014-00 | Washer, Plate | 1 шт. | — | |
|
| 20 | 90201-18013-00 | Washer, Plate | 1 шт. | — | |
|
| 21 | 90185-18009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 22 | 23P-2537A-00-00 | Housing, Sensor Rear | 1 шт. | — | |
|
| 23 | 23P-25183-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 24 | 93210-26668-00 | ..O-Ring | 1 шт. | — | |
|
