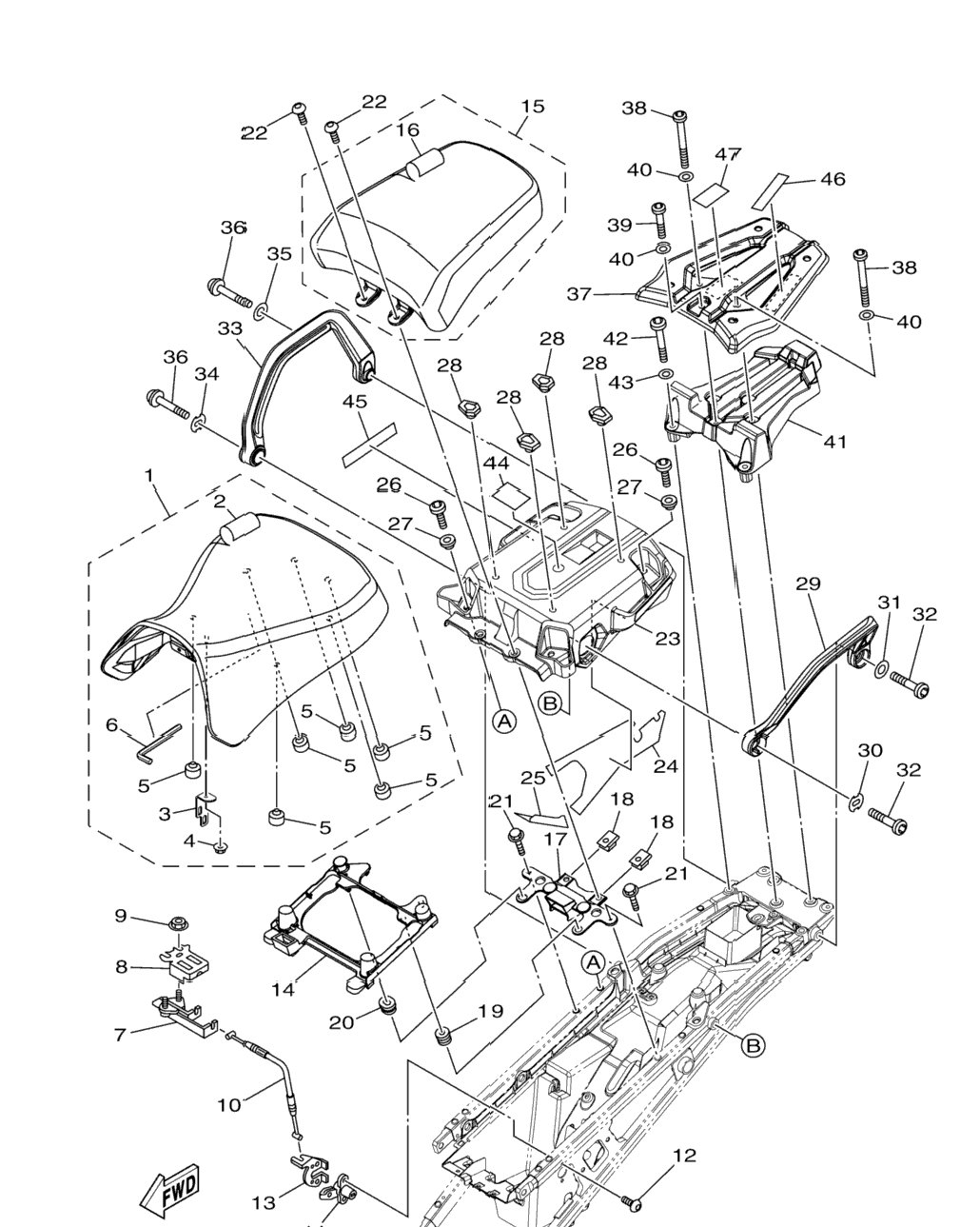

| 1 | 2KB-24710-00-00 | Single Seat Assy | 1 шт. | — | |
|
| 2 | 2KB-24711-00-00 | . .Cover, Single Seat | 1 шт. | — | |
|
| 3 | 23P-24718-00-00 | . .Bracket, Seat | 1 шт. | — | |
|
| 4 | 95602-06200-00 | . Nut, Self-Locking | 1 шт. | — | |
|
| 5 | 371-27114-00-00 | . .Stopper, Main Stand | 6 шт. | — | |
|
| 6 | 23P-28164-00-00 | . Wrench, Hexagon 8 | 1 шт. | — | |
|
| 7 | 4BP-24780-00-00 | Seat Lock Assy | 1 шт. | — | |
|
| 8 | 23P-2475H-00-00 | Bracket, Seat Lever 1 | 1 шт. | — | |
|
| 9 | 90179-06403-00 | Nut | 2 шт. | — | |
|
| 10 | 23P-2478E-00-00 | Cable, Seat Lock | 1 шт. | — | |
|
| 11 | 2TV-24799-00-00 | Rotor Assy | 1 шт. | — | |
|
| 12 | 90149-06308-00 | Screw | 2 шт. | — | |
|
| 13 | 23P-2117K-00-00 | Stay, Lock | 1 шт. | — | |
|
| 14 | 23P-24708-00-00 | Seat Bracket Assy | 1 шт. | — | |
|
| 15 | 2KB-24750-00-00 | Tandem Seat Assy | 1 шт. | — | |
|
| 16 | 2KB-24751-00-00 | . .Cover, Tandem Seat | 1 шт. | — | |
|
| 17 | 23P-2474F-00-00 | Stay, Front 1 | 1 шт. | — | |
|
| 18 | 90183-08060-00 | Nut, Spring | 2 шт. | — | |
|
| 19 | 90480-13398-00 | Grommet | 1 шт. | — | |
|
| 20 | 90480-01559-00 | Grommet | 1 шт. | — | |
|
| 21 | 95802-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 22 | 92012-08025-00 | Bolt, Button Head | 2 шт. | — | |
|
| 23 | 23P-24842-10-00 | Carrier, 2 | 1 шт. | — | |
|
| 24 | 23P-2172P-10-00 | Seat | 1 шт. | — | |
|
| 25 | 23P-2173P-00-00 | Seat 2 | 1 шт. | — | |
|
| 26 | 90149-06121-00 | Screw | 4 шт. | — | |
|
| 27 | 90387-06264-00 | Collar | 4 шт. | — | |
|
| 28 | 23P-24737-00-00 | Damper, Seat | 4 шт. | — | |
|
| 29 | 23P-2470J-00-P1 | Assist Grip Assy., 1 MBL2 FOR LRYS1 | 1 шт. | — | |
|
| 30 | 23P-24736-00-00 | Washer | 1 шт. | — | |
|
| 31 | 92902-10200-00 | Washer | 1 шт. | — | |
|
| 32 | 90111-10054-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 33 | 23P-2470K-00-P1 | Assist Grip Assy., 2 MBL2 FOR LRYS1 | 1 шт. | — | |
|
| 34 | 23P-24736-00-00 | Washer | 1 шт. | — | |
|
| 35 | 92902-10200-00 | Washer | 1 шт. | — | |
|
| 36 | 90111-10054-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 37 | 23P-24841-10-00 | Carrier, 1 | 1 шт. | — | |
|
| 38 | 90111-08074-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 39 | 90111-08076-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 40 | 90201-08048-00 | .Washer, Plate | 3 шт. | — | |
|
| 41 | 23P-24884-00-00 | Stay, Box | 1 шт. | — | |
|
| 42 | 90111-08076-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 43 | 90201-08048-00 | .Washer, Plate | 2 шт. | — | |
|
| 44 | 23P-2816K-10-00 | Label, Warning Carrier 2 | 1 шт. | — | |
|
| 45 | 23P-2816J-10-00 | Label, Warning Carrier 1 | 1 шт. | — | |
|
| 46 | 23P-2815T-10-00 | Label, Notice Carrier | 1 шт. | — | |
|
| 47 | 23P-2816K-10-00 | Label, Warning Carrier 2 | 1 шт. | — | |
|
