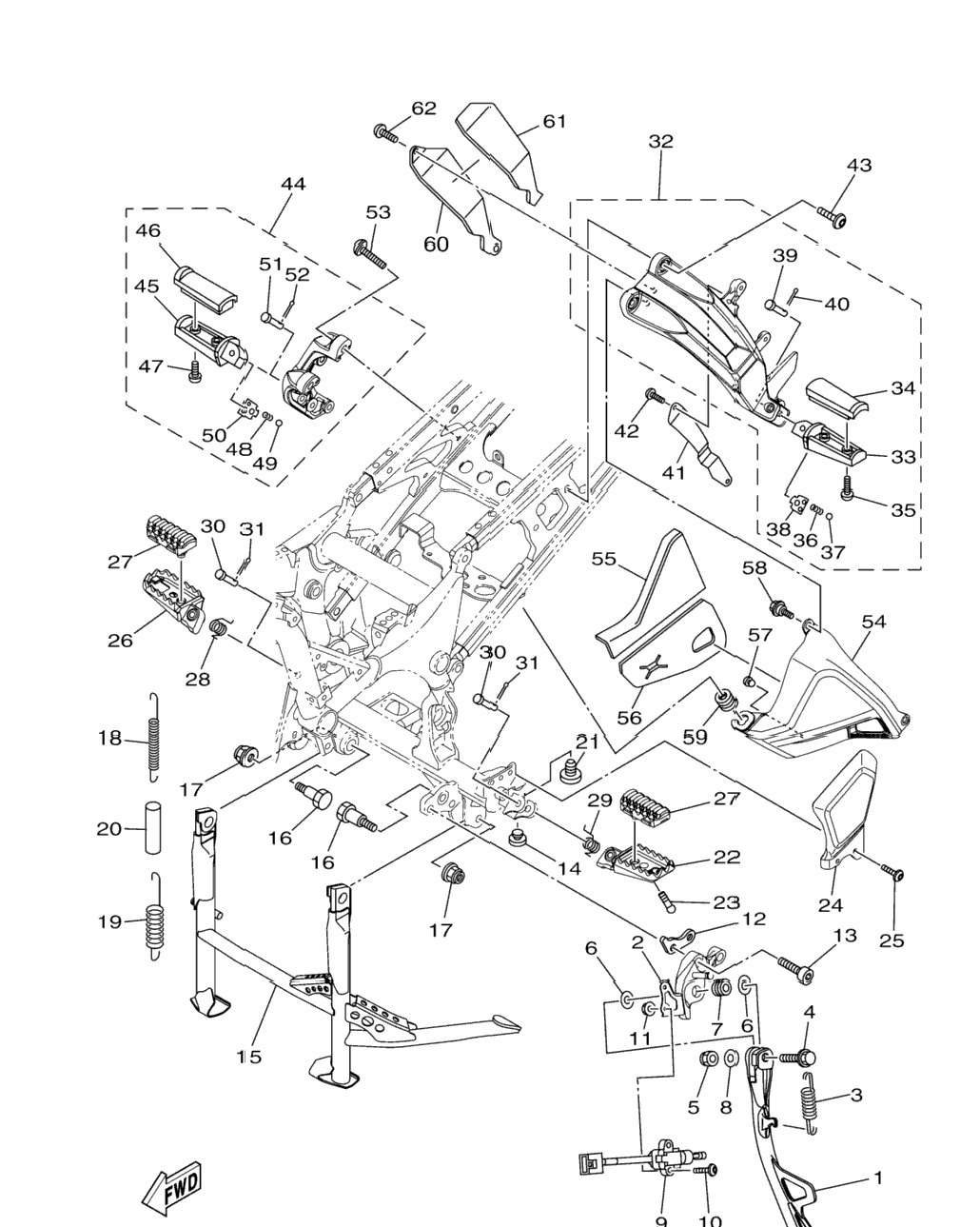

| 1 | 2BS-27311-00-00 | Stand, Side | 1 шт. | — | |
|
| 2 | 23P-27321-00-00 | Bracket, Side Stand | 1 шт. | — | |
|
| 3 | 23P-27316-00-00 | Spring, Side Stand | 1 шт. | — | |
|
| 4 | 90105-102A6-00 | Bolt, Flange | 1 шт. | — | |
|
| 5 | 90185-10012-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 6 | 90201-10051-00 | Washer, Plate | 2 шт. | — | |
|
| 7 | 90387-10020-00 | Collar | 1 шт. | — | |
|
| 8 | 90201-101J1-00 | Washer, Plate | 1 шт. | — | |
|
| 9 | 23P-82566-60-00 | Switch, Side Stand | 1 шт. | — | |
|
| 10 | 92017-05020-00 | ..Bolt, Button Head | 2 шт. | — | |
|
| 11 | 95607-05200-00 | Nut, S/L Flange | 2 шт. | — | |
|
| 12 | 23P-27322-00-00 | Washer | 1 шт. | — | |
|
| 13 | 90110-10010-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 14 | 128-27114-00-00 | Stopper, Main Stand | 1 шт. | — | |
|
| 15 | 23P-27111-00-00 | Stand, Main | 1 шт. | — | |
|
| 16 | 90109-10057-00 | Bolt | 2 шт. | — | |
|
| 17 | 95602-10200-00 | Nut, S/L Flange | 2 шт. | — | |
|
| 18 | 23P-27116-00-00 | Spring, Main Stand | 1 шт. | — | |
|
| 19 | 23P-27116-10-00 | Spring, Main Stand | 1 шт. | — | |
|
| 20 | 90445-19003-00 | Hose | 1 шт. | — | |
|
| 21 | 23P-27114-00-00 | Stopper, Main Stand | 1 шт. | — | |
|
| 22 | 23P-27451-00-00 | Footrest | 1 шт. | — | |
|
| 23 | 90109-08174-00 | Bolt | 1 шт. | — | |
|
| 24 | 23P-27445-10-00 | Plate 1 | 1 шт. | — | |
|
| 25 | 92012-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 26 | 23P-27461-00-00 | Footrest | 1 шт. | — | |
|
| 27 | 23P-27413-00-00 | Cover, Footrest | 2 шт. | — | |
|
| 28 | 90508-20051-00 | Spring, Torsion | 1 шт. | — | |
|
| 29 | 90508-20041-00 | Spring, Torsion | 1 шт. | — | |
|
| 30 | 91701-08040-00 | Pin | 2 шт. | — | |
|
| 31 | 91401-25015-00 | Pin, Cotter | 2 шт. | — | |
|
| 32 | 23P-27430-10-00 | Rear Footrest Assy 1 | 1 шт. | — | |
|
| 33 | 5RT-27431-00-00 | . .Footrest, Rear 1 | 1 шт. | — | |
|
| 34 | 4D9-27413-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 35 | 90157-05079-00 | . Screw, Pan Head | 2 шт. | — | |
|
| 36 | 90501-12743-00 | . Spring, Compression | 1 шт. | — | |
|
| 37 | 93501-04011-00 | . Ball | 1 шт. | — | |
|
| 38 | 5VX-27437-00-00 | . Washer, Special | 1 шт. | — | |
|
| 39 | 91702-08040-00 | . Pin, Clevis | 1 шт. | — | |
|
| 40 | 91401-25015-00 | . Pin, Cotter | 1 шт. | — | |
|
| 41 | 23P-27412-00-00 | Bracket, Footrest 1 | 1 шт. | — | |
|
| 42 | 92012-05008-00 | Bolt, Button Head | 2 шт. | — | |
|
| 43 | 90109-085G6-00 | Bolt | 2 шт. | — | |
|
| 44 | 23P-27440-10-00 | Rear Footrest Assy 2 | 1 шт. | — | |
|
| 45 | 5RT-27441-00-00 | . .Footrest, Rear 2 | 1 шт. | — | |
|
| 46 | 4D9-27413-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 47 | 90157-05079-00 | . Screw, Pan Head | 2 шт. | — | |
|
| 48 | 90501-12743-00 | . Spring, Compression | 1 шт. | — | |
|
| 49 | 93501-04011-00 | . Ball | 1 шт. | — | |
|
| 50 | 5VX-27437-00-00 | . Washer, Special | 1 шт. | — | |
|
| 51 | 91702-08040-00 | . Pin, Clevis | 1 шт. | — | |
|
| 52 | 91401-25015-00 | . Pin, Cotter | 1 шт. | — | |
|
| 53 | 90109-085G6-00 | Bolt | 2 шт. | — | |
|
| 54 | 23P-27491-00-00 | Protector | 1 шт. | — | |
|
| 55 | 23P-2749A-00-00 | Seat 3 | 1 шт. | — | |
|
| 56 | 23P-2749B-00-00 | Seat 4 | 1 шт. | — | |
|
| 57 | 1J7-21717-00-00 | Damper | 1 шт. | — | |
|
| 58 | 90109-06264-00 | Bolt | 2 шт. | — | |
|
| 59 | 90480-12325-00 | Grommet | 1 шт. | — | |
|
| 60 | 2BS-27422-00-00 | Bracket, Footrest 2 | 1 шт. | — | |
|
| 61 | 2BS-2175P-00-00 | Seat 4 | 1 шт. | — | |
|
| 62 | 92012-08012-00 | Bolt, Button Head | 2 шт. | — | |
|
