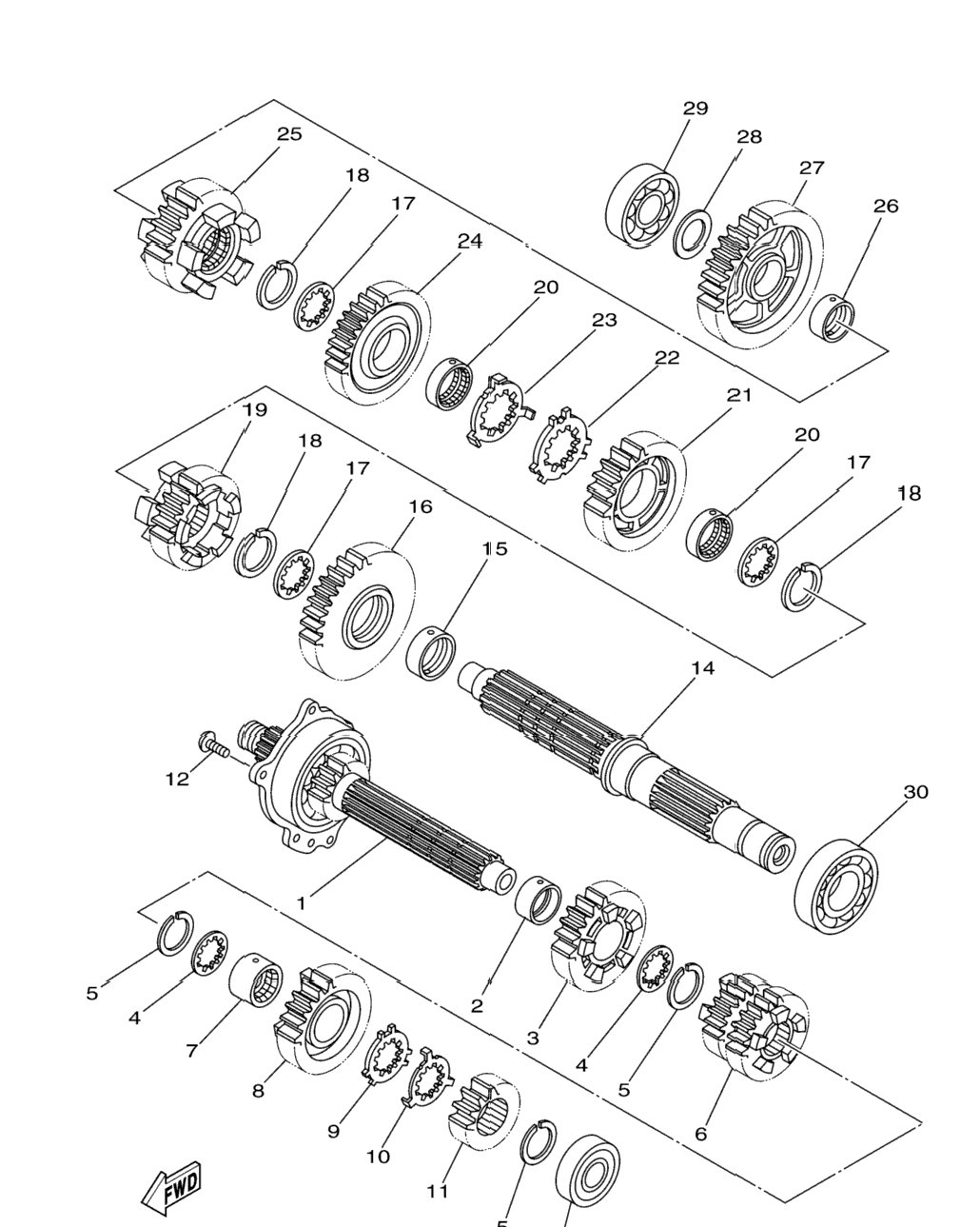

| 1 | 23P-17401-00-00 | Main Axle Assy | 1 шт. | — | |
|
| 2 | 90387-28003-00 | Collar | 1 шт. | — | |
|
| 3 | 23P-17151-00-00 | Gear, 5Th Pinion (24T) | 1 шт. | — | |
|
| 4 | 90209-25011-00 | Washer | 2 шт. | — | |
|
| 5 | 93440-28184-00 | Circlip | 3 шт. | — | |
|
| 6 | 23P-17131-00-00 | Gear, 3Rd Pinion (21T/24T) | 1 шт. | — | |
|
| 7 | 90387-25023-00 | Collar | 1 шт. | — | |
|
| 8 | 23P-17161-00-00 | Gear, 6Th Pinion (28T) | 1 шт. | — | |
|
| 9 | 90214-25004-00 | Washer, Claw | 1 шт. | — | |
|
| 10 | 90214-25003-00 | Washer, Claw | 1 шт. | — | |
|
| 11 | 5S7-17121-00-00 | Gear, 2Nd Pinion (16T) | 1 шт. | — | |
|
| 12 | 90149-06082-00 | Screw | 3 шт. | — | |
|
| 13 | 93306-20464-00 | Bearing | 1 шт. | — | |
|
| 14 | 23P-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 15 | 90387-31003-00 | Collar | 1 шт. | — | |
|
| 16 | 23P-17221-00-00 | Gear, 2Nd Wheel (33T) | 1 шт. | — | |
|
| 17 | 90209-28008-00 | Washer | 3 шт. | — | |
|
| 18 | 93440-31187-00 | Circlip | 3 шт. | — | |
|
| 19 | 23P-17261-00-00 | Gear, 6Th Wheel (26T) | 1 шт. | — | |
|
| 20 | 90387-28004-00 | Collar | 2 шт. | — | |
|
| 21 | 23P-17241-00-00 | Gear, 4Th Wheel (30T) | 1 шт. | — | |
|
| 22 | 90214-29002-00 | Washer, Claw | 1 шт. | — | |
|
| 23 | 90214-28002-00 | Washer, Claw | 1 шт. | — | |
|
| 24 | 23P-17231-00-00 | Gear, 3Rd Wheel (33T) | 1 шт. | — | |
|
| 25 | 23P-17251-00-00 | Gear, 5Th Wheel (25T) | 1 шт. | — | |
|
| 26 | 90387-25008-00 | Collar | 1 шт. | — | |
|
| 27 | 23P-17211-00-00 | Gear, 1St Wheel (36T) | 1 шт. | — | |
|
| 28 | 90201-224L4-00 | Washer, Plate | 1 шт. | — | |
|
| 29 | 93306-37215-00 | Bearing | 1 шт. | — | |
|
| 30 | 93306-28204-00 | Bearing | 1 шт. | — | |
|
