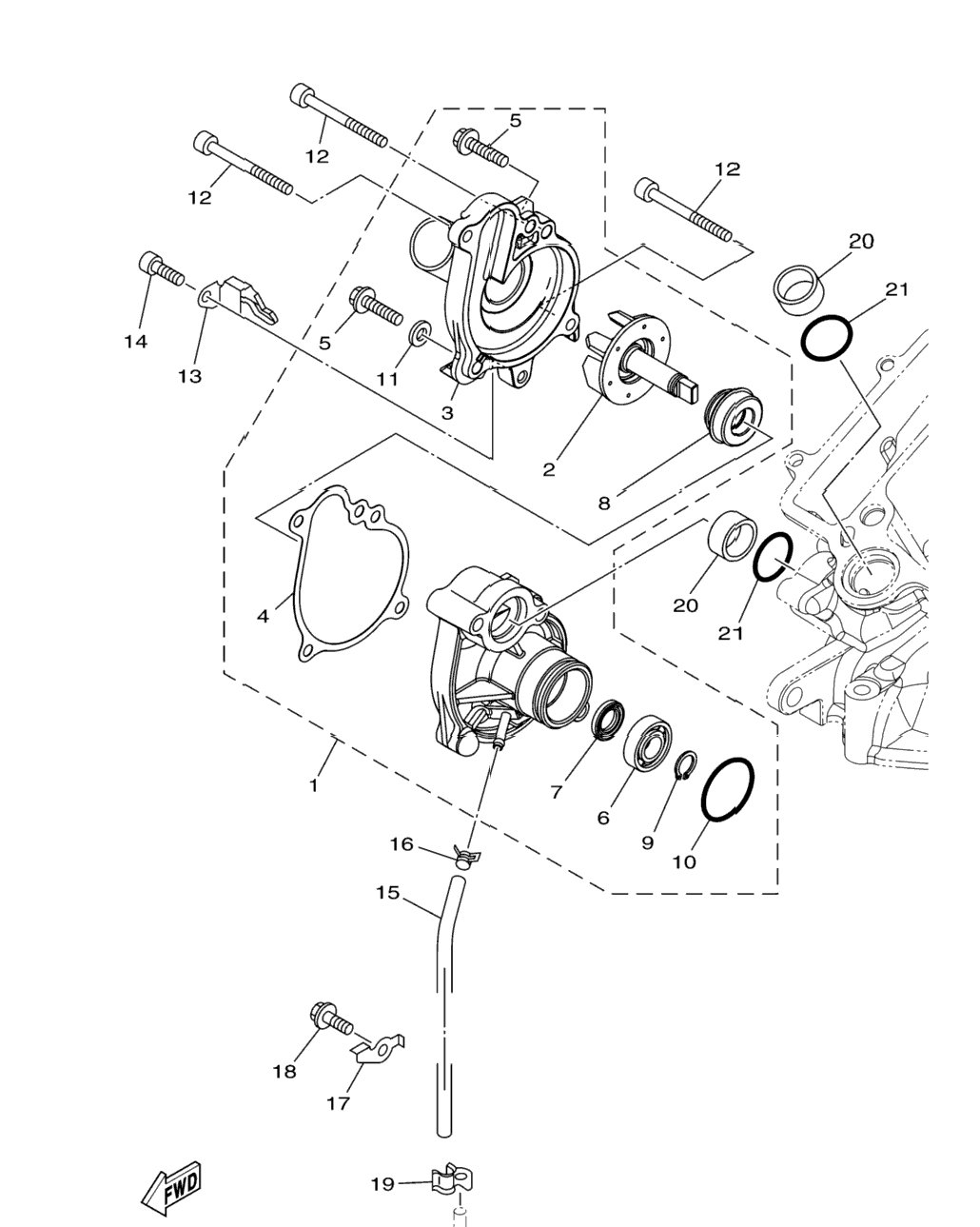

| 1 | 23P-12420-01-00 | Water Pump Assy | 1 шт. | — | |
|
| 2 | 23P-12450-00-00 | . .Impeller Shaft Assy | 1 шт. | — | |
|
| 3 | 23P-12422-01-00 | . .Cover, Housing | 1 шт. | — | |
|
| 4 | 23P-12428-00-00 | . .Gasket, Housing Cover 2 | 1 шт. | — | |
|
| 5 | 95024-06025-00 | . Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 6 | 93306-00106-00 | . .Bearing | 1 шт. | — | |
|
| 7 | 93101-12173-00 | . .Oil Seal | 1 шт. | — | |
|
| 8 | 5VK-12438-00-00 | . .Seal, Mechanical | 1 шт. | — | |
|
| 9 | 99009-12400-00 | . Circlip | 1 шт. | — | |
|
| 10 | 93210-33133-00 | . O-Ring | 1 шт. | — | |
|
| 11 | 90430-06014-00 | . Gasket | 1 шт. | — | |
|
| 12 | 90110-06351-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 13 | 90462-08095-00 | Clamp | 1 шт. | — | |
|
| 14 | 91314-06012-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 15 | 90445-07030-00 | Hose | 1 шт. | — | |
|
| 16 | 90467-070A0-00 | .Clip | 1 шт. | — | |
|
| 17 | 90462-08084-00 | Clamp | 1 шт. | — | |
|
| 18 | 95824-06016-00 | Bolt, Flange | 1 шт. | — | |
|
| 19 | 90462-10059-00 | Clamp | 1 шт. | — | |
|
| 20 | 23P-12564-00-00 | Pipe, Water | 2 шт. | — | |
|
| 21 | 93210-24001-00 | O-Ring | 2 шт. | — | |
|
