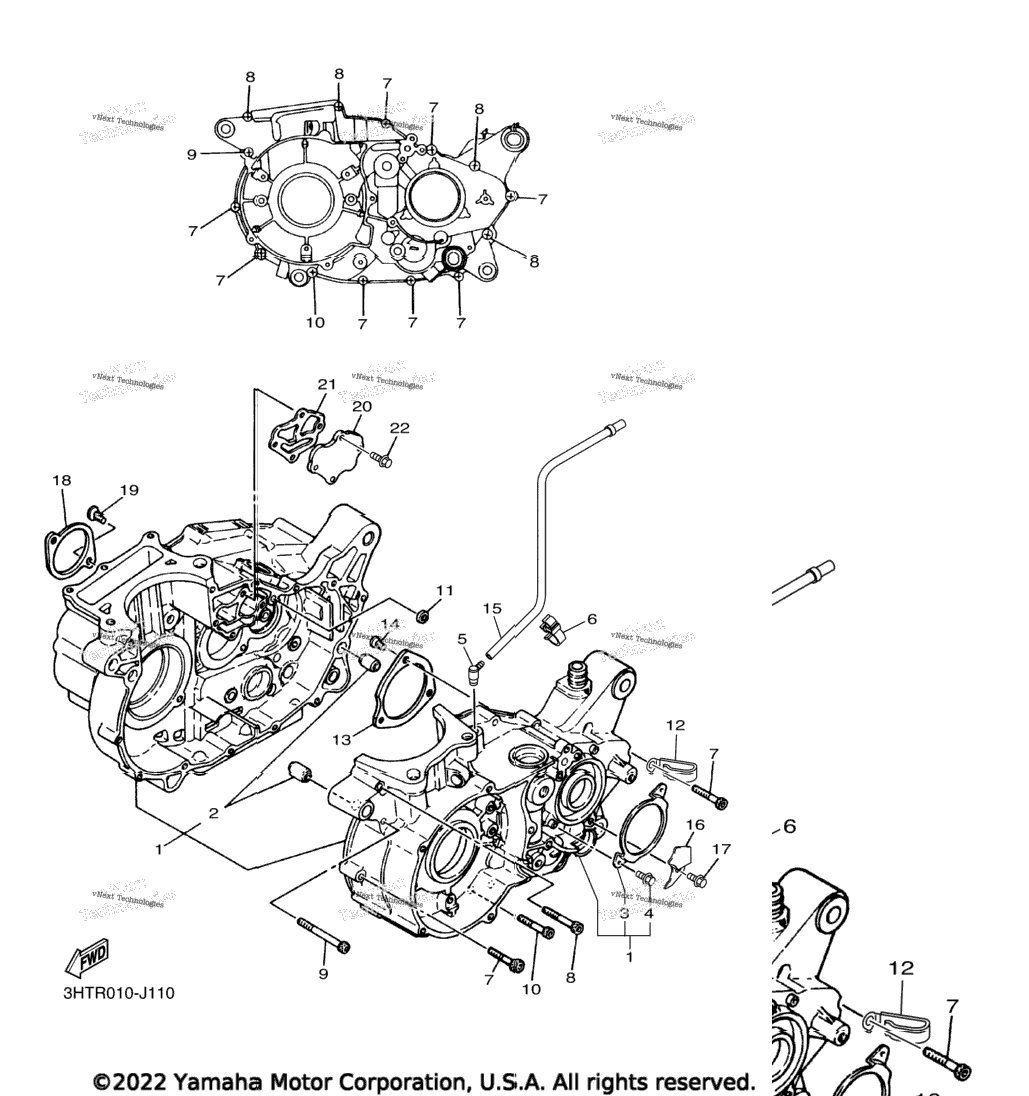

| 1 | 3HT-15100-R9-00 | Crankcase Assy | 1 шт. | — | |
|
| 2 | 99530-12016-00 | . Pin, Dowel | 2 шт. | — | |
|
| 3 | 583-17471-01-00 | . .Plate, Cover | 1 шт. | — | |
|
| 4 | 90105-06081-00 | . Bolt, Flange | 2 шт. | — | |
|
| 5 | 5UG-15371-00-00 | .Breather | 1 шт. | — | |
|
| 6 | 90464-18013-00 | Clamp | 1 шт. | — | |
|
| 7 | 91314-06035-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 8 | 91314-06045-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 9 | 91314-06065-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 10 | 91314-06055-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 11 | 90430-09121-00 | Gasket | 1 шт. | — | |
|
| 12 | 90465-08277-00 | Clamp | 1 шт. | — | |
|
| 13 | 363-15381-00-00 | Plate, Bearing Cover | 0 шт. | — | |
|
| 14 | 90149-05021-00 | Screw | 3 шт. | — | |
|
| 15 | 3HT-1531A-R0-00 | Hose, Breather 1 | 1 шт. | — | |
|
| 16 | 90465-10021-00 | Clamp | 1 шт. | — | |
|
| 17 | 95022-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 18 | 583-15383-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 19 | 90151-06024-00 | Screw, Countersunk | 2 шт. | — | |
|
| 20 | 583-15426-10-00 | Cover, Oil Pump 2 | 1 шт. | — | |
|
| 21 | 3HT-15466-00-00 | Gasket 2 | 1 шт. | — | |
|
| 22 | 90105-06187-00 | Bolt, Flange | 4 шт. | — | |
|
