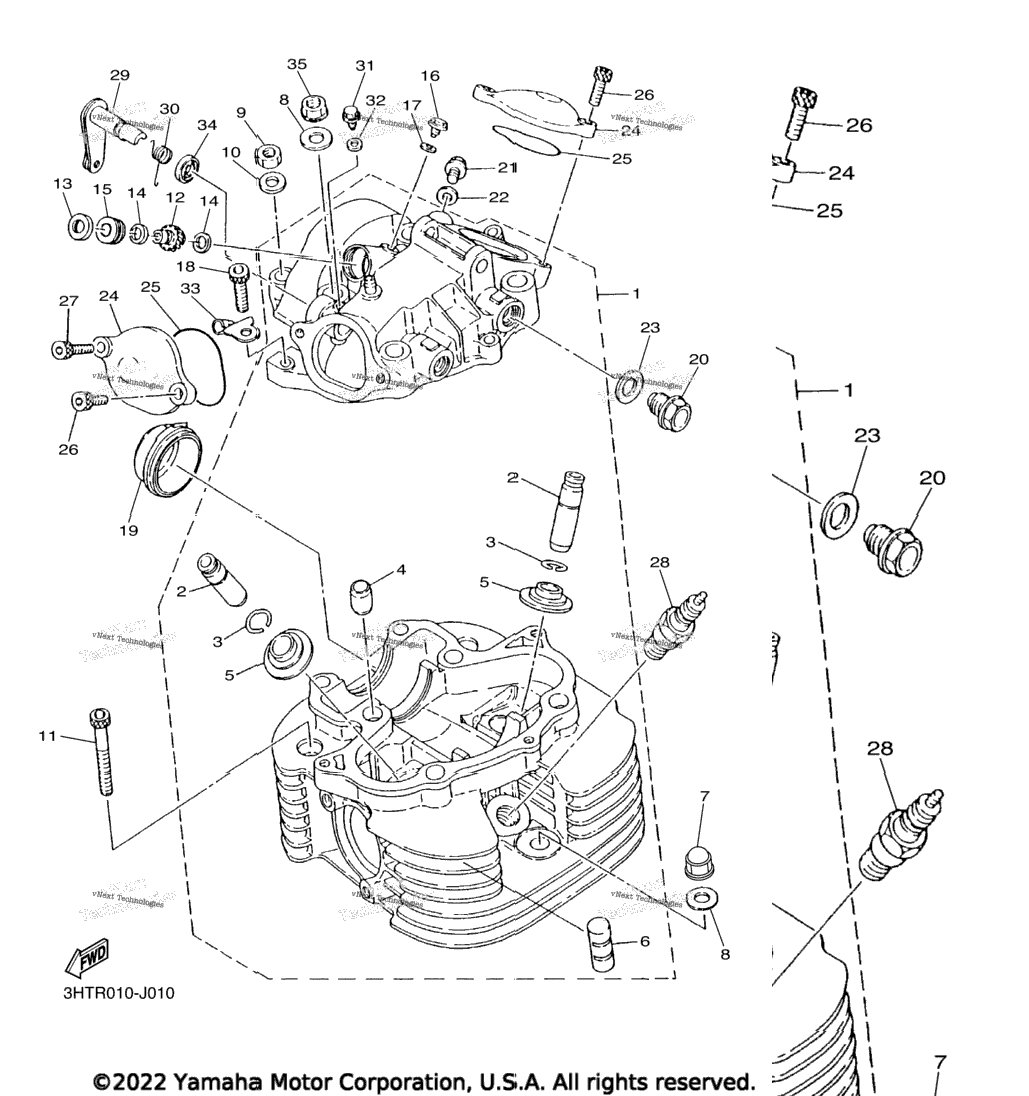

| 1 | 3HT-11101-R9-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 2 | 4X7-11133-10-00 | . .Guide, In./Ex. Valve | 2 шт. | — | |
|
| 3 | 93440-14086-00 | . .Circlip | 2 шт. | — | |
|
| 4 | 99530-14016-00 | . Pin, Dowel | 2 шт. | — | |
|
| 5 | 4X7-12116-00-00 | . .Seat, Valve Spring | 2 шт. | — | |
|
| 6 | 1JK-11127-00-00 | . .Absorber 3 | 2 шт. | — | |
|
| 7 | 90176-10005-00 | Nut, Crown | 1 шт. | — | |
|
| 8 | 90201-10124-00 | Washer, Plate | 5 шт. | — | |
|
| 9 | 95302-08600-00 | Nut, Hexagon | 2 шт. | — | |
|
| 10 | 90201-08081-00 | Washer, Plate | 2 шт. | — | |
|
| 11 | 91312-06055-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 12 | 1E6-17841-00-00 | Gear, Driven (15T) | 1 шт. | — | |
|
| 13 | 93101-08132-00 | Oil Seal | 1 шт. | — | |
|
| 14 | 90201-08587-00 | Washer, Plate | 2 шт. | — | |
|
| 15 | 1E6-17843-00-00 | Bush, Driven Gear Outer | 1 шт. | — | |
|
| 18 | 91314-06025-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 19 | 2J2-11197-00-00 | Plug, Viewer | 1 шт. | — | |
|
| 20 | 90340-14038-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 21 | 95804-08012-00 | Bolt, Flange | 0 шт. | — | |
|
| 22 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 23 | 90430-14043-00 | Gasket | 1 шт. | — | |
|
| 24 | 2J2-11186-00-00 | Cover, Cylinder Head Side 2 | 2 шт. | — | |
|
| 25 | 93210-49296-00 | O-Ring | 2 шт. | — | |
|
| 26 | 91314-06018-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 27 | 90110-06247-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 28 | 94701-00234-00 | Plug, Spark (Ngk Bpr6es) | 1 шт. | — | |
|
| 29 | 583-12288-01-00 | Cam, Decompression | 1 шт. | — | |
|
| 30 | 90508-16303-00 | Spring, Torsion | 1 шт. | — | |
|
| 31 | 90109-06276-00 | Bolt | 1 шт. | — | |
|
| 31 | 90109-06276-00 | Bolt | 1 шт. | — | |
|
| 32 | 90430-06014-00 | Gasket | 1 шт. | — | |
|
| 32 | 90430-06014-00 | Gasket | 1 шт. | — | |
|
| 33 | 583-12283-00-00 | Bracket, Decompression | 1 шт. | — | |
|
| 34 | 93104-12054-00 | Oil Seal | 1 шт. | — | |
|
| 35 | 90179-10279-00 | Nut | 4 шт. | — | |
|
