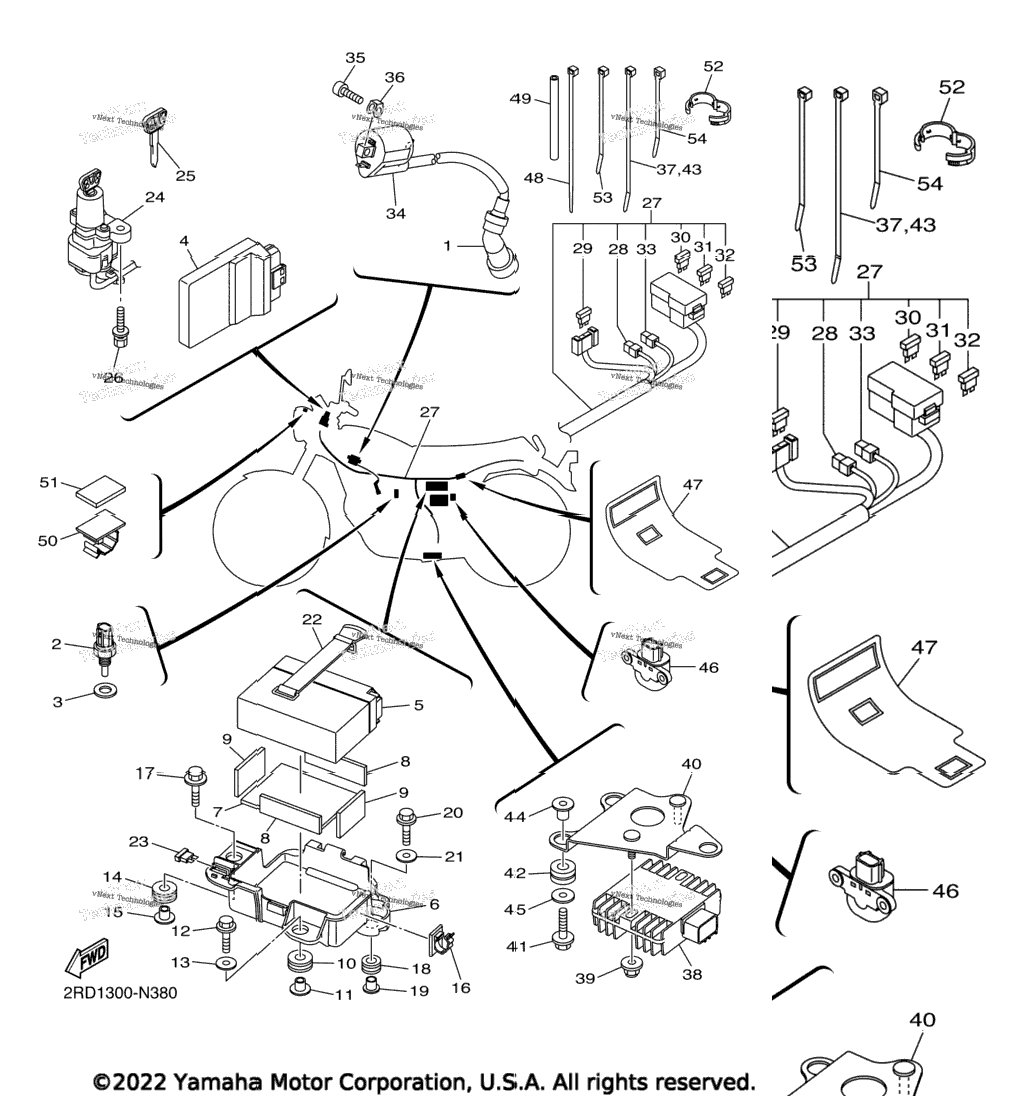

| 1 | 3NS-82370-00-00 | Plug Cap Assy | 1 шт. | — | |
|
| 2 | 4P9-83591-00-00 | Thermo Unit | 0 шт. | — | |
|
| 3 | 90201-10128-00 | Washer, Plate | 1 шт. | — | |
|
| 4 | 2RD-8591A-00-00 | Engine Control Unit Assy | 1 шт. | — | |
|
| 5 | 4JS-82100-10-00 | Battery Assy (Gs Yuasa Gt4b-5) | 1 шт. | — | |
|
| 6 | 3HT-8212B-00-00 | Box, Battery 1 | 1 шт. | — | |
|
| 7 | 90520-04005-00 | Damper, Plate | 1 шт. | — | |
|
| 8 | 7NJ-14757-00-00 | Damper, Muffler 2 | 2 шт. | — | |
|
| 9 | 5TG-84553-00-00 | Damper | 2 шт. | — | |
|
| 10 | 90480-16004-00 | Grommet | 1 шт. | — | |
|
| 11 | 90387-067K8-00 | Collar | 1 шт. | — | |
|
| 12 | 90105-06169-00 | Bolt, Flange | 1 шт. | — | |
|
| 13 | 90201-06380-00 | Washer Plain | 1 шт. | — | |
|
| 14 | 90480-16004-00 | Grommet | 1 шт. | — | |
|
| 15 | 90387-067K8-00 | Collar | 1 шт. | — | |
|
| 16 | 90464-13185-00 | Clamp | 1 шт. | — | |
|
| 17 | 90119-06138-00 | Bolt, With Washer | 1 шт. | — | |
|
| 18 | 90480-14003-00 | Grommet | 1 шт. | — | |
|
| 19 | 90387-085W0-00 | Collar | 1 шт. | — | |
|
| 20 | 90105-06169-00 | Bolt, Flange | 1 шт. | — | |
|
| 21 | 90201-06380-00 | Washer Plain | 1 шт. | — | |
|
| 22 | 7H3-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 23 | 1AE-82151-00-00 | .Fuse (30A-Bl) | 1 шт. | — | |
|
| 24 | 2RD-82501-10-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 25 | 4BH-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 26 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
| 27 | 2RD-82590-10-00 | Wire Harness Assy | 1 шт. | — | |
|
| 28 | 3XV-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 29 | 1AE-82151-00-00 | . .Fuse (30A-Bl) | 1 шт. | — | |
|
| 30 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 3 шт. | — | |
|
| 31 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 2 шт. | — | |
|
| 32 | 5JJ-82151-00-00 | . .Fuse (7.5A-Bl) | 3 шт. | — | |
|
| 33 | 3WP-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 34 | 3D8-82310-10-00 | Ignition Coil Assy | 1 шт. | — | |
|
| 35 | 91380-06020-00 | Bolt | 2 шт. | — | |
|
| 36 | 4BR-82317-00-00 | Damper, Ignition Coil | 2 шт. | — | |
|
| 37 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 38 | 4XY-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 39 | 95607-06200-00 | Nut, Self U-Flange | 2 шт. | — | |
|
| 40 | 3HT-8711E-10-00 | Stay, Rectifier | 1 шт. | — | |
|
| 41 | 95827-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 42 | 90480-14229-00 | Grommet | 3 шт. | — | |
|
| 43 | 1UA-82591-00-00 | Band | 3 шт. | — | |
|
| 44 | 90387-06158-00 | Collar | 3 шт. | — | |
|
| 45 | 90201-06063-00 | Washer, Plate | 3 шт. | — | |
|
| 46 | 3HT-82576-00-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 47 | 2D1-82589-00-00 | Protecter, Wire Harness | 0 шт. | — | |
|
| 48 | 12R-82591-00-00 | Band | 1 шт. | — | |
|
| 49 | 90445-07036-00 | Hose (L130) | 1 шт. | — | |
|
| 50 | 90464-17002-00 | Clamp | 2 шт. | — | |
|
| 51 | 5S7-28428-00-00 | Seal 1 | 2 шт. | — | |
|
| 52 | 90464-16001-00 | Clamp | 1 шт. | — | |
|
| 53 | 90464-35132-00 | Clamp | 1 шт. | — | |
|
| 54 | 90465-10098-00 | Clamp | 1 шт. | — | |
|
