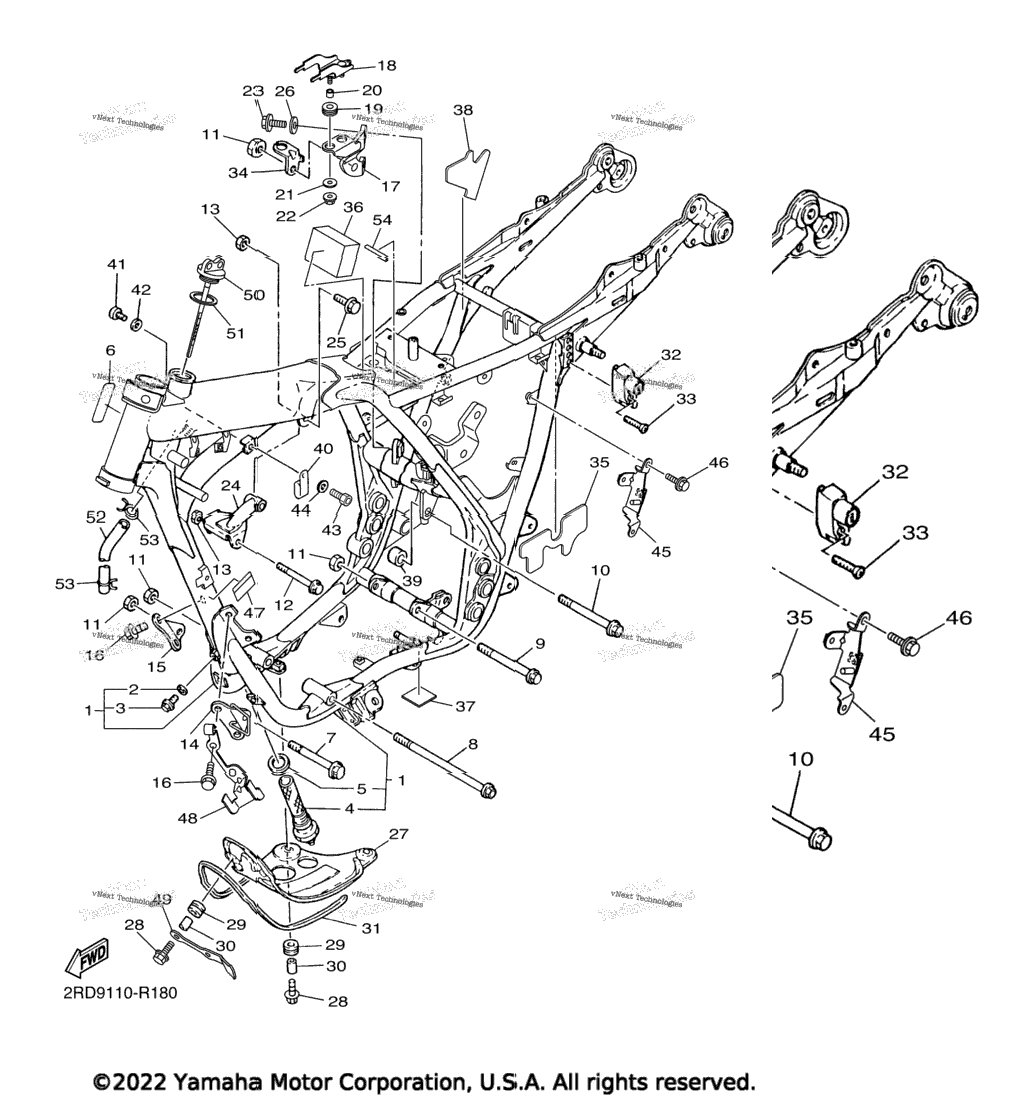

| 1 | 2RD-21110-10-00 | Frame Comp | 1 шт. | — | |
|
| 2 | 90430-08119-00 | . Gasket | 1 шт. | — | |
|
| 3 | 90105-08151-00 | . .Bolt, Flange | 1 шт. | — | |
|
| 4 | 583-21756-00-00 | . .Net, Filter | 1 шт. | — | |
|
| 5 | 90430-22123-00 | . .Gasket | 1 шт. | — | |
|
| 6 | 3D8-2117G-00-00 | Protector | 0 шт. | — | |
|
| 7 | 90105-10747-00 | Bolt, Flange | 1 шт. | — | |
|
| 8 | 90105-10370-00 | Bolt, Flange | 1 шт. | — | |
|
| 9 | 90105-10105-00 | Bolt, Flange | 1 шт. | — | |
|
| 10 | 90105-10119-00 | Bolt, Flange | 1 шт. | — | |
|
| 11 | 90185-10060-00 | Nut, Self-Locking | 4 шт. | — | |
|
| 12 | 90105-08118-00 | Bolt, Flange | 1 шт. | — | |
|
| 13 | 90185-08054-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 14 | 2J2-21315-40-00 | Stay, Engine 1 | 1 шт. | — | |
|
| 15 | 2J2-21316-10-00 | Stay, Engine 2 | 1 шт. | — | |
|
| 16 | 90105-08190-00 | Bolt, Flange | 4 шт. | — | |
|
| 17 | 3HT-21317-00-00 | Stay, Engine 3 | 1 шт. | — | |
|
| 18 | 3HT-2134V-00-00 | Bracket | 1 шт. | — | |
|
| 19 | 90480-10289-00 | Rubber Bush | 2 шт. | — | |
|
| 20 | 90387-0600V-00 | Collar | 2 шт. | — | |
|
| 21 | 90201-06063-00 | Washer, Plate | 2 шт. | — | |
|
| 22 | 95607-06200-00 | Nut, Self U-Flange | 2 шт. | — | |
|
| 23 | 90105-08129-00 | Bolt, Flange Deep Recess | 2 шт. | — | |
|
| 24 | 2J2-21318-10-00 | Stay, Engine 4 | 1 шт. | — | |
|
| 25 | 95817-08035-00 | Bolt,Flange Deep Recess | 1 шт. | — | |
|
| 26 | 90201-083P5-00 | Washer, Plate | 2 шт. | — | |
|
| 27 | 3GW-21471-00-33 | Protector, Engine (0033,Yb) YB | 1 шт. | — | |
|
| 28 | 90119-06227-00 | Bolt, With Washer | 3 шт. | — | |
|
| 29 | 90480-13275-00 | Grommet | 3 шт. | — | |
|
| 30 | 90387-060A3-00 | Collar | 3 шт. | — | |
|
| 31 | 42N-28376-00-00 | Trim | 0 шт. | — | |
|
| 32 | 4R8-21308-01-00 | Helmet Hanger Assy | 1 шт. | — | |
|
| 33 | 90151-06077-00 | Screw, Countersunk | 1 шт. | — | |
|
| 34 | 2J2-2144G-00-00 | Stay, Stop Switch | 1 шт. | — | |
|
| 35 | 3HT-2139X-01-00 | Damper | 1 шт. | — | |
|
| 36 | 3HT-2113B-00-00 | Damper | 1 шт. | — | |
|
| 37 | 3KJ-24723-00-00 | Damper, Seat | 1 шт. | — | |
|
| 38 | 3HT-2117F-10-00 | Cover | 1 шт. | — | |
|
| 39 | 2J2-21459-01-00 | Collar, Rear Engine Stay | 1 шт. | — | |
|
| 40 | 90461-08113-00 | Clamp | 1 шт. | — | |
|
| 41 | 98507-05010-00 | Screw, Pan Head | 1 шт. | — | |
|
| 42 | 92907-05600-00 | Washer, Plate | 1 шт. | — | |
|
| 43 | 97007-05010-00 | Bolt | 1 шт. | — | |
|
| 44 | 92907-05600-00 | Washer, Plate | 1 шт. | — | |
|
| 45 | 3HT-2137F-00-00 | Stay 1 | 1 шт. | — | |
|
| 46 | 95807-06012-00 | Bolt, Flange Deep Recess | 2 шт. | — | |
|
| 47 | 32C-21686-00-00 | Plate, Routing 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 48 | 2RD-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 шт. | — | |
|
| 49 | 2RD-2413X-00-00 | Plate FOR CALIFORNIA | 0 шт. | — | |
|
| 50 | 2J2-21771-10-00 | Body, Cap | 1 шт. | — | |
|
| 51 | 90430-27124-00 | Gasket | 1 шт. | — | |
|
| 52 | 90445-11289-00 | Hose (L200) | 1 шт. | — | |
|
| 53 | 90467-10008-00 | Clip | 2 шт. | — | |
|
| 54 | 5VN-24188-00-00 | Mold, Fuel Tank | 1 шт. | — | |
|
