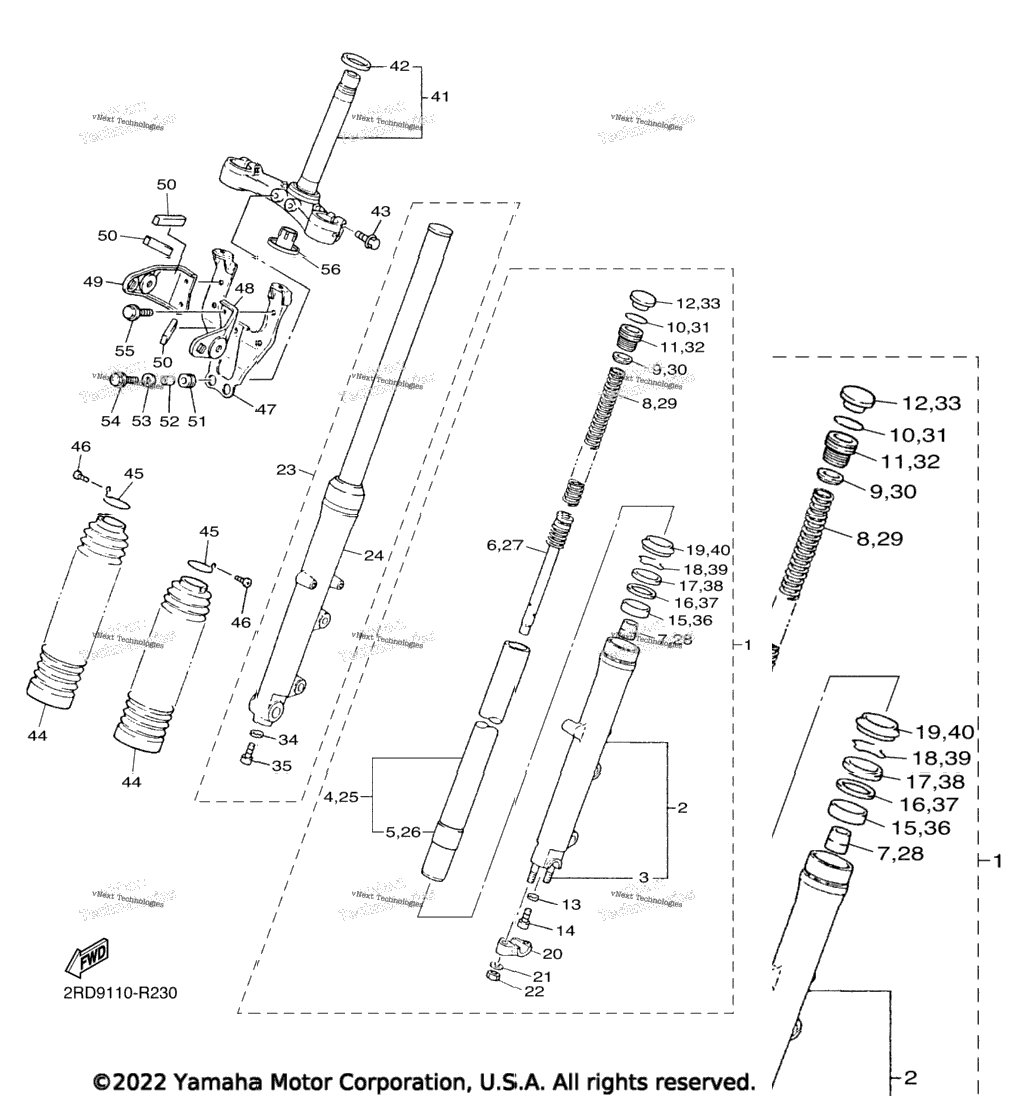

| 1 | 3HT-23102-10-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 3HT-23126-10-00 | . .Tube, Outer (L.H) | 1 шт. | — | |
|
| 3 | 90116-08261-00 | . . ..Bolt, Stud | 2 шт. | — | |
|
| 4 | 3HT-23110-10-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 5 | 5JX-23171-00-00 | . . ..Piston, Front Fork | 1 шт. | — | |
|
| 6 | 3HT-23170-10-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 7 | 5JX-23173-00-00 | . .Spindle, Taper | 1 шт. | — | |
|
| 8 | 3HT-23141-10-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 9 | 1JN-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 10 | 1T3-23114-50-00 | . .Gasket | 1 шт. | — | |
|
| 11 | 2J4-23111-30-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 12 | 1T3-23168-50-00 | . .Cap, Front Fork | 1 шт. | — | |
|
| 13 | 509-23158-L0-00 | . .Gasket (KYB) | 1 шт. | — | |
|
| 14 | 278-23181-50-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 15 | 5JX-23125-00-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 16 | 5K5-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 17 | 5JX-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 18 | 4A1-23156-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 19 | 5JX-23144-00-00 | . .Seal, Dust | 1 шт. | — | |
|
| 20 | 341-23167-50-00 | . .Holder, Axle | 1 шт. | — | |
|
| 21 | 92901-08600-00 | . .Washer, Plate | 2 шт. | — | |
|
| 22 | 3HT-23357-10-00 | . .Nut | 2 шт. | — | |
|
| 23 | 3HT-23103-10-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 24 | 3HT-23136-10-00 | . .Tube, Outer (R.H) | 1 шт. | — | |
|
| 25 | 3HT-23110-10-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 26 | 5JX-23171-00-00 | . . ..Piston, Front Fork | 1 шт. | — | |
|
| 27 | 3HT-23170-10-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 28 | 5JX-23173-00-00 | . .Spindle, Taper | 1 шт. | — | |
|
| 29 | 3HT-23141-10-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 30 | 1JN-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 31 | 1T3-23114-50-00 | . .Gasket | 1 шт. | — | |
|
| 32 | 2J4-23111-30-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 33 | 1T3-23168-50-00 | . .Cap, Front Fork | 1 шт. | — | |
|
| 34 | 509-23158-L0-00 | . .Gasket (KYB) | 1 шт. | — | |
|
| 35 | 278-23181-50-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 36 | 5JX-23125-00-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 37 | 5K5-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 38 | 5JX-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 39 | 4A1-23156-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 40 | 5JX-23144-00-00 | . .Seal, Dust | 1 шт. | — | |
|
| 41 | 3HT-23340-10-00 | Under Bracket Comp | 1 шт. | — | |
|
| 42 | 164-23462-00-00 | . .Seal, Dust | 1 шт. | — | |
|
| 43 | 95814-08035-00 | Bolt, Flange | 4 шт. | — | |
|
| 44 | 1JN-23191-00-00 | Boot GLOSS BLACK | 2 шт. | — | |
|
| 45 | 1JN-23192-00-00 | Band | 2 шт. | — | |
|
| 46 | 98506-05010-00 | Screw, Pan Head | 2 шт. | — | |
|
| 47 | 2J2-23121-04-00 | Cover, Upper 1 | 1 шт. | — | |
|
| 48 | 3HT-23131-00-00 | Stey, Headlight | 1 шт. | — | |
|
| 49 | 3HT-23174-00-00 | Stay, Headlight | 1 шт. | — | |
|
| 50 | 3HT-2317J-01-00 | Damper 1 | 3 шт. | — | |
|
| 51 | 90480-14052-00 | Rubber Bush | 2 шт. | — | |
|
| 52 | 90387-07573-00 | Collar | 2 шт. | — | |
|
| 53 | 90201-06380-00 | Washer Plain | 2 шт. | — | |
|
| 54 | 95807-06016-00 | Bolt, Flange Deep Recess | 2 шт. | — | |
|
| 55 | 95807-06012-00 | Bolt, Flange Deep Recess | 3 шт. | — | |
|
| 56 | 4KM-23123-01-00 | Cover, Under 1 | 1 шт. | — | |
|
