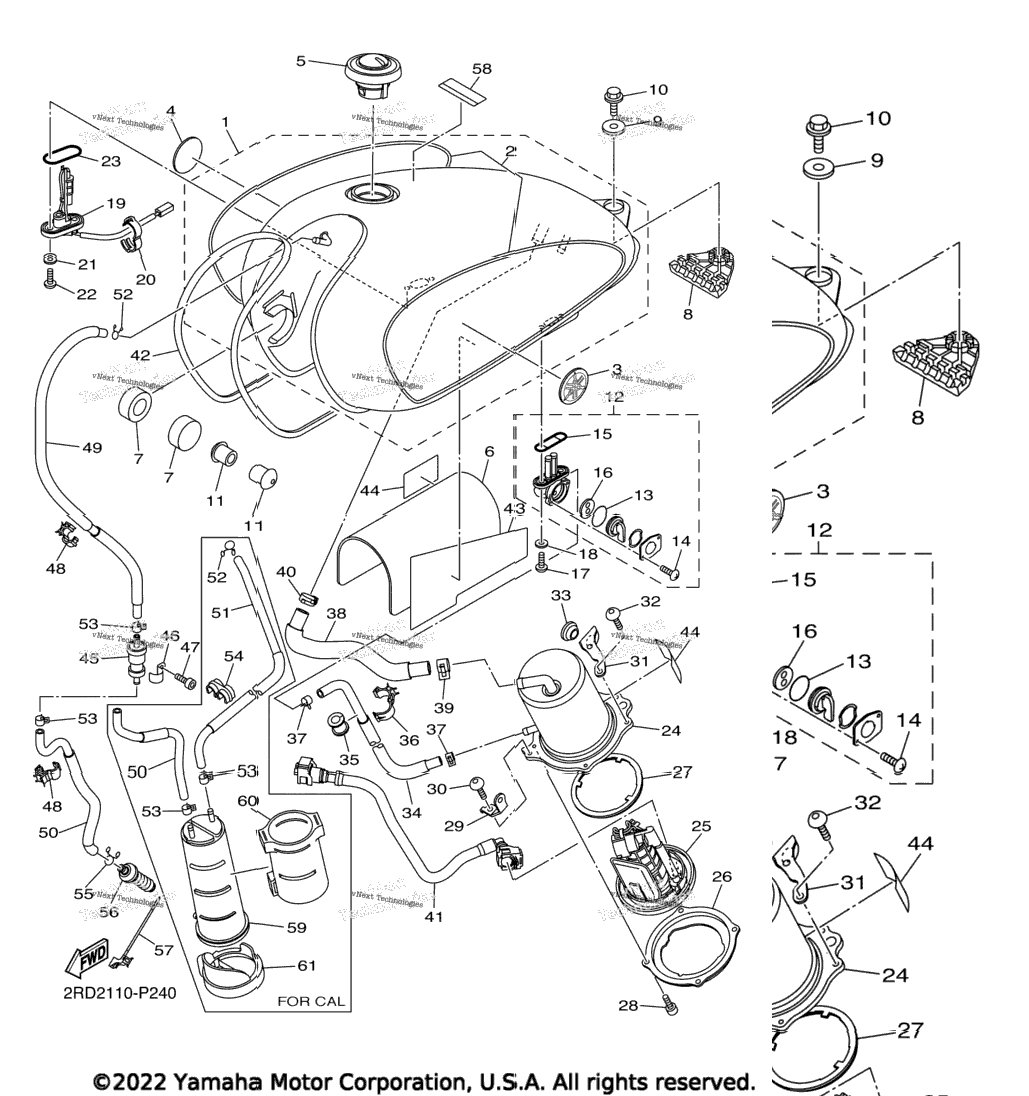

| 1 | 3HT-Y2410-10-08 | Fuel Tank Comp YB | 1 шт. | — | |
|
| 2 | 2RD-24240-60-00 | . .Graphic Set | 1 шт. | — | |
|
| 3 | 1JN-24161-10-00 | Emblem | 1 шт. | — | |
|
| 4 | 1JN-24162-10-00 | Emblem | 1 шт. | — | |
|
| 5 | 5BN-24602-10-00 | Cap Assy | 1 шт. | — | |
|
| 6 | 4NK-24602-20-00 | Cap Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 7 | 90520-03008-00 | Damper, Plate | 1 шт. | — | |
|
| 8 | 2J2-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 9 | 1J7-24182-01-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 10 | 90209-08098-00 | Washer | 1 шт. | — | |
|
| 11 | 95807-08012-00 | Bolt, Flange Deep Recess | 1 шт. | — | |
|
| 12 | 2J2-24183-01-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 13 | 4DP-24500-10-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 14 | 3AJ-24534-10-00 | . .Seal, Cock | 1 шт. | — | |
|
| 15 | 98507-03008-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 16 | 4X8-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 17 | 3AC-24523-00-00 | . .Valve Packing | 1 шт. | — | |
|
| 18 | 90149-06108-00 | Screw | 2 шт. | — | |
|
| 19 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 20 | 3HT-85752-01-00 | Sender Unit Assy, Fuel Meter | 1 шт. | — | |
|
| 21 | 90464-16001-00 | Clamp | 1 шт. | — | |
|
| 22 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 23 | 90149-06108-00 | Screw | 2 шт. | — | |
|
| 24 | 42X-85753-00-00 | Gasket, Sender Unit | 1 шт. | — | |
|
| 25 | 3HT-244A0-00-00 | Pump Case Comp | 1 шт. | — | |
|
| 26 | 3HT-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 27 | 35C-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 28 | 1S4-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 29 | 91312-05010-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 30 | 3HT-24425-00-00 | Bracket, Fuel Pump 1 | 1 шт. | — | |
|
| 31 | 92012-06010-00 | Bolt, Button Head | 1 шт. | — | |
|
| 32 | 3HT-24426-00-00 | Bracket, Fuel Pump 2 | 1 шт. | — | |
|
| 33 | 92012-06010-00 | Bolt, Button Head | 2 шт. | — | |
|
| 34 | 90480-15004-00 | Grommet | 1 шт. | — | |
|
| 35 | 2RD-24311-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 36 | 90480-20543-00 | Rubber Bush | 1 шт. | — | |
|
| 37 | 90464-20191-00 | Clamp | 1 шт. | — | |
|
| 38 | 90467-10135-00 | Clip | 2 шт. | — | |
|
| 39 | 2RD-24312-00-00 | Pipe 2 | 1 шт. | — | |
|
| 40 | 90467-160A2-00 | Clip | 1 шт. | — | |
|
| 41 | 5PX-2411M-00-00 | Clip | 1 шт. | — | |
|
| 42 | 3HT-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 43 | 3EB-24189-10-00 | Plate, Mold | 1 шт. | — | |
|
| 44 | 3HT-21735-00-00 | Seal 2 | 1 шт. | — | |
|
| 45 | 1JK-21735-00-00 | Seal 2 | 2 шт. | — | |
|
| 46 | 5PX-24180-00-00 | Roll Over Valve Assy | 1 шт. | — | |
|
| 47 | 5PX-24136-00-00 | Clamp 2 | 1 шт. | — | |
|
| 48 | 91317-05010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 49 | 90464-10190-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 50 | 90464-10190-00 | Clamp FOR U49 | 2 шт. | — | |
|
| 51 | 3HT-24313-00-00 | Pipe 3 | 1 шт. | — | |
|
| 52 | 2RD-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 шт. | — | |
|
| 53 | 3HT-24314-00-00 | Pipe 4 FOR U49 | 1 шт. | — | |
|
| 54 | 2RD-24315-00-00 | Pipe 5 FOR CALIFORNIA | 0 шт. | — | |
|
| 55 | 90467-09006-00 | Clip FOR U49 | 1 шт. | — | |
|
| 56 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 57 | 90467-090A1-00 | Clip FOR U49 | 2 шт. | — | |
|
| 58 | 90467-090A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 59 | 90464-12224-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 60 | 90467-11106-00 | .Clip | 1 шт. | — | |
|
| 61 | 5UX-24481-00-00 | Plug | 1 шт. | — | |
|
| 62 | 90464-15200-00 | Clamp | 1 шт. | — | |
|
| 63 | 1TP-2118K-A1-00 | .Label, Caution | 1 шт. | — | |
|
| 64 | 2RC-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 65 | 2RD-24181-00-00 | Damper, Locating 1 FOR CALIFORNIA | 0 шт. | — | |
|
| 66 | 2RD-2419E-00-00 | Cover, Canister FOR CALIFORNIA | 0 шт. | — | |
|
