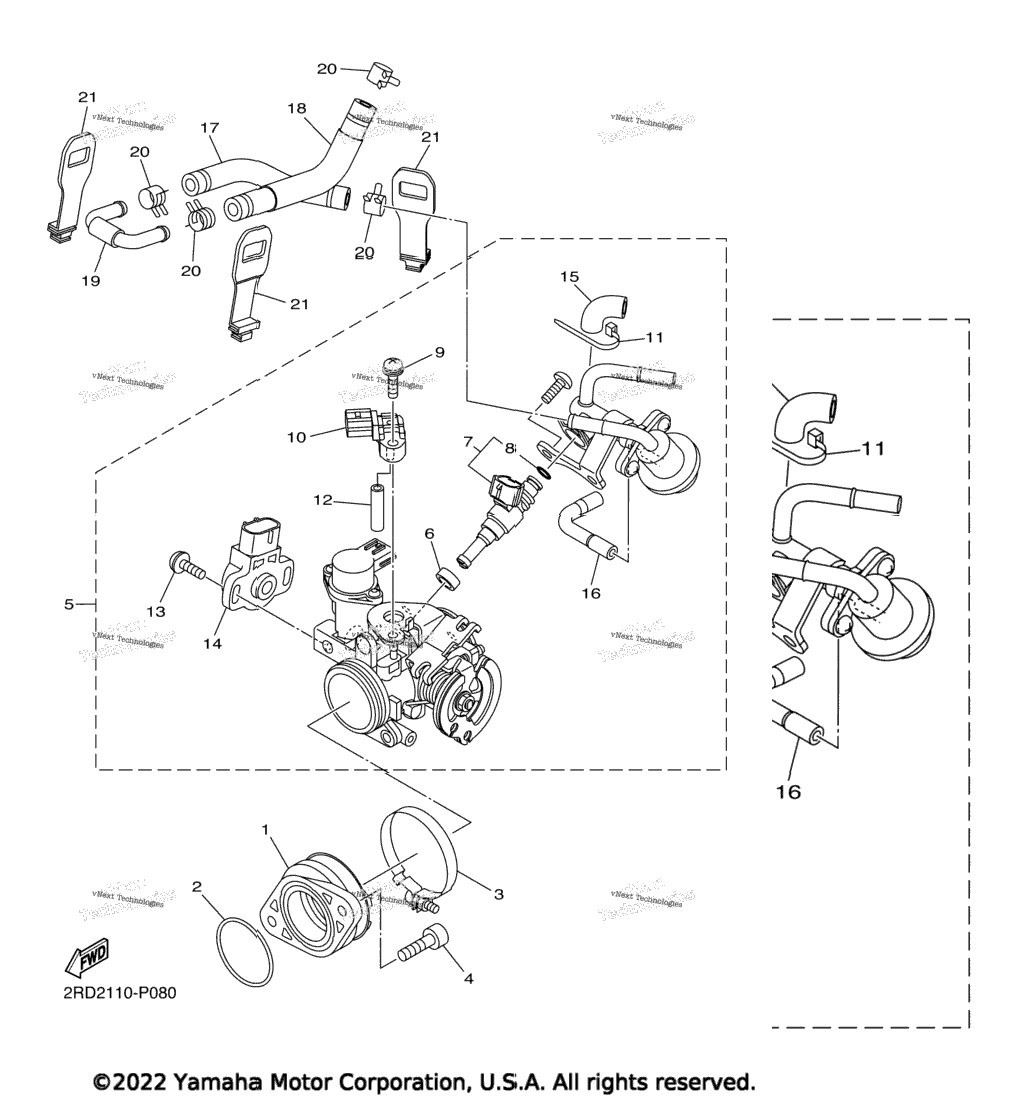

| 1 | 3HT-13586-R0-00 | Joint, Carburetor 1 | 1 шт. | — | |
|
| 2 | 93210-40659-00 | O-Ring | 1 шт. | — | |
|
| 3 | 90450-54006-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 4 | 91317-06020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 5 | 3HT-13750-R0-00 | Throttle Body Assy | 1 шт. | — | |
|
| 6 | 2RD-13750-10-00 | Throttle Body Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 7 | 8FP-13556-00-00 | . .Rubber, Injector | 1 шт. | — | |
|
| 8 | 4C8-13761-00-00 | . .Injector | 1 шт. | — | |
|
| 9 | 5PS-14147-00-00 | . . ..O-Ring | 1 шт. | — | |
|
| 10 | 2C0-14216-00-00 | . .Screw | 1 шт. | — | |
|
| 11 | 5S7-82380-00-00 | . Sensor, Pressure | 1 шт. | — | |
|
| 12 | 4KM-14137-00-00 | . .Clip | 1 шт. | — | |
|
| 13 | 5FL-14348-10-00 | . .Pipe 1 | 1 шт. | — | |
|
| 14 | 8CC-14216-10-00 | . .Screw | 2 шт. | — | |
|
| 15 | 3P6-85885-00-00 | . .Throttle Sensor Assy | 1 шт. | — | |
|
| 16 | 3D7-14987-00-00 | . .Hose | 1 шт. | — | |
|
| 17 | 3HT-13544-R0-00 | . .Hose, Vacuum Sensing 2 | 1 шт. | — | |
|
| 18 | 2RD-13972-00-00 | Pipe, Fuel 2 | 1 шт. | — | |
|
| 19 | 2RD-13973-00-00 | Pipe, Fuel 3 | 1 шт. | — | |
|
| 20 | 3HT-14389-R0-00 | Nipple Assy | 1 шт. | — | |
|
| 21 | 90467-12003-00 | Clip | 4 шт. | — | |
|
| 22 | 5JW-1479J-01-00 | Cover 2 | 3 шт. | — | |
|
