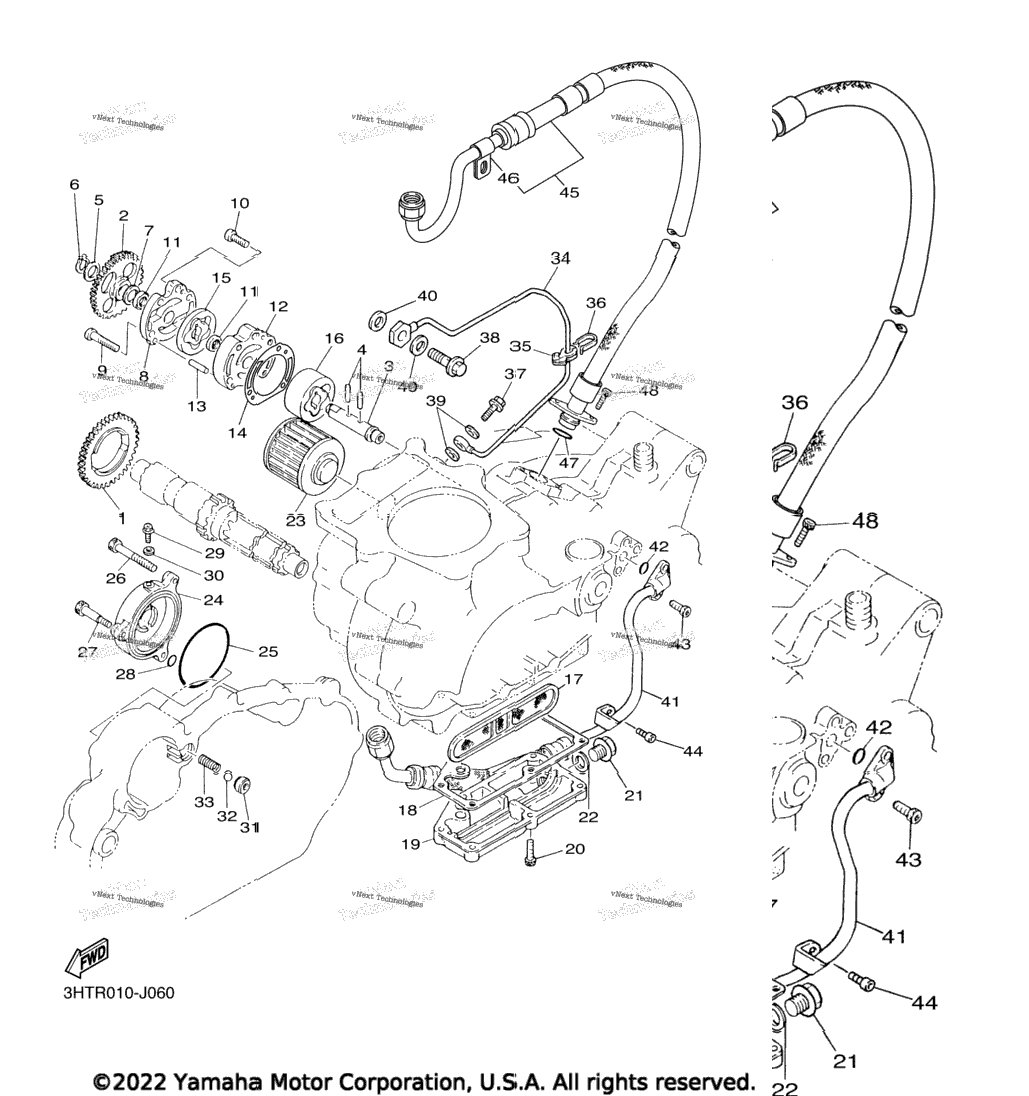

| 1 | 583-13324-00-00 | Gear, Drive (42T) | 1 шт. | — | |
|
| 2 | 583-13325-00-00 | Gear, Pump Driven (41T) | 1 шт. | — | |
|
| 3 | 583-13314-01-00 | Shaft, Pump | 1 шт. | — | |
|
| 4 | 93603-17070-00 | Pin, Dowel | 2 шт. | — | |
|
| 5 | 90201-10119-00 | Washer, Plate | 1 шт. | — | |
|
| 6 | 99009-10400-00 | Circlip | 1 шт. | — | |
|
| 7 | 90201-12166-00 | Washer, Plate | 1 шт. | — | |
|
| 8 | 583-13316-02-00 | Cover, Pump | 1 шт. | — | |
|
| 9 | 95022-06030-00 | Bolt, Flange | 3 шт. | — | |
|
| 10 | 95022-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 11 | 93104-11038-00 | Oil Seal | 2 шт. | — | |
|
| 12 | 583-13336-02-00 | Housing, Rotor | 1 шт. | — | |
|
| 13 | 93604-22050-00 | Pin, Dowel | 2 шт. | — | |
|
| 14 | 3HT-13329-00-00 | Gasket, Pump Cover | 1 шт. | — | |
|
| 15 | 583-13310-01-00 | Rotor Assy 1 | 1 шт. | — | |
|
| 16 | 583-13320-00-00 | Rotor Assy 2 | 1 шт. | — | |
|
| 17 | 583-13411-00-00 | Strainer, Oil | 1 шт. | — | |
|
| 18 | 3HT-13414-00-00 | Gasket, Strainer Cover | 1 шт. | — | |
|
| 19 | 583-13417-01-00 | Cover, Strainer | 1 шт. | — | |
|
| 20 | 91312-06020-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 21 | 90340-14132-00 | .Plug, Straight Screw | 1 шт. | — | |
|
| 22 | 214-11198-01-00 | .Gasket | 1 шт. | — | |
|
| 23 | 4X7-13440-01-00 | Element Assy, Oil Cleaner | 1 шт. | — | |
|
| 24 | 2J2-13447-00-00 | Cover, Oil Element | 1 шт. | — | |
|
| 25 | 93210-64297-00 | O-Ring | 1 шт. | — | |
|
| 26 | 91314-06060-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 27 | 90109-06511-00 | Bolt | 1 шт. | — | |
|
| 28 | 93210-07135-00 | O-Ring | 1 шт. | — | |
|
| 29 | 90149-05018-00 | Screw | 1 шт. | — | |
|
| 30 | 90430-05126-00 | Gasket | 0 шт. | — | |
|
| 31 | 583-13113-00-00 | Seat, Check Ball | 1 шт. | — | |
|
| 32 | 93503-08007-00 | Ball | 1 шт. | — | |
|
| 33 | 90501-05378-00 | Spring, Compression | 1 шт. | — | |
|
| 34 | 33Y-13161-01-00 | Pipe, Delivery 1 | 1 шт. | — | |
|
| 35 | 4X7-15485-01-00 | Clamp | 1 шт. | — | |
|
| 36 | 90468-05113-00 | Clip | 1 шт. | — | |
|
| 37 | 90401-08006-00 | Bolt, Union | 1 шт. | — | |
|
| 38 | 90401-14097-00 | Bolt, Union | 1 шт. | — | |
|
| 39 | 90430-08119-00 | Gasket | 2 шт. | — | |
|
| 40 | 90430-14043-00 | Gasket | 2 шт. | — | |
|
| 41 | 3GW-13464-01-00 | Hose, Oil 1 | 1 шт. | — | |
|
| 42 | 93210-100A9-00 | O-Ring | 1 шт. | — | |
|
| 44 | 91317-06012-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 45 | 3HT-13465-R0-00 | Hose, Oil 2 | 1 шт. | — | |
|
| 46 | 90461-10042-00 | . .Clamp | 0 шт. | — | |
|
| 47 | 93210-15171-00 | .O-Ring | 1 шт. | — | |
|
| 48 | 91314-06016-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 48 | 91314-06016-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
