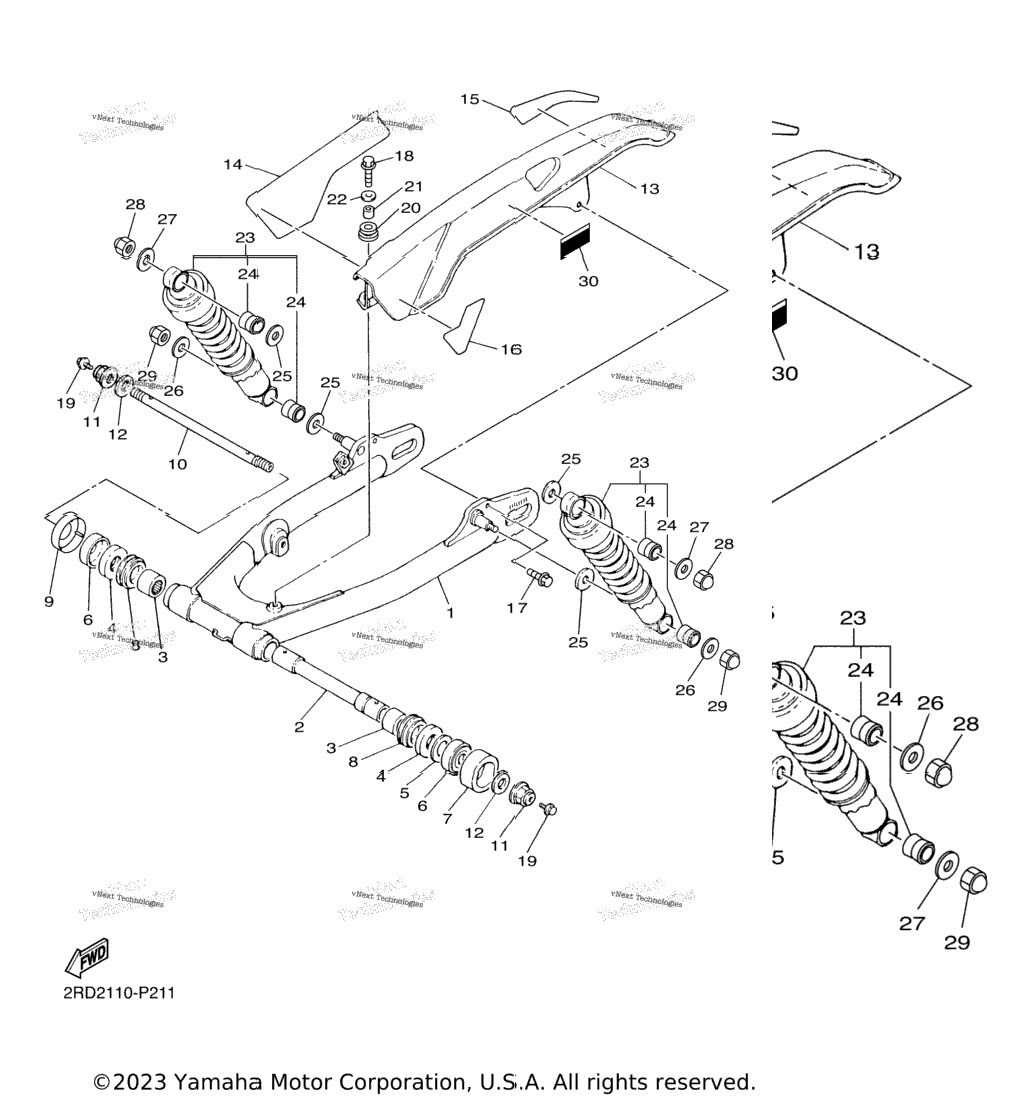

| 1 | 3H0-22110-01-00 | Rear Arm Comp YAMAHA BLACK | 1 шт. | — | |
|
| 2 | 33Y-22124-00-00 | Bush 2 | 1 шт. | — | |
|
| 3 | 93317-22208-00 | Bearing | 2 шт. | — | |
|
| 4 | 93342-22205-00 | Bearing | 2 шт. | — | |
|
| 5 | 90201-22284-00 | Washer, Plate UN | 1 шт. | — | |
|
| 6 | 2K8-22129-00-00 | Cover, Thrust 2 | 2 шт. | — | |
|
| 7 | 431-22151-03-00 | Seal, Guard | 1 шт. | — | |
|
| 8 | 93108-35004-00 | Oil Seal (35-41-8) | 2 шт. | — | |
|
| 9 | 3HT-22156-10-00 | Washer, Plate UR | 1 шт. | — | |
|
| 10 | 33Y-22141-01-00 | Shaft, Pivot | 1 шт. | — | |
|
| 11 | 95604-16100-00 | Nut, U | 2 шт. | — | |
|
| 12 | 90201-164H4-00 | Washer, Plate | 2 шт. | — | |
|
| 13 | 2J2-22311-01-00 | Case, Chain | 1 шт. | — | |
|
| 14 | 3HT-2214F-00-00 | Damper 1 | 1 шт. | — | |
|
| 15 | 3HT-2214G-00-00 | Damper 2 | 1 шт. | — | |
|
| 16 | 3HT-22358-00-00 | Seal 1 | 1 шт. | — | |
|
| 17 | 95807-06014-00 | Bolt, Flange | 1 шт. | — | |
|
| 18 | 95807-06020-00 | Bolt, Flange Deep Recess | 1 шт. | — | |
|
| 19 | 95024-06010-00 | Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 20 | 90480-13197-00 | Grommet | 1 шт. | — | |
|
| 21 | 90387-060A3-00 | Collar | 1 шт. | — | |
|
| 22 | 90201-06008-00 | Washer, Plain | 1 шт. | — | |
|
| 23 | 1JN-22210-20-00 | Shock Absorber Assy, Rear | 2 шт. | — | |
|
| 24 | 447-22216-20-00 | . .Bush, Rear Shock Absorber | 2 шт. | — | |
|
| 25 | 90201-14215-00 | Washer, Plate | 4 шт. | — | |
|
| 26 | 90201-10696-00 | Washer, Plate | 2 шт. | — | |
|
| 27 | 90201-105R9-00 | Washer, Plate | 2 шт. | — | |
|
| 28 | 90176-10009-00 | Nut, Cap | 2 шт. | — | |
|
| 29 | 90176-10073-00 | Nut, Cap | 2 шт. | — | |
|
| 30 | 2RD-21668-00-00 | Label, Tire | 1 шт. | — | |
|
