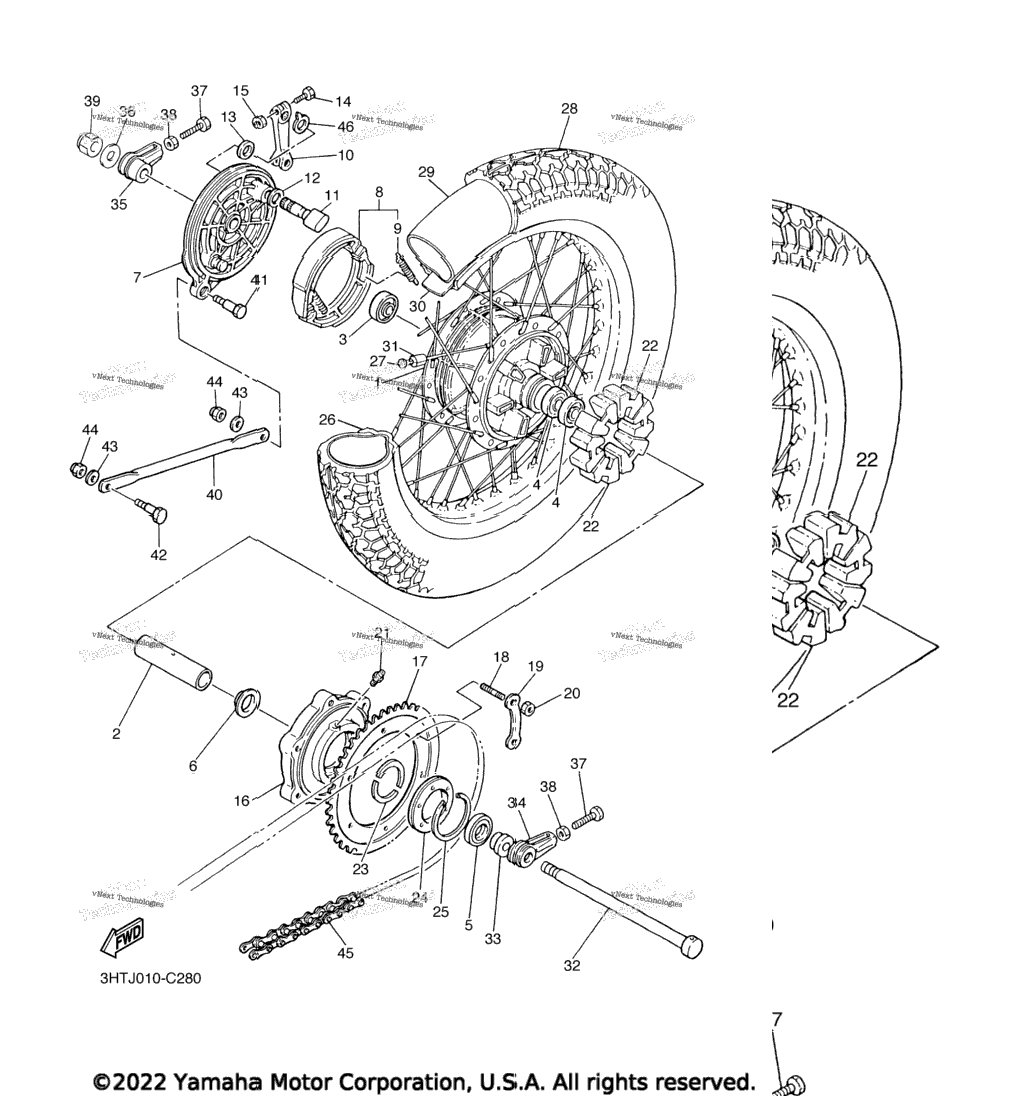

| 1 | 1E6-25311-00-38 | Hub, Rear CLP | 1 шт. | — | |
|
| 2 | 90560-17311-00 | Spacer | 1 шт. | — | |
|
| 3 | 93306-20348-00 | Bearing | 1 шт. | — | |
|
| 4 | 93306-20348-00 | Bearing | 2 шт. | — | |
|
| 5 | 93102-25061-00 | Oil Seal | 1 шт. | — | |
|
| 6 | 146-25315-00-00 | Flange, Spacer | 1 шт. | — | |
|
| 7 | 1E6-25321-12-38 | Plate, Brake Shoe CLP | 1 шт. | — | |
|
| 8 | 3GW-W253A-00-00 | Brake Shoe Kit | 1 шт. | — | |
|
| 9 | 90507-20002-00 | . .Spring, Tension | 2 шт. | — | |
|
| 10 | 2J4-25355-00-00 | Lever, Camshaft | 1 шт. | — | |
|
| 11 | 4L0-25351-00-00 | Camshaft | 1 шт. | — | |
|
| 12 | 148-25353-00-00 | Shim, Camshaft | 1 шт. | — | |
|
| 13 | 148-25359-00-00 | Seal, Camshaft | 1 шт. | — | |
|
| 14 | 90101-06278-00 | Bolt | 1 шт. | — | |
|
| 15 | 95307-06600-00 | Nut | 1 шт. | — | |
|
| 16 | 1E6-25366-00-35 | Clutch, Hub SL | 1 шт. | — | |
|
| 17 | 3HT-25456-20-00 | Sprocket, Driven (56T) | 1 шт. | — | |
|
| 18 | 90116-08218-00 | Bolt, Stud | 6 шт. | — | |
|
| 19 | 583-25412-00-00 | Washer | 3 шт. | — | |
|
| 20 | 90170-08193-00 | Nut | 6 шт. | — | |
|
| 21 | 93700-06004-00 | .Nipple, Grease | 1 шт. | — | |
|
| 22 | 2J2-25364-00-00 | Damper | 6 шт. | — | |
|
| 23 | 1E6-25318-00-00 | Stopper, Hub | 2 шт. | — | |
|
| 24 | 1E6-25319-01-00 | Seal, Hub Dust | 1 шт. | — | |
|
| 25 | 93450-78080-00 | Circlip | 1 шт. | — | |
|
| 26 | 94421-18401-00 | Rim (2.15-18) | 1 шт. | — | |
|
| 27 | 48U-25304-10-00 | Spoke Set, Rear | 1 шт. | — | |
|
| 28 | 94111-18020-00 | Tire (110/90-18M/C 61S Bt45r) BRIDGESTONE | 1 шт. | — | |
|
| 29 | 94211-18003-00 | Tube (110/90-18 Mc) BRIDGESTONE | 1 шт. | — | |
|
| 30 | 94340-18086-00 | Band, Rim (2.50-18) BRIDGESTONE | 1 шт. | — | |
|
| 31 | 3HT-25398-00-00 | Balancer, Wheel (15G) UN | 1 шт. | — | |
|
| 32 | 150-25381-02-00 | Axle, Wheel | 1 шт. | — | |
|
| 33 | 90387-17530-00 | Collar | 1 шт. | — | |
|
| 34 | 48U-25388-00-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 35 | 48U-25389-01-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 36 | 90201-164H4-00 | Washer, Plate | 1 шт. | — | |
|
| 37 | 90101-08034-00 | Bolt | 2 шт. | — | |
|
| 38 | 95304-08700-00 | Nut | 2 шт. | — | |
|
| 39 | 95604-16100-00 | Nut, U | 1 шт. | — | |
|
| 40 | 3H0-25371-00-00 | Bar, Tension | 1 шт. | — | |
|
| 41 | 90109-085G1-00 | Bolt | 1 шт. | — | |
|
| 42 | 90109-08003-00 | Bolt | 1 шт. | — | |
|
| 43 | 92903-08200-00 | Washer, Plain | 2 шт. | — | |
|
| 44 | 95607-08100-00 | Nut, U | 2 шт. | — | |
|
| 45 | 94582-34130-00 | Chain (D.I.D 428Hv2-130Le) | 1 шт. | — | |
|
| 46 | 4H7-2533A-02-00 | Plate, Indicator | 1 шт. | — | |
|
