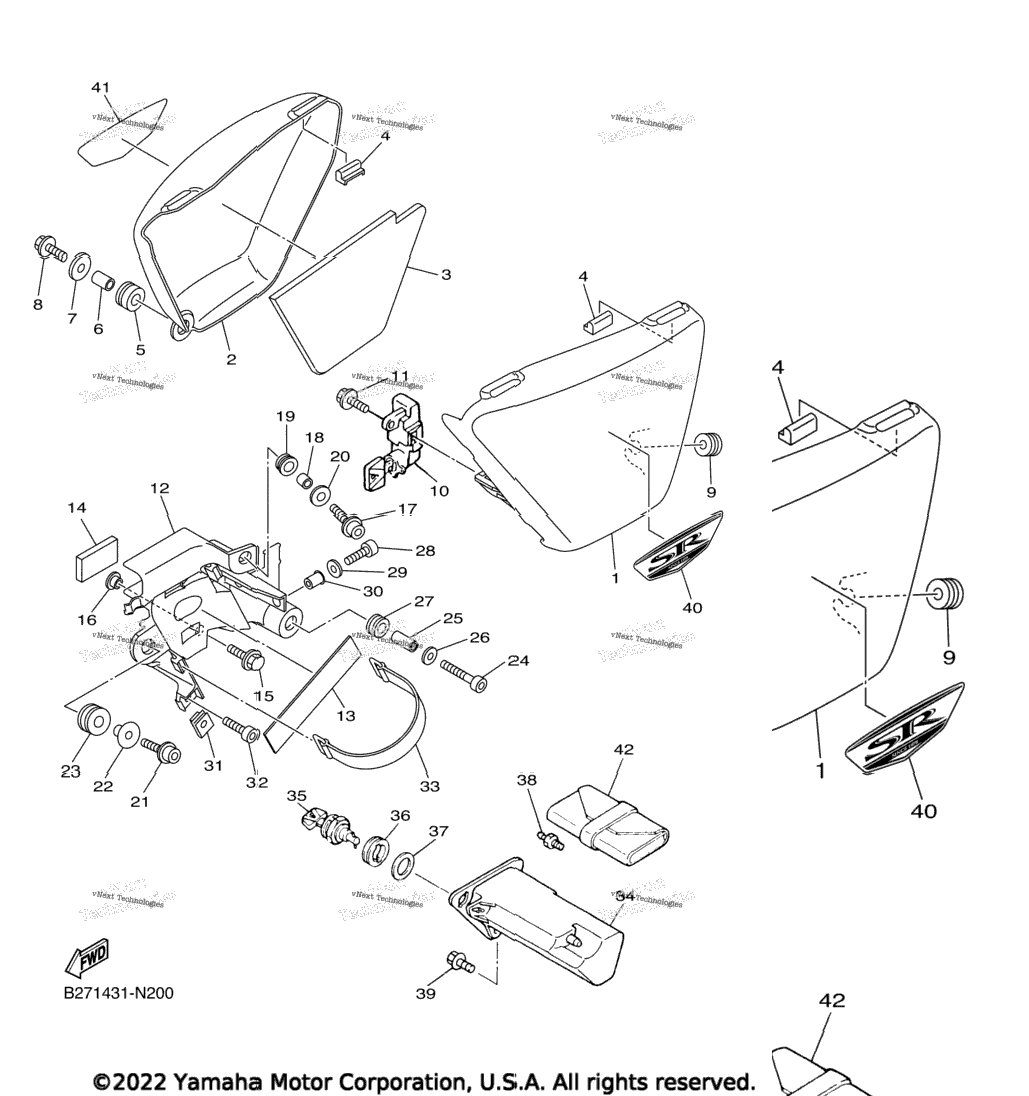

| 1 | 3HT-21711-00-33 | Cover, Side 1 YB | 1 шт. | — | |
|
| 2 | 3HT-21721-00-33 | Cover, Side 2 YB | 1 шт. | — | |
|
| 3 | 3HT-2174Y-00-00 | Damper | 1 шт. | — | |
|
| 4 | 466-21717-00-00 | Damper | 4 шт. | — | |
|
| 5 | 90480-14105-00 | Grommet | 1 шт. | — | |
|
| 6 | 90387-07393-00 | Collar | 1 шт. | — | |
|
| 7 | 90201-06380-00 | Washer Plain | 1 шт. | — | |
|
| 8 | 95807-06030-00 | Bolt, Flange | 1 шт. | — | |
|
| 9 | 90480-12236-00 | Grommet | 1 шт. | — | |
|
| 10 | 4R8-21708-01-00 | Lock Assy 2 | 1 шт. | — | |
|
| 11 | 95807-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 3HT-2177A-00-00 | Box | 1 шт. | — | |
|
| 13 | 5PX-21778-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 14 | 1TX-28371-00-00 | Damper | 1 шт. | — | |
|
| 15 | 95822-06014-00 | Bolt, Flange | 1 шт. | — | |
|
| 16 | 90387-06184-00 | Collar | 1 шт. | — | |
|
| 17 | 90110-06164-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 18 | 90387-063K3-00 | Collar | 1 шт. | — | |
|
| 19 | 90480-12003-00 | Grommet | 1 шт. | — | |
|
| 20 | 90201-06104-00 | Washer, Plate | 1 шт. | — | |
|
| 21 | 90110-06164-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 22 | 90387-077M3-00 | Collar | 1 шт. | — | |
|
| 23 | 90480-14452-00 | Grommet | 1 шт. | — | |
|
| 24 | 91312-06035-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 25 | 90387-06045-00 | Collar | 1 шт. | — | |
|
| 26 | 90201-06104-00 | Washer, Plate | 1 шт. | — | |
|
| 27 | 90480-14003-00 | Grommet | 1 шт. | — | |
|
| 28 | 91312-05020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 29 | 92902-05600-00 | Washer, Plate | 2 шт. | — | |
|
| 30 | 90179-05633-00 | Nut | 2 шт. | — | |
|
| 31 | 90183-060A1-00 | .Nut, Spring | 1 шт. | — | |
|
| 32 | 91312-06016-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 33 | 133-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 34 | 48U-21248-00-00 | Box | 1 шт. | — | |
|
| 35 | 5A8-21708-00-00 | Lock Assy 2 | 1 шт. | — | |
|
| 36 | 90480-24186-00 | Rubber Bush | 1 шт. | — | |
|
| 37 | 90201-225A4-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 38 | 93700-06004-00 | .Nipple, Grease | 1 шт. | — | |
|
| 39 | 90119-06044-00 | Bolt, With Washer | 1 шт. | — | |
|
| 40 | 2RD-21781-00-00 | Emblem 1 | 1 шт. | — | |
|
| 41 | 2RD-21781-00-00 | Emblem 1 | 1 шт. | — | |
|
| 42 | 3GW-28100-01-00 | Tool Kit | 1 шт. | — | |
|
