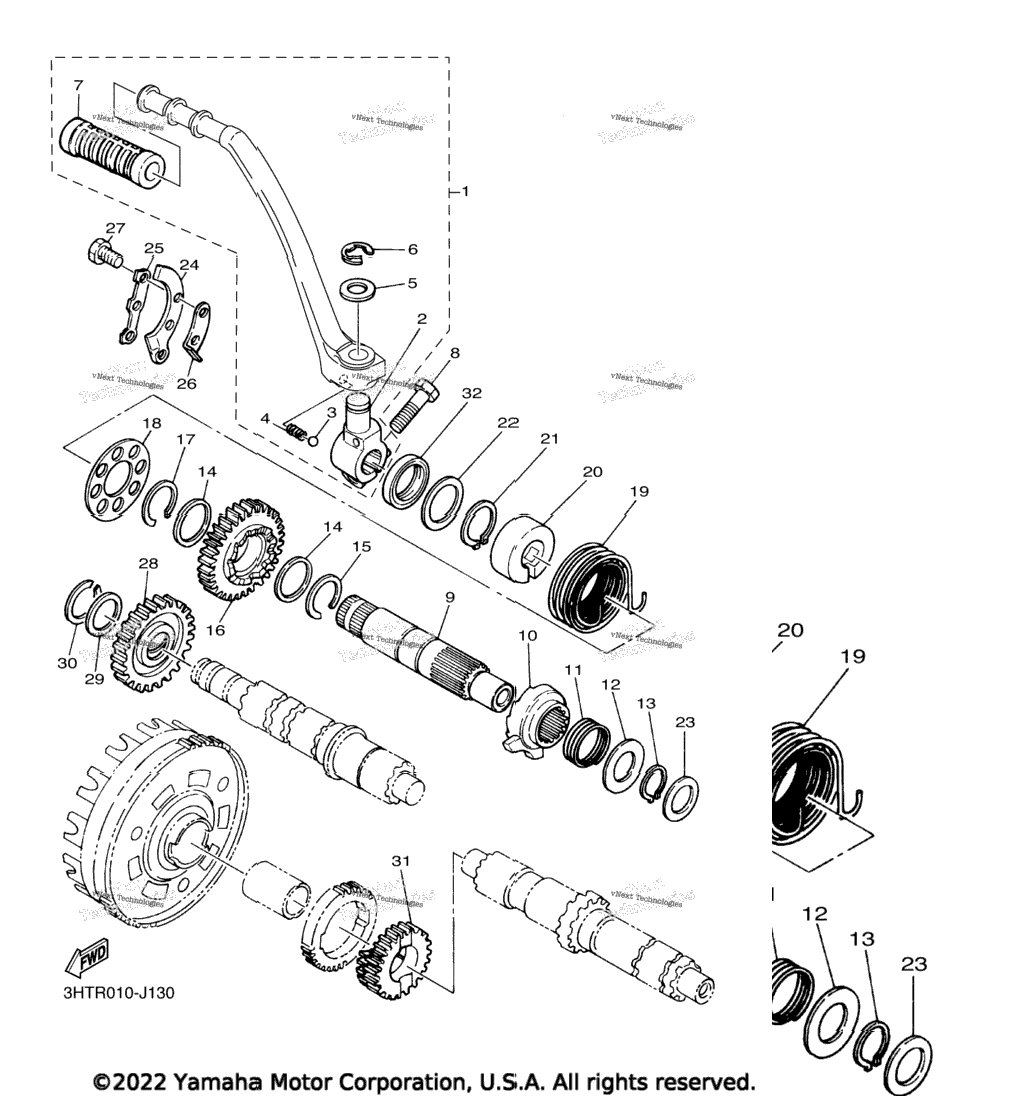

| 1 | 3HT-15610-R0-00 | Kick Crank Assy | 1 шт. | — | |
|
| 2 | 583-15621-00-00 | . .Boss, Kick Crank | 1 шт. | — | |
|
| 3 | 93507-32009-00 | . .Ball | 1 шт. | — | |
|
| 4 | 90501-12081-00 | . .Spring, Compression | 1 шт. | — | |
|
| 5 | 90201-15234-00 | . .Washer, Plate | 1 шт. | — | |
|
| 6 | 99001-10600-00 | . Circlip | 1 шт. | — | |
|
| 7 | 1T1-15618-00-00 | . .Cover, Kick Lever | 1 шт. | — | |
|
| 8 | 97024-08030-00 | Bolt | 1 шт. | — | |
|
| 9 | 583-15661-00-00 | Axle, Kick | 1 шт. | — | |
|
| 10 | 583-15671-00-00 | Wheel, Ratchet | 1 шт. | — | |
|
| 11 | 90501-23143-00 | Spring, Compression | 1 шт. | — | |
|
| 12 | 363-15676-00-00 | Cover, Spring | 1 шт. | — | |
|
| 13 | 99009-19400-00 | Circlip | 1 шт. | — | |
|
| 14 | 90201-253K0-00 | Washer, Plate (T=1.0) | 2 шт. | — | |
|
| 15 | 93440-25020-00 | Circlip | 1 шт. | — | |
|
| 16 | 583-15641-00-00 | Gear, Kick (29T) | 1 шт. | — | |
|
| 17 | 93440-25084-00 | Circlip | 1 шт. | — | |
|
| 18 | 583-15676-00-00 | Cover, Spring | 0 шт. | — | |
|
| 19 | 90508-32280-00 | Spring, Torsion | 1 шт. | — | |
|
| 20 | 90560-25154-00 | Spacer | 0 шт. | — | |
|
| 21 | 99009-25400-00 | Circlip | 1 шт. | — | |
|
| 22 | 90201-25290-00 | Washer, Plate | 1 шт. | — | |
|
| 23 | 90201-20278-00 | Washer, Plate | 1 шт. | — | |
|
| 24 | 583-15674-00-00 | Guide, Ratchet Wheel | 1 шт. | — | |
|
| 25 | 363-15686-00-00 | Washer, Lock | 1 шт. | — | |
|
| 26 | 434-15668-00-00 | Stopper | 1 шт. | — | |
|
| 27 | 97022-06016-00 | Bolt, Hexagon | 3 шт. | — | |
|
| 28 | 583-15651-00-00 | Gear, Sprocket Idle (27T) | 1 шт. | — | |
|
| 29 | 90201-17255-00 | Washer, Plate | 1 шт. | — | |
|
| 30 | 99009-17400-00 | .Circlip | 1 шт. | — | |
|
| 31 | 3HT-15631-00-00 | Gear, Kick Pinion (19T) | 1 шт. | — | |
|
| 32 | 93102-25064-00 | Oil Seal | 1 шт. | — | |
|
